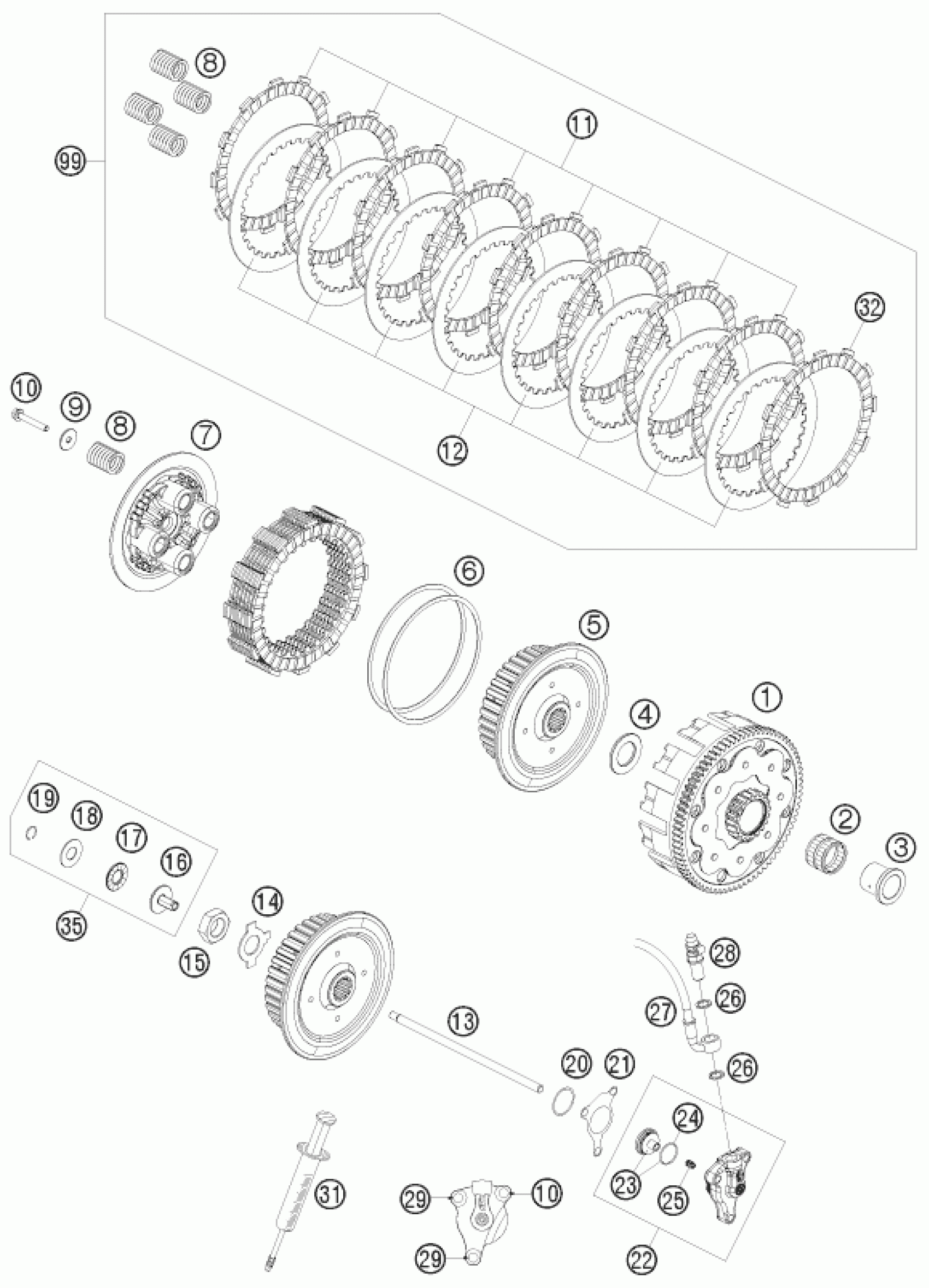

KTM 450 XC-W 2009 CLUTCH Diagram

#

Description
Price

1

CLUTCH CAGE CPL. 08

78032001000

$624.01

2

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

3

INNER RING

78032015000

$27.48

4

STOP DISC 08

78032020000

$10.18

5

INNER CLUTCH HUB

78032002200

$160.62

6

JUDDER SPRING CPL.

78032009000

$46.18

7

PRESSURE PLATE

78032003100

$113.03

8

CLUTCH SPRING 08

78032005000

$12.05

9

WASHER 6,5 X 20 X 2

58432081000

$3.08

10

HH collar screw M6x30 TX30

0025060306

$3.08

11

LINING DISC 08

78032011000

$37.11

12

FRICTION PLATE STEEL

78032010100

$13.27

13

PUSH ROD L=186

78032054100

$8.29

14

RETAINING PLATE

77332018000

$4.11

15

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

16

PRESSURE PIECE

78032057000

$26.08

17

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

18

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

19

CIRCLIP DIN7993-RW12

0993012000

$3.08

20

O-ring 30x1.5 NBR 70

0770300015

$2.05

21

GASKET FOR SLAVE CYLINDER

59032065000

$5.60

22

OUTPUT CYLINDER CPL. 06

54832061044

$137.44

23

PISTON CPL.

54832066000

$68.43

24

O-RING

54832067000

$3.08

25

PRESSURE SPRING

54832069000

$12.05

26

sealing ring DIN 7603 10x14x1

0603100141

$2.05

27

CLUTCH PIPE 06

54832063000

$100.32

28

BLEEDER SCREW CPL. 05

62513020000

$27.48

29

HH collar screw M6x20 TX30

0025060206

$3.08

31

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

32

LINING DISC TURNED OFF

78032111100

$84.52

35

PRESSURE PIECE CPL. 08

78032057044

$26.08

99

CLUTCH-KIT 400-450 EXC 09-11

78032011110

$306.30
