Description

Price

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALINGLIP

54601084200

$19.35

34

TOP TRIPLE CLAMP D=54MM 09

5940103401930

$223.74

1

FORK KTM 450/530EXC/XC-W 2009

14187E0601

$2,122.97

3

HH collar screw M8x25

0025080256

$2.05

4

HH collar screw M8x35 TX40

0025080356

$4.11

5

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

6

AH SCREW DIN6912-M10X35 10.9

0912100356

$4.11

9

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

8

O-RING 25X3,55 NBR70 05

0770025035

$1.49

32

BOT. TRI. CLAMP CPL. X=19MM 09

7800103201930

$276.00

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

CLAMP FOR SPEED CABLE D=6MM 08

7800108500004

$3.15

86

STEERING HEAD COVER

54201086000

$8.50

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROTECTIO LE+RI ORAN.08

7800109400004

$30.94

39

Handlebar mount D28mm-H37mm

59401039037

$34.12

38

HANDLEBAR CLAMP 28MM 05

59401038000

$25.05

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable

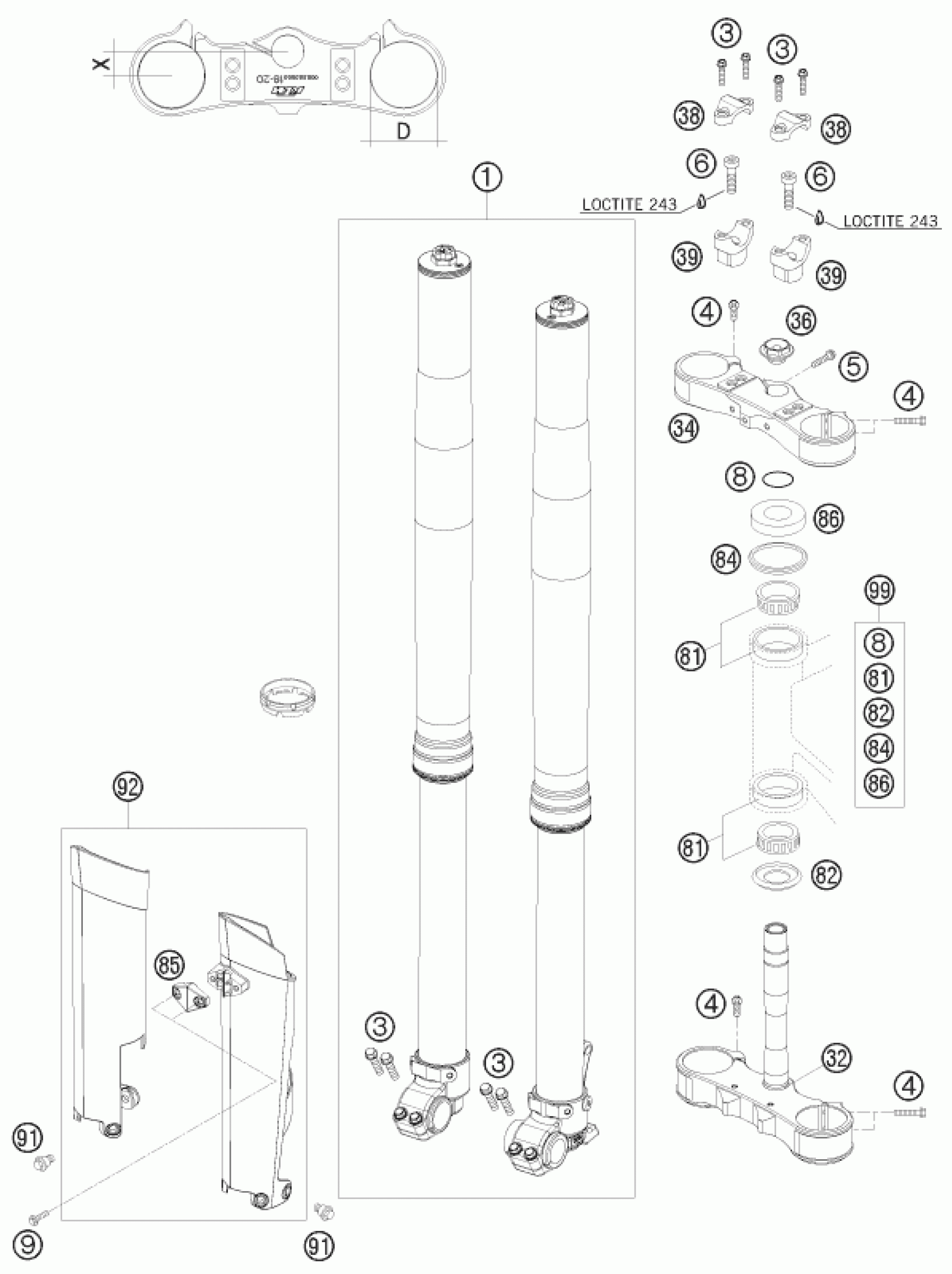

KTM 450 XC-W 2009 FRONT FORK, TRIPLE CLAMP Diagram
