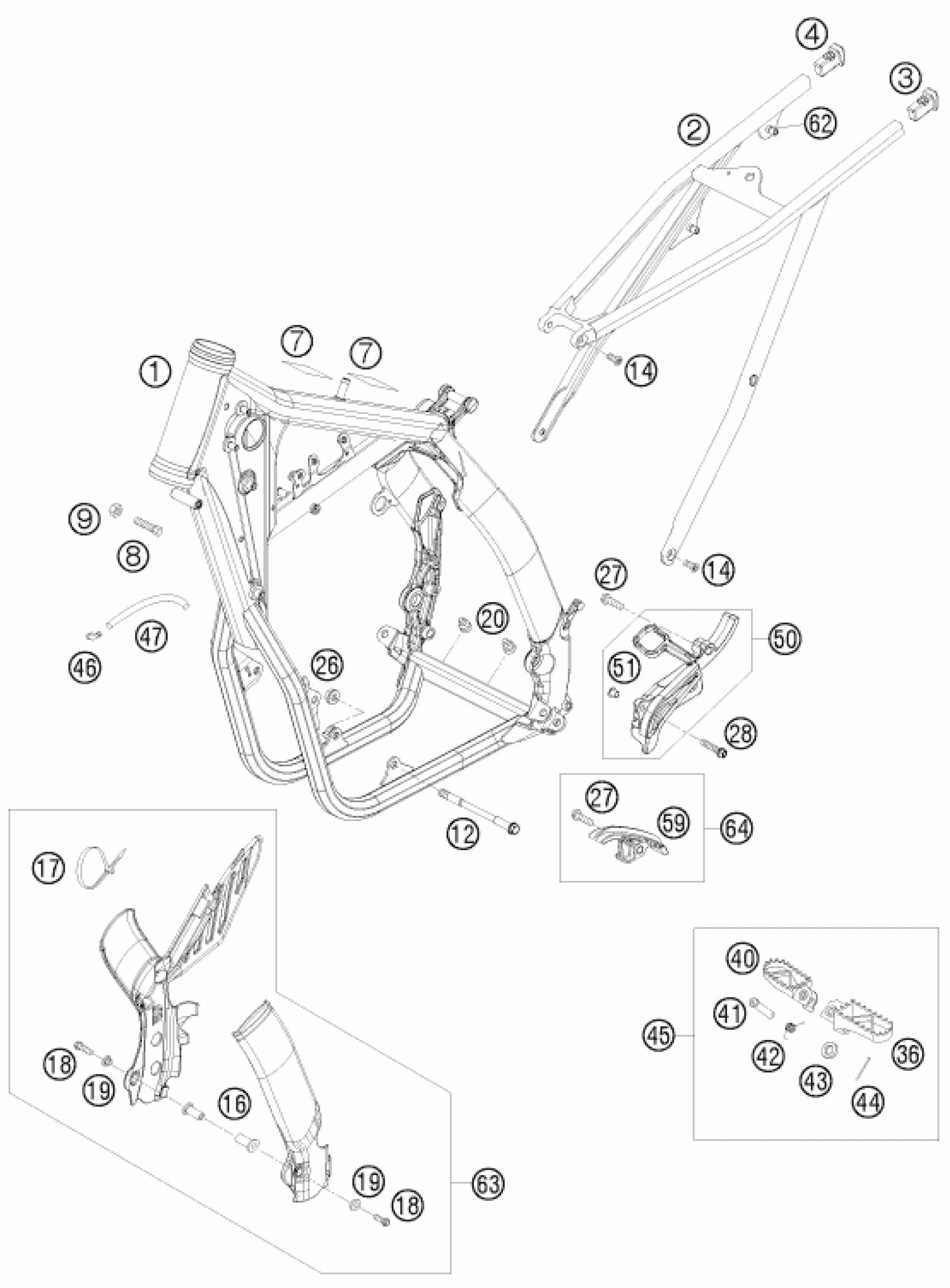

KTM 450 XC-W 2009 FRAME Diagram
#
Description
Price
1
FRAME EXC ''DC09'' 09
7800300130030
$1,043.18
2
SUB FRAME SX ''Q7'' 07
77303002000
$379.79
3
SUB FRAME APPLICAT. LEFT 08
78003002010
Unavailable
4
SUB FRAME APPLICATION R/S 08
78003002020
Unavailable
7
ADH. FOIL TRANSP. 80X80 MM 04
50307012000
$2.05
8
SPECIAL SCREW M8X26 WS=10
59001037000
$3.08
9
Hexagon nut DIN934 M8
0934080003
$2.05
10
STEERING HEAD LOCK 08
78003035000
$20.94
12
Enginebrac. screw M10X123 WS=1
59003013000
$9.44
14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
$2.05
16
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
$5.23
17
CABLE TIE 300/4,8MM BLACK
44011076305
$2.05
18
COU.SUNK SCR. AH ISO7380 M5X25
0738050250
$1.49
19
Bush f. frame protection 03
54803092060
$4.11
20
PLASTIC CAP SFL10
54403135000
$2.05
26
SELF LOCKING NUT M10 CU WS=14
54310086100
$2.05
27
HH collar screw M8x30
0025080306
$3.08
28
HH collar screw M6x35 TX30
0025060356
$3.08
36
FOOT PEG L/S SILVER 02
59003040250
$43.66
40
FOOT PEG R/S SILVER 02
59003041250
$43.66
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
$12.43
42
FOOTREST SPRING L/S & R/S
54603041000
$5.23
43
washer DIN 125 A 10.5
0125100003
$2.05
44
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
45
FOOTPEG L.+R. CPL. 03
5030314013390
$167.45
46
ANGLE PIECE '97
50303089000
$5.23
47
HOSE EPA D=6/10 L=2000MM
78015019000
Unavailable
50
CHAIN SPR. COV. 450/525 EXC-F
78003096000
$13.94
51
spacer bushing for speedometer
58314060050
$5.23
59
Chain sliding piece, bottom
77303053000
$9.44
62
BLIND RIVET NUT EM6-60LF/HX
77303139000
Unavailable
63
PLASTIC FRAME PROTECTION SET
77303094100
$28.89
64
CHAIN SLIDING KIT BELOW CPL07
77303053010
$11.49
