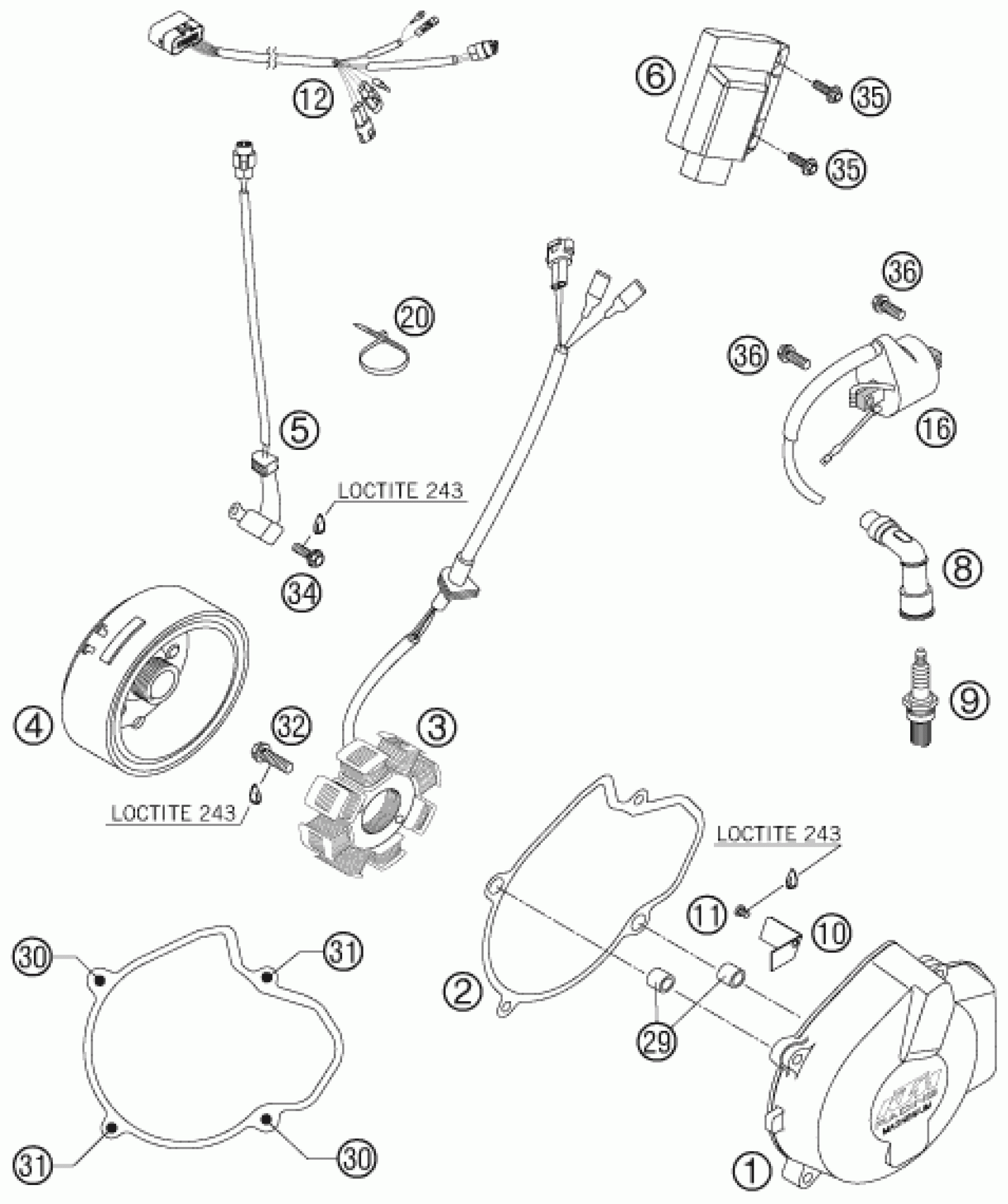

KTM 450 XC-W 2007 IGNITION SYSTEM Diagram

#

Description
Price

5

pulse generator KOKUSAN 4K3-A/

59039034000

$89.28

6

CDI UNIT 450 EXC 2005

59439031000

$178.82

8

SPARK PLUG CONNECT. VD05EG03

59039090100

$37.56

9

SPARK PLUG NGK DCPR8E 03

59039093100

$7.00

10

SUPPORT FOR WIRE

59030002050

$4.10

11

CYL.HEAD SCREW DIN0084-M 4X 6A

0084040063

$1.49

12

WIRING HARNESS FOR CDI EXC 04

59439032100

$88.54

16

IGNITIONCOIL ''IG5128''

59039006000

$66.19

20

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

29

DOWEL 9,8 X 7 X 10

49030090000

$2.05

30

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

31

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

32

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

34

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

35

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

36

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

3

STATOR 4-K3-B 05

59039104200

$181.84

4

FLYWHEEL 4K3B RACING 2004

59039105200

$239.11

1

IGNITION COVER 4K3B 2000

59030002000

$106.58

2

IGNITION COVER GASKET 0,8MM

59030040000

$13.46
