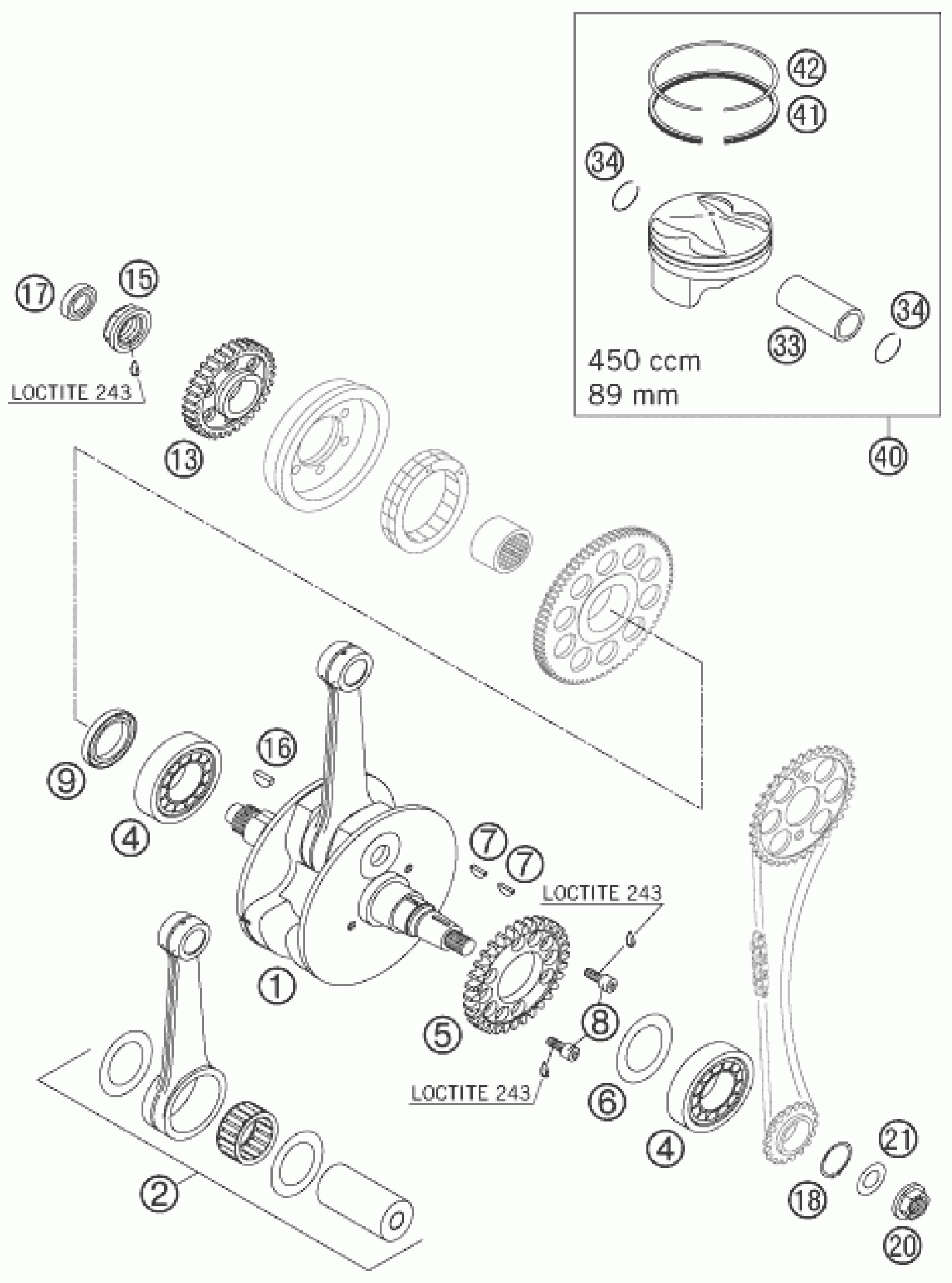

KTM 450 XC-W 2007 CRANKSHAFT, PISTON Diagram

#

Description
Price

17

radial shaft seal 14x24x6 B

0760142460

$9.25

18

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

20

COLLAR NUT M12X1 R/S

49030021000

$2.05

21

SPRING WASHER DIN0137-B12

0137120000

$1.49

33

PISTON PIN BOLT 20X15,8/12X50

59030033000

$18.01

34

CIRCLIP C20X1,5

59030074000

$2.05

40

PISTON CPL. 450 D=89MM SI.1 03

59430007000 I

$228.76

40

PISTON CPL. 450 D=89MM SI.2 03

59430007000 II

$224.55

41

OIL SCRAPER RING 89/81,5X3

59530031000

$24.77

42

RECTANGULAR RING 89MM

57530032000

$45.99

1

CRANKSHAFT CPL. 07

59030118000

$857.48

2

CON.ROD REP.SET 250/520 RAC.00

59030015044

$490.77

4

CYL.ROLLER BEAR.NJ206 ET2XCS46

50330082000

$83.21

5

DRIVE GEAR 32-T F.BALANC.SHAFT

59030055000

$91.24

6

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

6

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

6

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

7

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

8

AH SCREW DIN7984-M 6X16

0984060162

$1.49

9

SH.SEAL RING 30X47X7 BSL VITON

0760304772

$20.37

13

PRIMARY GEAR 33-T

59032000033

$126.59

15

HH NUR M20X1,5 WS=27 LEFT

59030029100

$6.96

16

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05
