SHOCK ABSORBER DISASSEMBLED

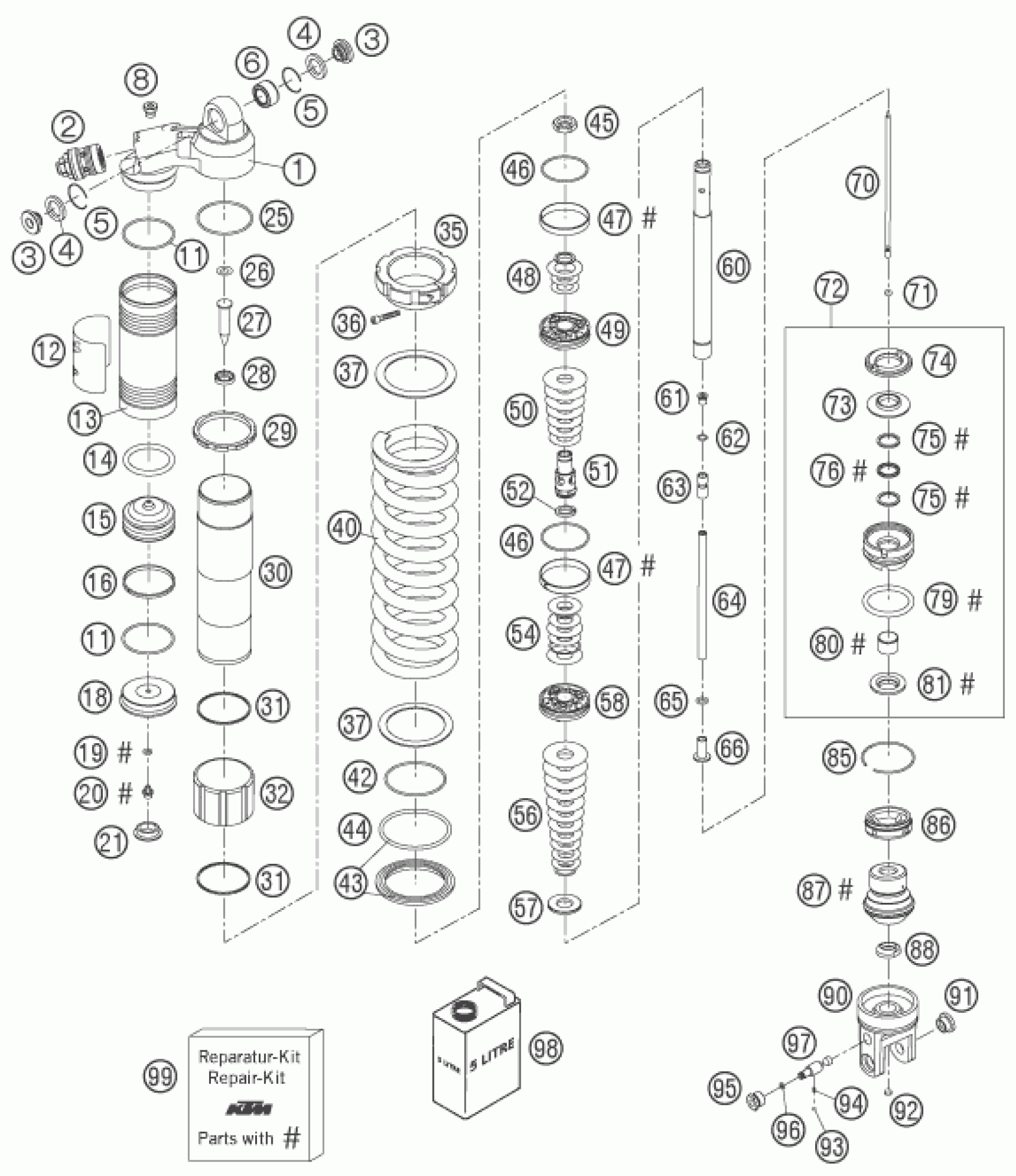

KTM 450 XC-G RACING 2006 SHOCK ABSORBER DISASSEMBLED Diagram
#
1
MONOSHOCK TOP H=30,5 M54X1
50180429
$200.84
2
Compression cpl.
50180213S6
$333.34
48
SHIM 16X30X0,20
50180055
Unavailable
3
Distance bush 12x15/18/24,5x10
46180007
$17.76
4
Seal ring 19,5x26x3
46180003
$5.60
5
Round-wire snap ring 25x1
50180168
$1.49
6
Ball joint bearing 15x25x13
50180005
$29.35
8
HS cylinder-head screw R1/8 l8
50180095
$2.42
11
O-ring 48x2 NBR70 siliconized
46810016
$1.49
12
WP CAUTION (PDS KTM) 58X83
52000041
$16.73
13
RESERV. SCREW L=120 D=52 BLACK
50180479
$81.43
14
O-ring 41x5 Viton75
46180014
$2.05
15
Piston 52mm reservoir
46180002
$43.66
16
Pistonring 47,5x50,5x3,9
46180015
$10.00
18
RESERVOIR CAP D=58
50180344
$117.64
19
O-ring 5,28x1,78 NBR70 black
46810893
$1.49
20
HS lock screw M5x6
36120151
$1.86
21
Rubber cap do not open 22x5,5
46811208
$3.08
25
O-ring 52x2 NBR70
50180097
$2.05
26
spring washer 8,2x16x0,6
50180177
$2.05
27
NEEDLE D=11,4 D=6, L=57
50180488
$9.35
50
SHIM 16X30X0,25
50180064
Unavailable
28
SCREW CAP M20X1 D=11,5 H=5
50180437
$23.17
29
LOCK WASHER
50180270
$32.78
30
TUBE PDS L=198
50180430
$121.21
31
spreader ring 50X1,5
50180133
$7.40
32
Spring guide 54,15x60x40
50180081
$5.61
35
SPRING RETAINER M56X1
50180433
$120.67
36
AH SCREW DIN0912-M 5X30
0912050303
$1.49
37
Intermediate washer spring 61,
50180114
$3.08
40
SPRING 250 69N/MM (62) ORANGE
91210045
Unavailable
40
SPRING250 72N/MM D12,5 (62)ORA
91210046
Unavailable
40
Mainspring (62) 76-250 damper
91210047
Unavailable
40
SPRING250 80N/MM D12,5 (62)ORA
91210048
$125.26
40
SPRING 250 84N/MM (62) ORANGE
91210049
Unavailable
42
Round-wire snap ring 58,5x2
50180273
$2.05
43
SPRING RET. D=80 W. O-RING 05
50180463S
$29.21
44
O-ring 66,27x1,78 Viton70
50180352
$3.08
45
Piston rod nut 16x1
50180141
$9.06
46
O-ring 44x,17x1,78 Viton70
50180099
$2.05
47
Piston ring 47,95x49,95x8
50180135
$17.76
48
Shim 16x20x0,30
50180034
Unavailable
48
Shim 16x32x0,2
50180056
Unavailable
48
Shim 16x34x0,2 y5
50180057
Unavailable
48
SHIM 16X36X0,20
50180058
Unavailable
48
WASHER 16X21X1
50180210
Unavailable
49
PISTON 6+6X3,5/4,5
50180446
$65.93
50
Shim 16x21x0,30
50180035
Unavailable
50
SHIM 16X32X0,25
50180065
Unavailable
50
SHIM 16X38X0,25
50180068
Unavailable
50
SHIM 16X40X0,25
50180069
Unavailable
51
HOLDER D=16 M16X1 L=48
50180485
$49.50
54
Shim 16x20x0,30
50180034
Unavailable
54
SHIM 16X28X0,15
50180045
Unavailable
54
Shim 16x28x0,2
50180054
Unavailable
54
SHIM 16X30X0,20
50180055
Unavailable
54
Shim 16x32x0,2
50180056
Unavailable
54
Shim 16x34x0,2 y5
50180057
Unavailable
54
SHIM 16X36X0,25
50180067
Unavailable
56
Shim 16x20x0,30
50180034
Unavailable
56
Shim 16x28x0,2
50180054
Unavailable
56
SHIM 16X30X0,20
50180055
Unavailable
56
Shim 16x32x0,2
50180056
Unavailable
56
Shim 16x34x0,2 y5
50180057
Unavailable
56
SHIM 16X36X0,20
50180058
Unavailable
56
SHIM 16X38X0,20
50180059
Unavailable
56
Shim 16x40x0,2
50180060
Unavailable
56
Shim 16x42x0,2
50180061
Unavailable
56
SHIM 16X44X0,25
50180071
Unavailable
57
Rebound disc 16x34x5 h2
50180233
$91.06
58
Piston 16x49,6x13,5
50180311
$47.68
60
PISTON ROD D=18 L=146 M16X1
50180486
$185.13
61
BUSH M8X1
50180200
$14.02
62
O-ring 7x1,5 Viton70 green
50180157
$1.49
63
NEEDLE SEAT M8X1 D=5,5 05
50180439
$19.42
64
TUBE M8X1 L=145,4
50180489
$28.37
65
O-ring 8x2 NBR70
48600049
$1.49
66
Bush 5/8,2/7x9,5/16,8x23
50180279
$4.11
70
NEEDLE L=169
50180490
$13.65
71
O-ring 2,2x1,6 Viton75 green
46811265
$1.49
72
ADAPTOR CPL. D=50 H=29
50180435S
$119.20
73
Washer 18,5x43,7x6
50180113
$25.80
74
Rubber pad rebound 27x48x8 NBR
50180107
$4.11
75
Washer 18x22,5x1,5 plastic
50180102
$8.59
76
X-ring 18x2,62 Viton70
50180101
$15.70
79
O-ring 41x5 NBR70
50180103
$1.49
80
Guide bushing 18x20x12
46180119
$6.35
81
Dirt scarper 18mm
50180082
$34.03
85
Round-wire snap ring 53x1,75
50180126
$1.49
86
COVER D=50
50180487
$44.12
87
Rubber pad 17x58x59
50180480
$20.37
88
Nut M18x1 h8 WAF24
50180481
$9.15
90
FORK PART L=55,5B=32,5D=12
50180484
$133.70
91
Threaded bush M12 d20
50180105
$15.51
92
Rubber plug 8x3,5 NBR50
50180297
$2.48
93
Steel ball d3
40540603
$1.49
94
Spring (1,7) l7,9
48600028
$3.08
95
HH screw M14x9
50180281
$28.98
96
O-ring 4x1,5 NBR70
50180222
$1.49
97
Adjustment screw slot
50180434
$6.13
98
SHOCK ABSORBER FLUID 5 LT 05
50180466S1
$149.59
99
REPAIR KIT GASKET 5018 PDS 06
R12011
$131.89
50
SHIM 16X34X0,25
50180066
Unavailable
50
SHIM 16X36X0,25
50180067
Unavailable
52
BACKPLATE D=23 D=16 H3
50180499
Unavailable
