Description

Price

1

SILENCER CPL. 2005

77005079000

$432.30

4

SILENCER HOUSING CPL. SX 03

59405079050

Unavailable

7

SILENCENER CONNECT. CAP CPL.03

59405079009

$45.06

10

spring washer DIN 137 B - 6

0137060003

$2.05

11

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

12

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

13

clip nut M6

54603048100

$4.11

14

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

21

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

32

STUFF.YARN 550GRAM L=550MM SX

59005078550

$87.98

36

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

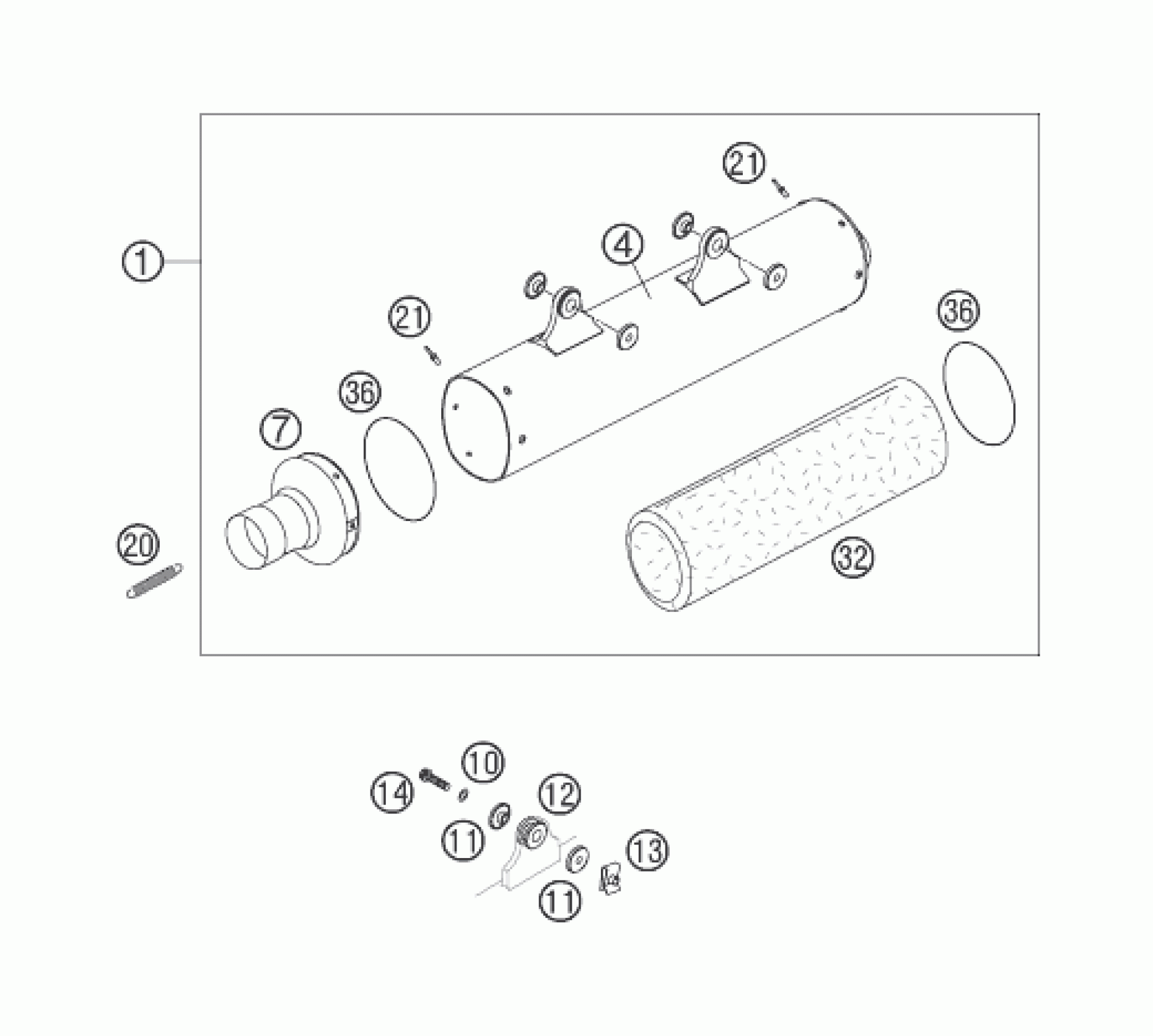

KTM 450 XC-G RACING 2006 MAIN SILENCER Diagram

SILENCER CPL. 2005

SILENCER HOUSING CPL. SX 03

SILENCENER CONNECT. CAP CPL.03

spring washer DIN 137 B - 6

BUSHING 7,5X12X28X7,8 '96

EXHAUST BRACKET RUBBER BLACK

clip nut M6

HH COLLAR SCREW M 6X30 SW=8

TEN.SPRING L=62MM EY.MOVEABLE

DUMMY RIVET 4,8X 8 NIRO

STUFF.YARN 550GRAM L=550MM SX

O-RING 74,00X1,50 FKM 75SH
