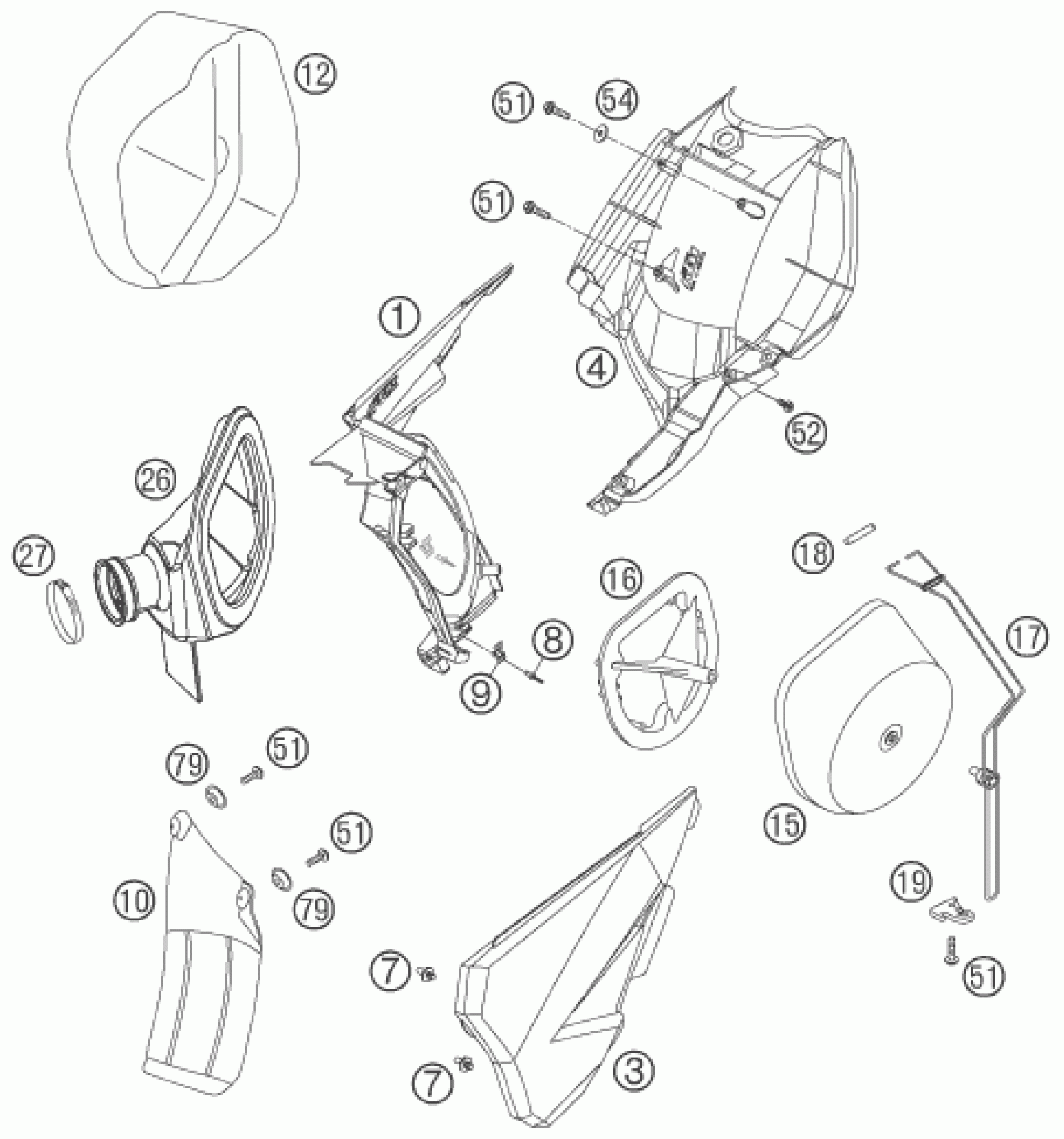

KTM 450 XC-G RACING 2006 AIR FILTER Diagram

FILTER WALL 03

54806001051

$23.37

FILTER BOX COVER 03

54806003000

$31.13

REAR PART FILTER BOX 03

54806001052

$26.55

QUICK RELEASE-NIPPLE 03

54806008051

$2.05

BLIND RIVET 3,3X9,7 GROOVED 04

54806108052

$2.05

QUICK RELEASE-SPRING HANGER

54806008050

$2.05

FENDER FOR FILTER BOX '98

50306010000

$19.35

THROTTLE CAP 125-380EGS CPL98

50306012000

Unavailable

AIR FILTER RACING 2001

59006015000

$32.12

FILTER CARRIER RAC. 2001

59006016000

$13.67

FILTER SUPPORT CPL.2-STROKE'98

50306017000

$22.13

FILTER SUPPORT BUSH 125-380'98

50306018000

$5.79

FASTEN. DEVICE FILTER SUPPORT

50306019000

$4.56

CARBURETOR CONNECTION BOOT

59406026000

$63.10

HOSE CLAMP 40-60MM

46005058000

$5.23

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

SPECIAL SCREW M 5,0X10

0009050103

$2.05

Washer DIN9021-A 6.4

0021060003

$2.05

BUCKET

72210079000

$3.00
