Description

Price

1

Silencer SXF USA 350/450 preas

A47005079133

$679.92

2

DAMP. COMPON. BLACK

77205068000

$6.54

3

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

5

Pair of washers M6 NORDLOCK

50233041000

$4.11

6

HH collar screw M6x30 TX30

0025060306

$3.08

7

O-RING 80,00X2,00 VITON

0770800021

$6.91

8

Endcap cpl.

A46005079060

$134.44

9

SCREW TORX M5X10

78105081010

$2.05

10

Rockwool preformed

79305078520

$80.21

11

Rockwool preformed

A46005078080

$16.63

12

exhaust spacer

79105098000

$5.51

20

Tension spring L=65 mm

50305016200

$4.57

40

Header KTM 450 SXF

A48005007033

$283.30

41

HH collar screw M8x25

0025080256

$2.05

42

BUSHING 8.5x12x28x8.3

77805069000

$5.98

43

Damper gray

79105068000

$8.03

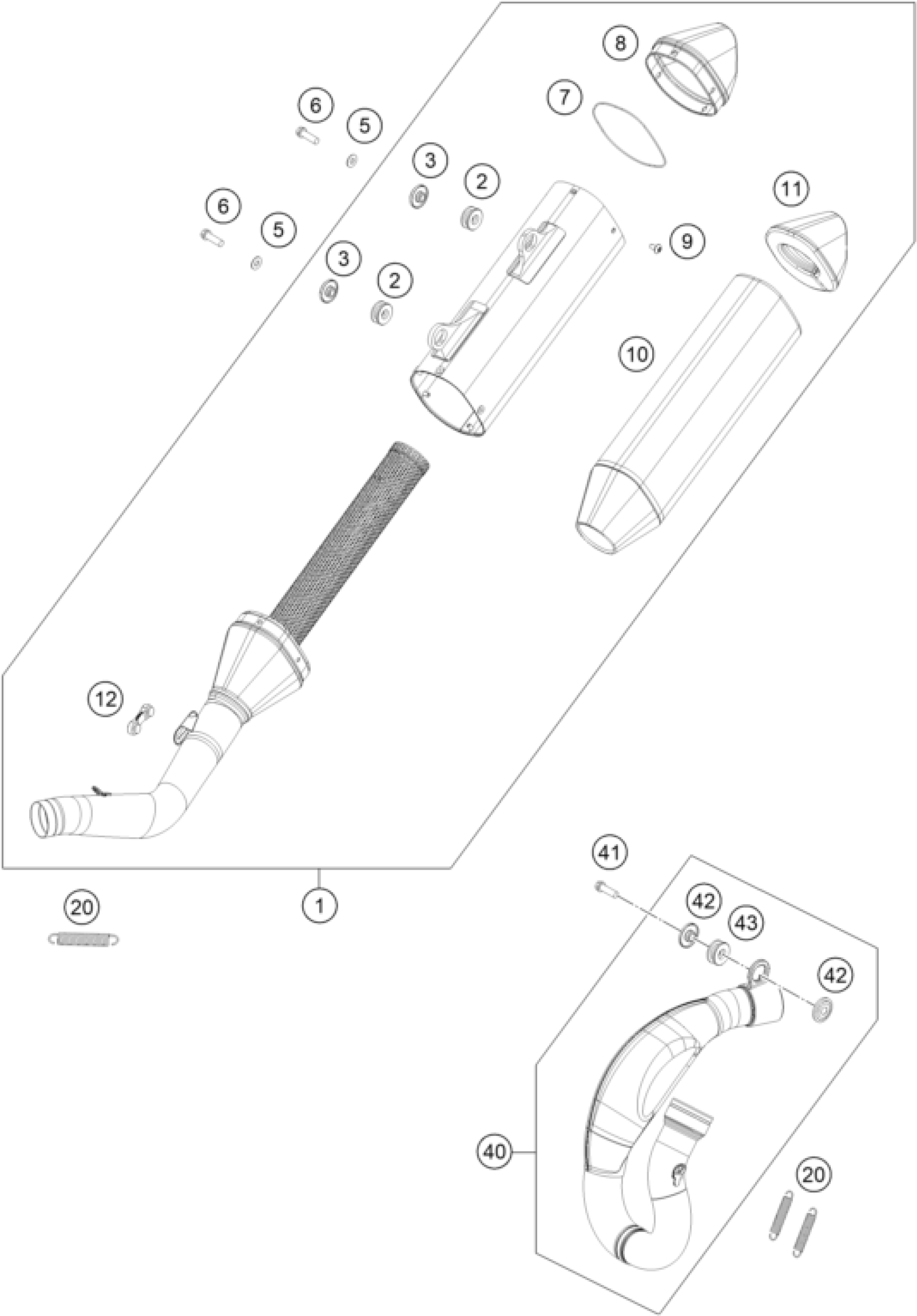

KTM 450 XC-F 2025 EXHAUST SYSTEM Diagram

Silencer SXF USA 350/450 preas

DAMP. COMPON. BLACK

BUSHING 7.5x12x28x8.3 11

Pair of washers M6 NORDLOCK

HH collar screw M6x30 TX30

O-RING 80,00X2,00 VITON

Endcap cpl.

SCREW TORX M5X10

Rockwool preformed

Rockwool preformed

exhaust spacer

Tension spring L=65 mm

Header KTM 450 SXF

HH collar screw M8x25

BUSHING 8.5x12x28x8.3

Damper gray
