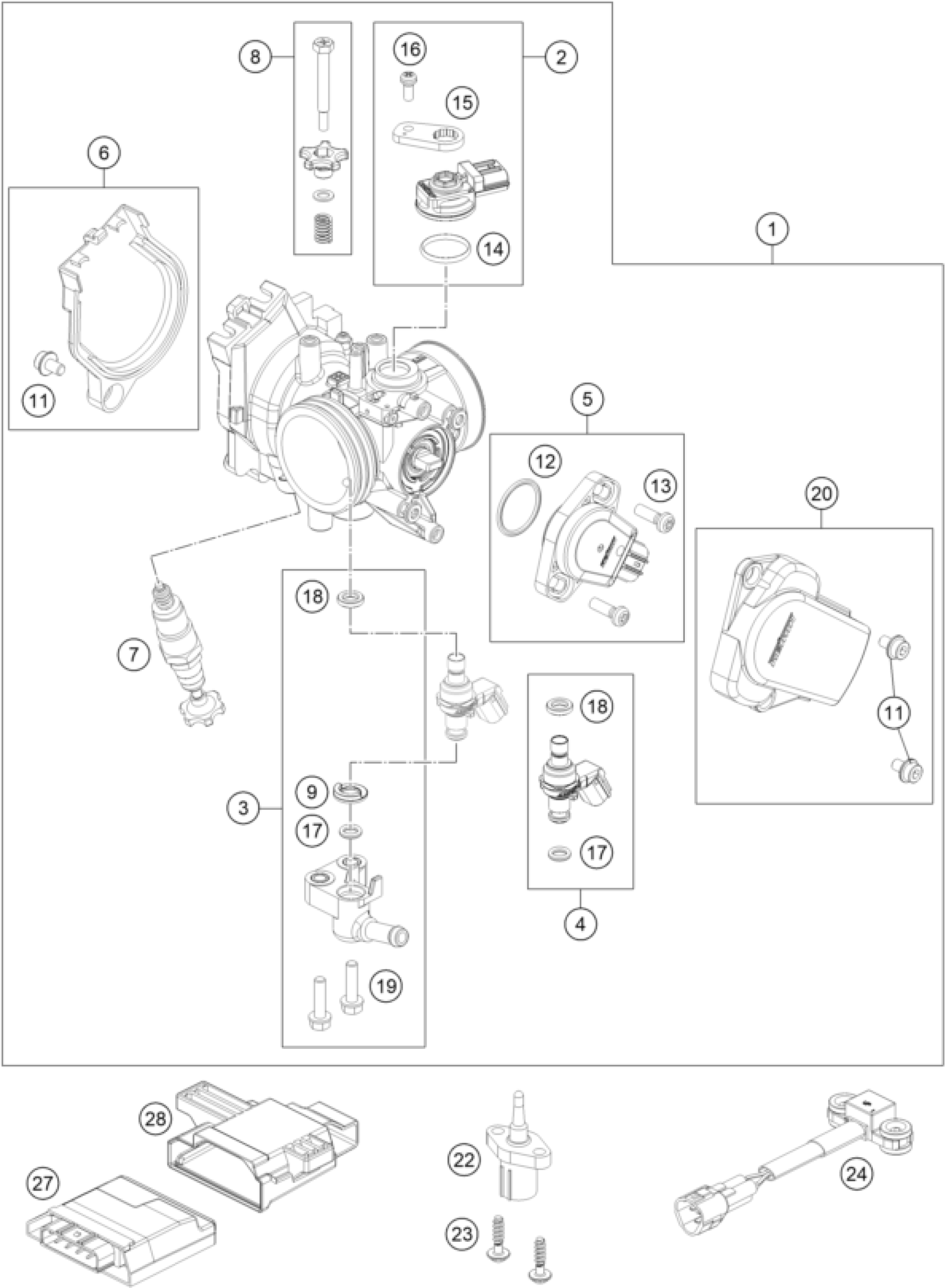

KTM 450 XC-F 2023 THROTTLE BODY Diagram

#

Description
Price

1

Throttle body

A46041001000

$282.17

2

MAP SENSOR CPL.

77741085044

$211.77

3

FUEL PIPE CPL.

79041013044

$84.80

4

Injector cmpl.

79041023144

$175.49

5

TPS CPL.

79041077044

$124.35

6

DKK Cover cpl.

79141056044

$22.99

7

STARTER VALVE CPL.

79041070000

$137.25

8

IDLING ADJUSTING SCREW CPL.

77741060044

$31.88

9

SEAL RING

79041023030

$16.35

11

SPECIAL SCREW

79041056020

$5.98

12

O-RING

75041077110

$8.13

13

SCREW THROTTLE POS. SENSOR

61041077020

$3.08

14

O-RING

75041085010

$6.07

15

PLATE

77741085020

$6.72

16

SPECIAL SCREW

81241085030

$5.23

17

O-RING

60341023020

$7.94

18

SEAL RING

75041023010

$11.49

19

SPECIAL SCREW M5X20

79041013060

$4.11

20

TPS Cover cpl.

79141078044

$23.46

22

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

23

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

24

Roll-over sensor

A46041088000

$36.64

27

Engine control unit

79641031000

$530.32

28

ECU rubber strap

A46041031050

$8.78
