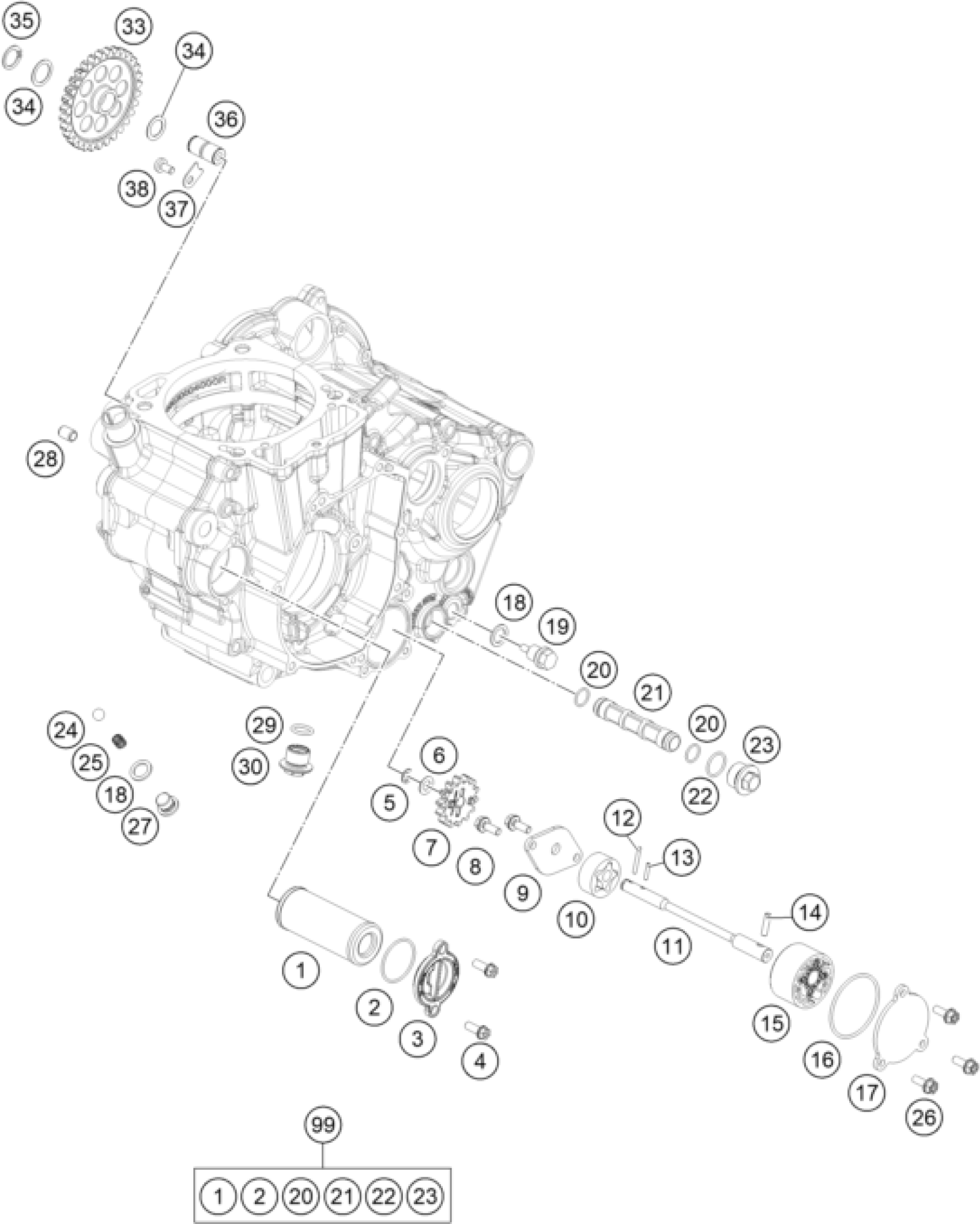

KTM 450 XC-F 2023 LUBRICATING SYSTEM Diagram

#

Description
Price

1

Oil Filter 07

77338005100

$9.34

2

O-RING 33,05X1,78

07703305178

$3.08

3

OIL FILTER COVER 08

77338041200

$11.68

4

HH collar screw M6x16 TX30

0025060166

$3.08

5

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

6

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

7

Oil pump gear

77038001200

$5.23

8

Hex coll. screw M5x14 ISA30 se

0025050146S

$1.49

9

Oil pump cover

A48038003000

$5.23

10

OILPUMP ROTOR-SET 12MM CPL.

59038011112

$20.75

11

Oil pump shaft

A48038002000

$32.44

12

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

13

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

$1.49

14

needle roller NRB 4x15.8 G2

0402041580

$2.05

15

ROTOR SET 22MM

61238011100

$16.63

16

O-RING 44,00X2,00 VITON

0770440020

$3.08

17

OIL PUMP COVER LEFT

79238004000

$14.11

18

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

19

oildrain plug with magnet

58030021100

$11.30

20

O-RING 12,5X1,5 VITON V75

07701250151

$4.11

21

Oil screen

59038016200

$7.00

22

O-RING 17,17X1,78 GLO

0770020170

$2.05

23

PLUG M20X1,5 WS=13

59038017100

$7.85

24

BALL DIN5401-9

0401090003

$2.05

25

Compression spring

A48038026000

$1.49

26

Hex coll. screw M5x14 ISA30 se

0025050146S

$1.49

27

PLUG SCREW SAS M12X1,5

78036024000

$9.72

29

O-RING 12X2 VITON GREEN

0770012021

$2.05

30

Screw plug M16x1.5

0900001600200

$7.47

33

Oil pump intermediate gear 31T

A48038006033

$31.78

34

SHIM WASHER DIN0988-12X18X0,50

0988121805

$2.05

35

retaining ring DIN 471 12x1

0471120010

$1.49

99

OILFILTER SERVICE KIT 450/500

A48038015010

Unavailable

36

BUSHING PIN

77038013100

$8.41

37

AXIAL-CIRCLIP

77238061050

$3.08

38

Oval head screw DIN 7985-M5x10

0018050103S

$1.49

28

Dowel, 6x8x11.5

59030023100

$1.49
