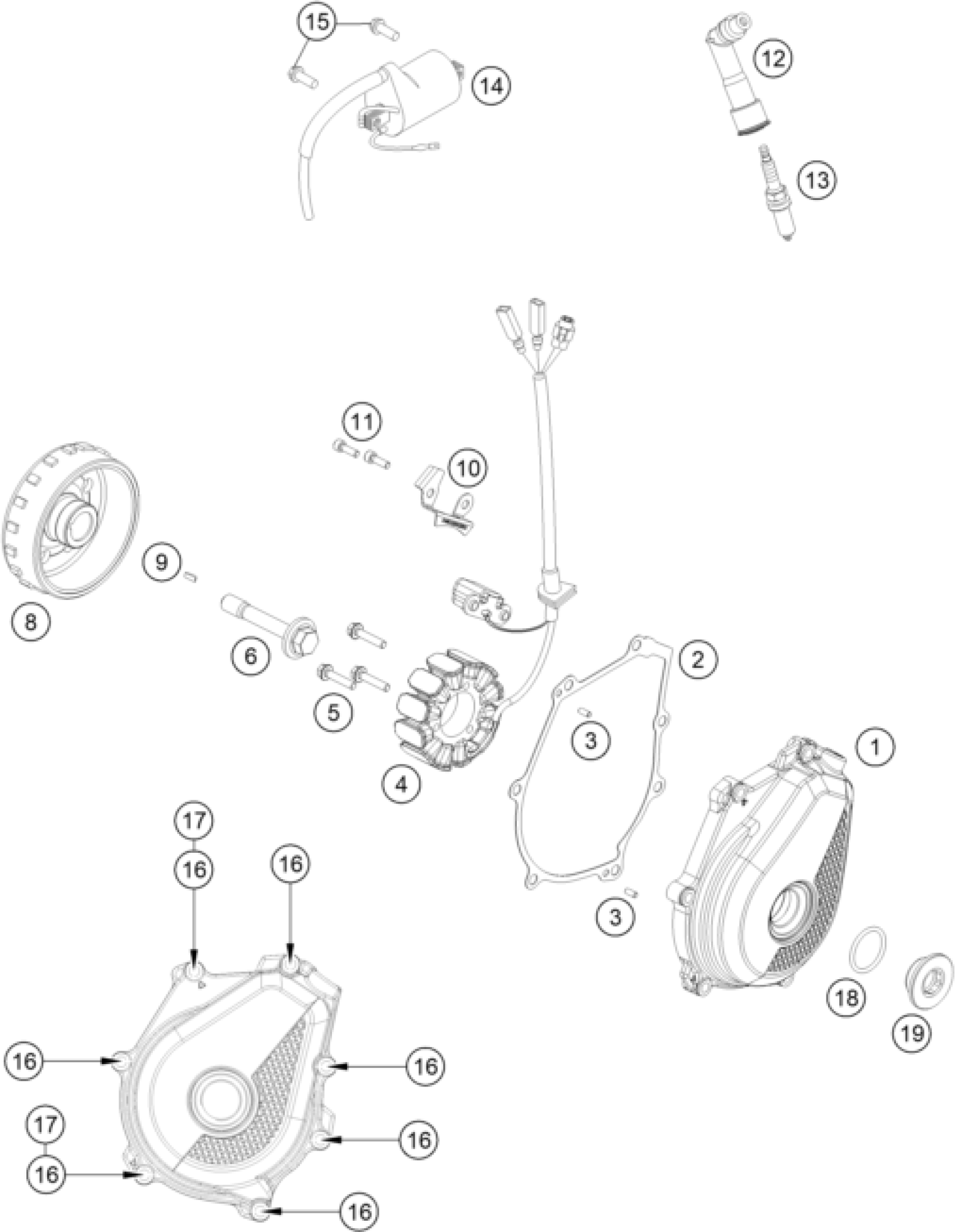

KTM 450 XC-F 2023 IGNITION SYSTEM Diagram

#

Description
Price

1

Ignition cover

A48030002000C1

$95.08

2

Ignition cover gasket

A48030040000

$8.03

3

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

4

Stator

79239004200

$204.20

5

Bolt DIN 6912 - M5x25 SS

0012050253S

$1.49

6

FLYWHEEL SCREW

77339010100

$5.60

8

Rotor

79439005100

$426.35

9

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

10

Cable retainer

A46030002050

$9.06

11

Cap head screw DIN912 - M5x16

0912050163S

$1.49

12

Spark plug connector

79539090000

$51.23

13

spark plug

77839093000

$22.71

14

Ignition coil

58439006000

$75.45

15

HH collar screw M6x20 TX30

0025060206

$3.08

16

HH collar screw M6x25 TX30

0025060256

$3.08

17

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

19

SCREW PLUG M24X1,5

7723000216030

$36.64

18

o-ring 24.00x2.50 Viton

07700240251

$3.08
