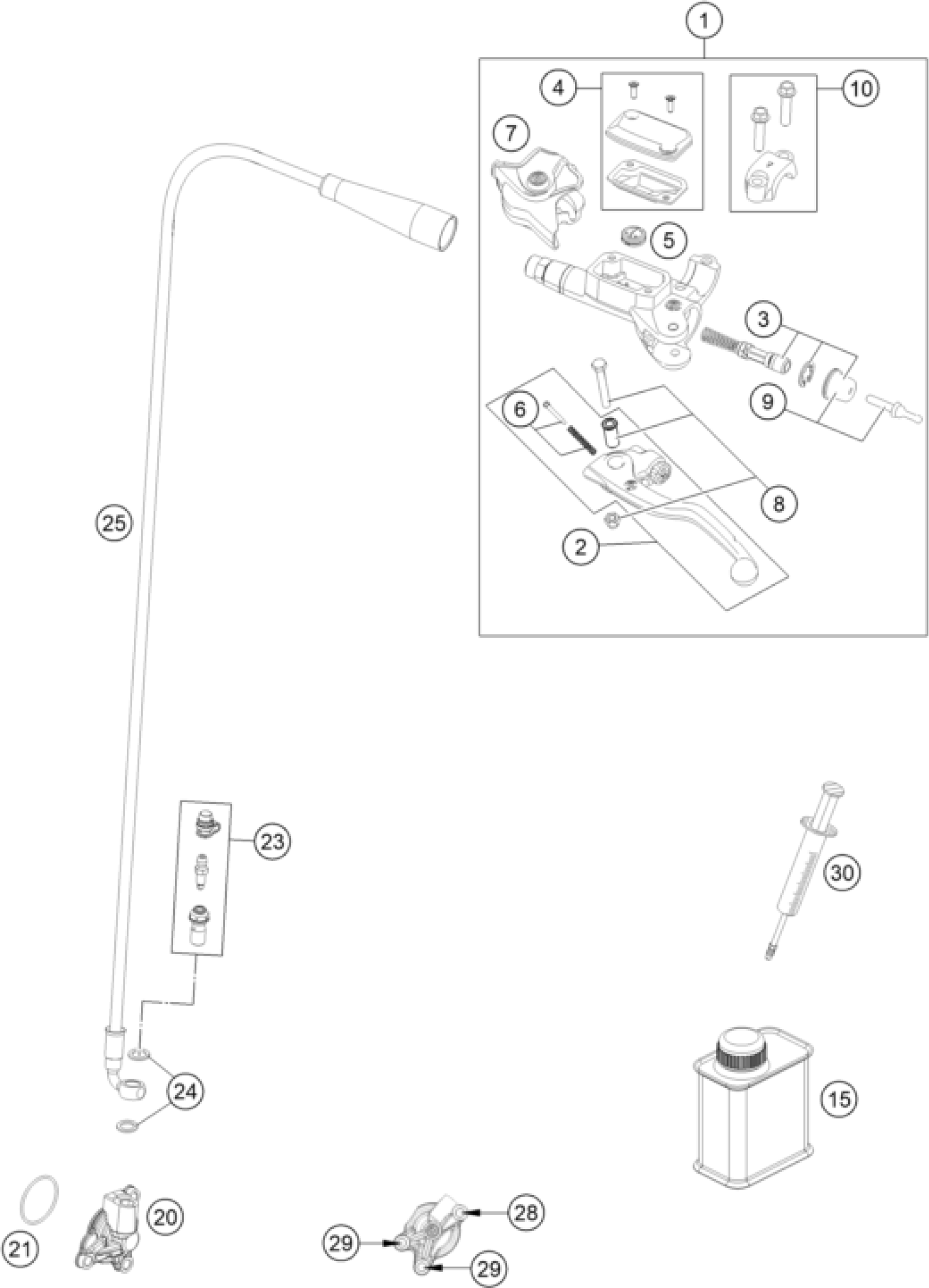

KTM 450 XC-F 2023 CLUTCH CONTROL Diagram

#

Description
Price

1

MASTER CYLINDER CPL.

79202030044

$268.06

2

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

3

REP. KIT PISTON 06

54802032000

$49.92

4

COVER HYD. CLUTCH CPL. 2014

5480200310030

$35.52

5

VALVE

54802051000

$19.16

6

BOLT KPL.

54802052000

$29.35

7

PROTECTION CAP 06

54802037000

$20.94

8

Lever screw cmpl. 06

54802038100

$39.82

9

Push rod cmpl.

54802046000

$23.46

10

CLAMP CPL. 06

54802005100

$25.80

15

Brake fluid DOT5.1 0,25L

00062030000

$12.52

20

OUTPUT CYLINDER CPL.

79232061044

$187.65

21

O-ring 30x1.5 NBR 70

0770300015

$2.05

23

BLEEDER SCREW CPL.

79032064000

$30.38

24

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

25

clutch hose

A49032063000

$68.71

28

HH collar screw M6x40 TX30

0025060406

$3.08

29

HH collar screw M6x16 TX30

0025060166

$3.08

30

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26
