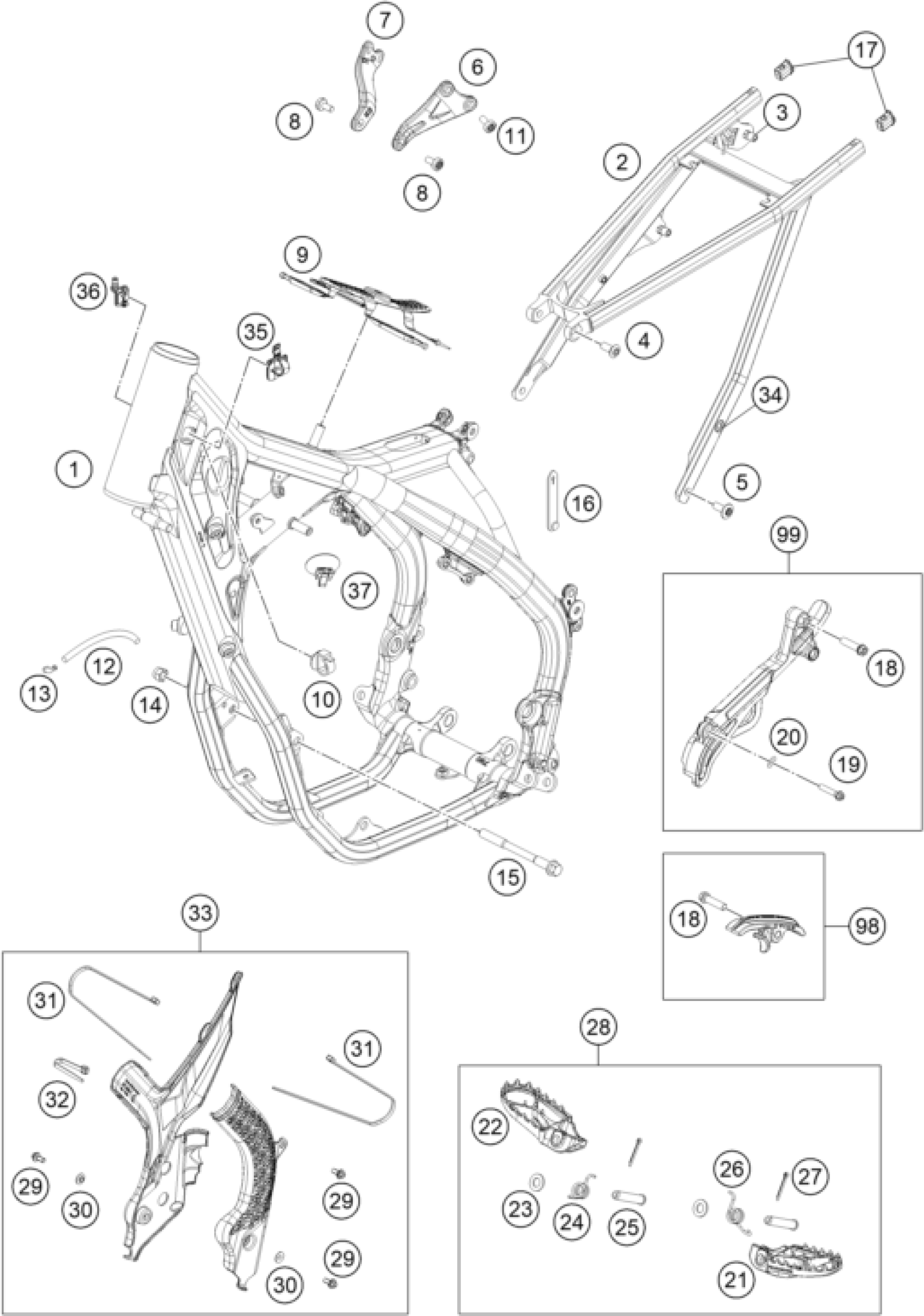

KTM 450 XC-F 2021 FRAME Diagram

#

Description
Price

1

Frame 795S4 450 XC-F

7950300110033

$1,985.84

2

Subframe

79103002100

$302.46

3

BLIND RIVET NUT EM6-60LF/HX

77303139000

$4.11

4

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

5

Special screw M8X18 TORX45 SL

79003003000

$3.08

6

Engine brace, left

7910301300001S

$56.75

7

Engine brace, right

7910301400001S

$56.75

8

SHCS M8x20 TX45

0035080206S

$5.32

9

TANK REST RUBBER

79607012000

$10.09

10

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

11

AH-COLLAR SCREW M8X15 TORX45

0035080156S

$2.05

12

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

13

ANGLE PIECE '97

50303089000

$5.23

14

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

15

engine brac.scr. M10x115

77203014000

$8.97

16

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

17

Rear frame bit

79103002010

$4.11

18

HH collar screw M8x30

0025080306

$3.08

19

HH collar screw M6x40 TX30

0025060406

$3.08

20

WASHER DIN0125-A 6,4

0125060003

$1.49

21

FOOTREST L/S 2016

79003040000

$41.51

22

FOOTREST R/S 2016

79003041000

$41.51

23

washer DIN 125 A 10.5

0125100003

$2.05

24

FOOTREST SPRING R/S 2016

79003044000

$2.05

25

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

26

FOOTREST SPRING L/S 2016

79003045000

$2.05

27

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

28

FOOT PEGS SET CPL. 2016

79003040033

$101.16

29

HH collar screw M5x10 TX30

0025050106

$1.49

30

Bush f. frame protection 03

54803092060

Unavailable

31

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

32

CABLE TIE 140/2,5MM BLACK

44011076140

$1.49

33

Frame protection set

7910309410030

$26.55

34

BLIND RIVET NUT M6 KNURLED

79003002080

$3.08

35

wire holder le 19

79111093000

$1.49

36

wire holder / fuel ventilation

79107013010

$1.49

37

Cable bracket d8

79711013010

$1.49

98

CHAIN SLIDING KIT BELOW CPL.16

79003053010

$17.85

99

SPROCKET COVER KIT

79003096010

$24.77
