CLUTCH

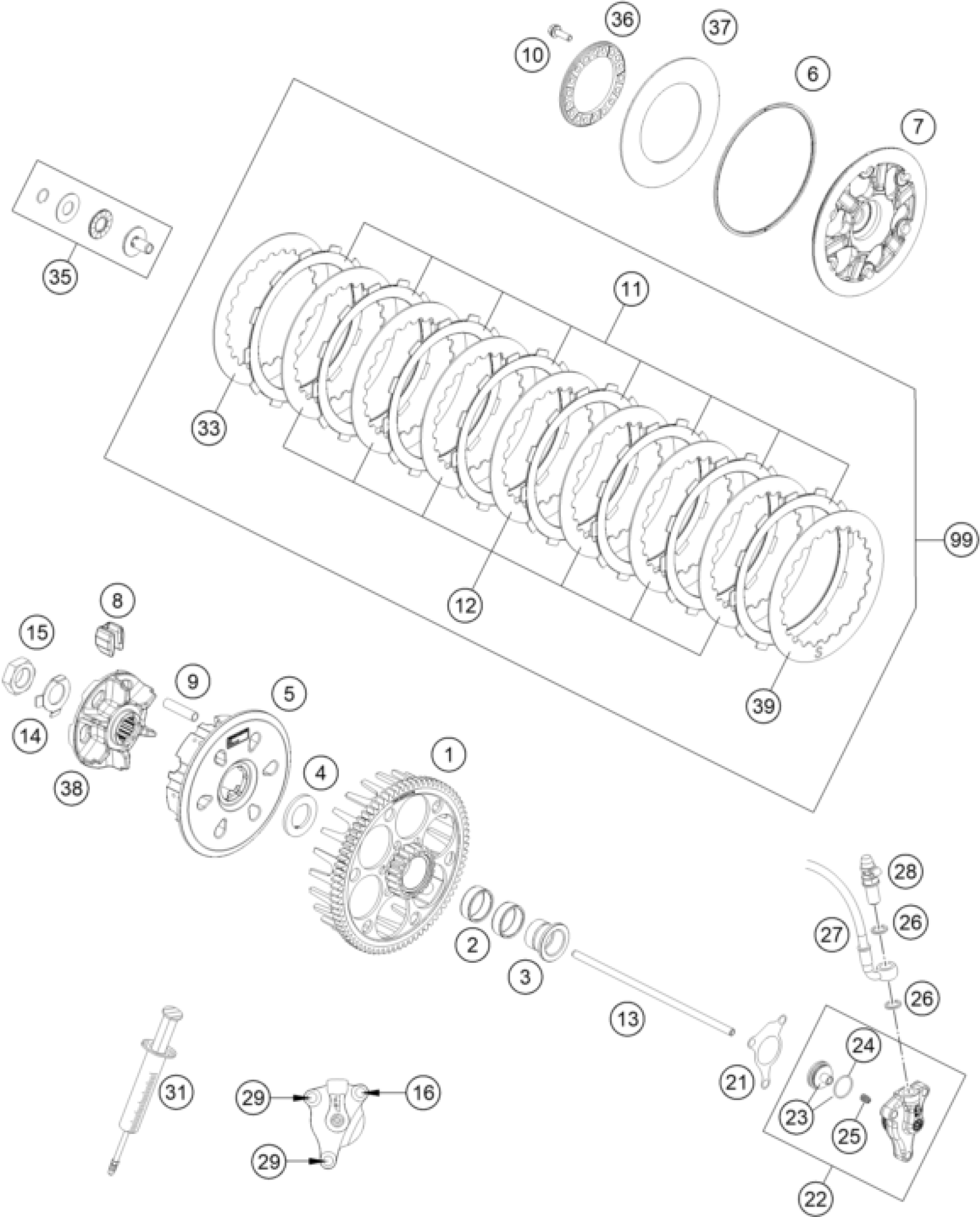

KTM 450 XC-F 2021 CLUTCH Diagram
#
Description
Price
1
Clutch basket
79432101076
$276.19
2
NEEDLE BEAR K 25X29X10
0405252910
$8.87
3
COLLARSLEEVE
78132015100
$26.92
4
WASHER 22 X 36,5 X 3
78932009000
$7.75
5
CLUTCH HUB
78132002300
$134.72
6
WASHER 112X118X1.5
78132013000
$10.84
7
Clutch pressure plate
79432003100
$23.74
8
DAMPING RUBBER
78132025100
$4.11
9
DRIVING SLEEVE D=7,95 L=38
77232004000
$3.08
10
HH collar screw M5x16 TX30
0025050166
$2.05
11
Lining disc 1,95mm
79532011000
$22.43
12
INTERMEDIATE DISC 1,4MM 2002
59032010200
$10.93
13
PUSH ROD
79432054000
$19.72
14
TAB WASHER
78132018000
$5.88
15
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
$7.75
16
HH collar screw M6x30 TX30
0025060306
$3.08
21
GASKET FOR SLAVE CYLINDER
59032065000
$5.60
22
OUTPUT CYLINDER CPL. 06
54832061044
$137.44
23
PISTON CPL.
54832066000
$68.43
24
O-RING
54832067000
$3.08
25
PRESSURE SPRING
54832069000
$12.05
26
sealing ring DIN 7603 10x14x1
0603100141
$2.05
27
CLUTCH PIPE
78132063000
$107.14
28
BLEEDER SCREW CPL. 05
62513020000
$27.48
29
HH collar screw M6x20 TX30
0025060206
$3.08
31
VENT INJEKTION HYDR. CLUTCH
50329050000
$75.26
33
INTERMEDIATE DISC 1MM 2002
59032010100
$9.81
35
PRESSURE PIECE CPL.
78132057144
$30.75
36
Spring retainer
78132006200
$10.84
37
BELLEV. SPR. 71X115X1,6IO=4.74
78932005000
$62.64
38
HUB
78132002111
$134.72
39
INTERMEDIATE DISC 1MM
78932010000
$12.05
99
Clutch plate pack
79532010033
$209.15
