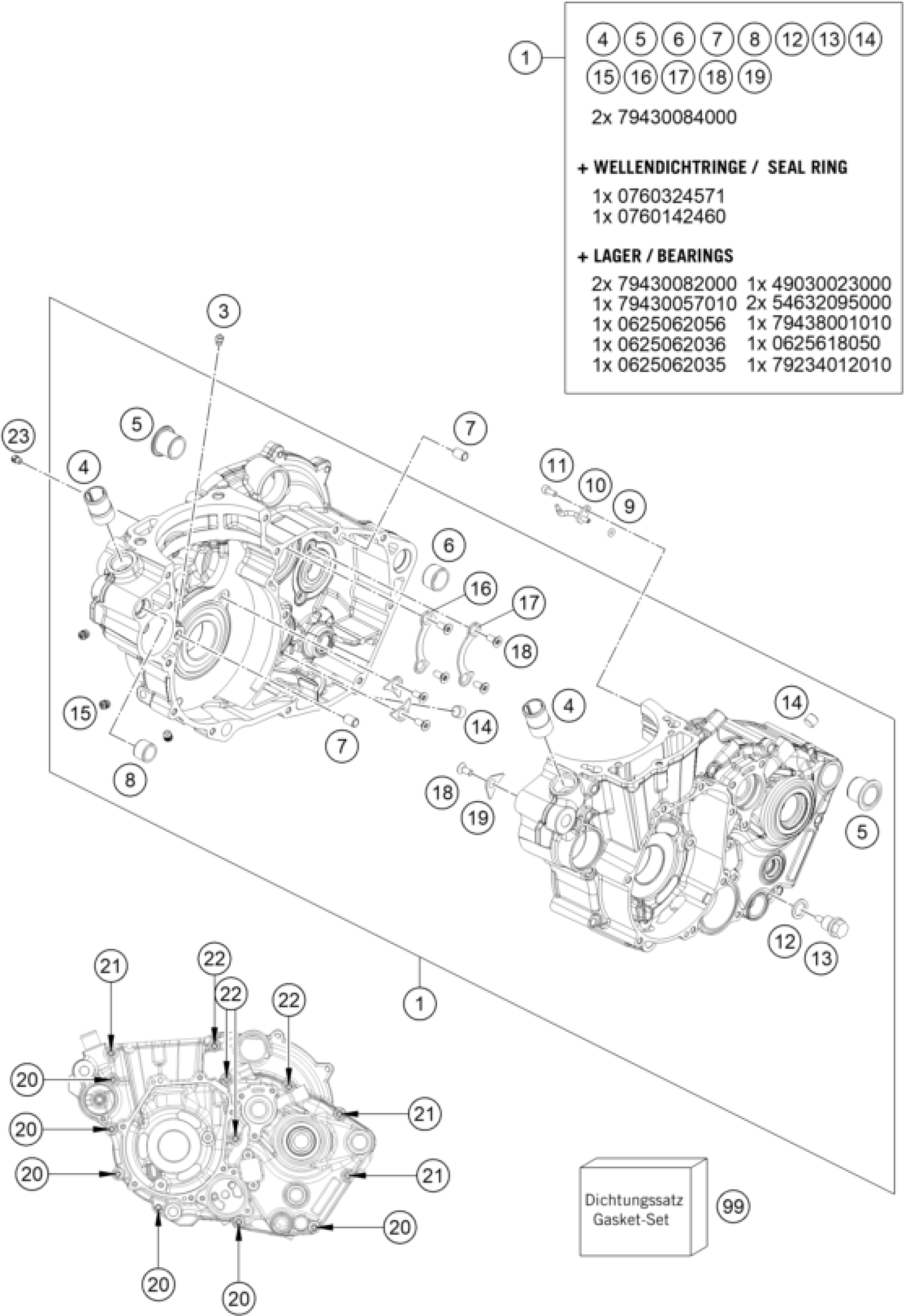

KTM 450 XC-F 2019 ENGINE CASE Diagram

Engine case cpl.

79430000144

$1,244.66

oil jet 70 M5

60030063070

$8.59

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

CASE BUSH

75030010100

$12.33

DOWEL 21X12 03

54830027000

$5.23

dowel sleeve 6x8x11.5

59030023000

$1.49

DOWEL 17 X 13 X 12

51030026100

$6.44

O-RING 3,5X2,00 NBR

0770035020

$1.49

OIL JET ANGLED 70

81230064000

$12.15

AH.SCREW DIN0912-M 4X10

0912040103

$2.05

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

pipe plug DIN 906 M10x1

0906100100

$4.11

SCREW PLUG

59030296000

$6.26

TAB WASHER BEARING MAIN SHAFT

78033032000

$5.51

TAB WASHER BEARING COUNT.SHAFT

78033132000

$5.23

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

RETAINING PLATE F. CS BEARING

75030085000

$1.49

HH collar screw M6x60 TX30

0025060606

$3.08

HH COLLAR SCREW M6X70 TX30

0025060706

$3.08

HH COLLAR SCREW M6X80 TX30

0025060806

$2.05

oil jet 50 M5

60030063050

$9.44

GASKET SET 450 SX-F

79430099000

Unavailable
