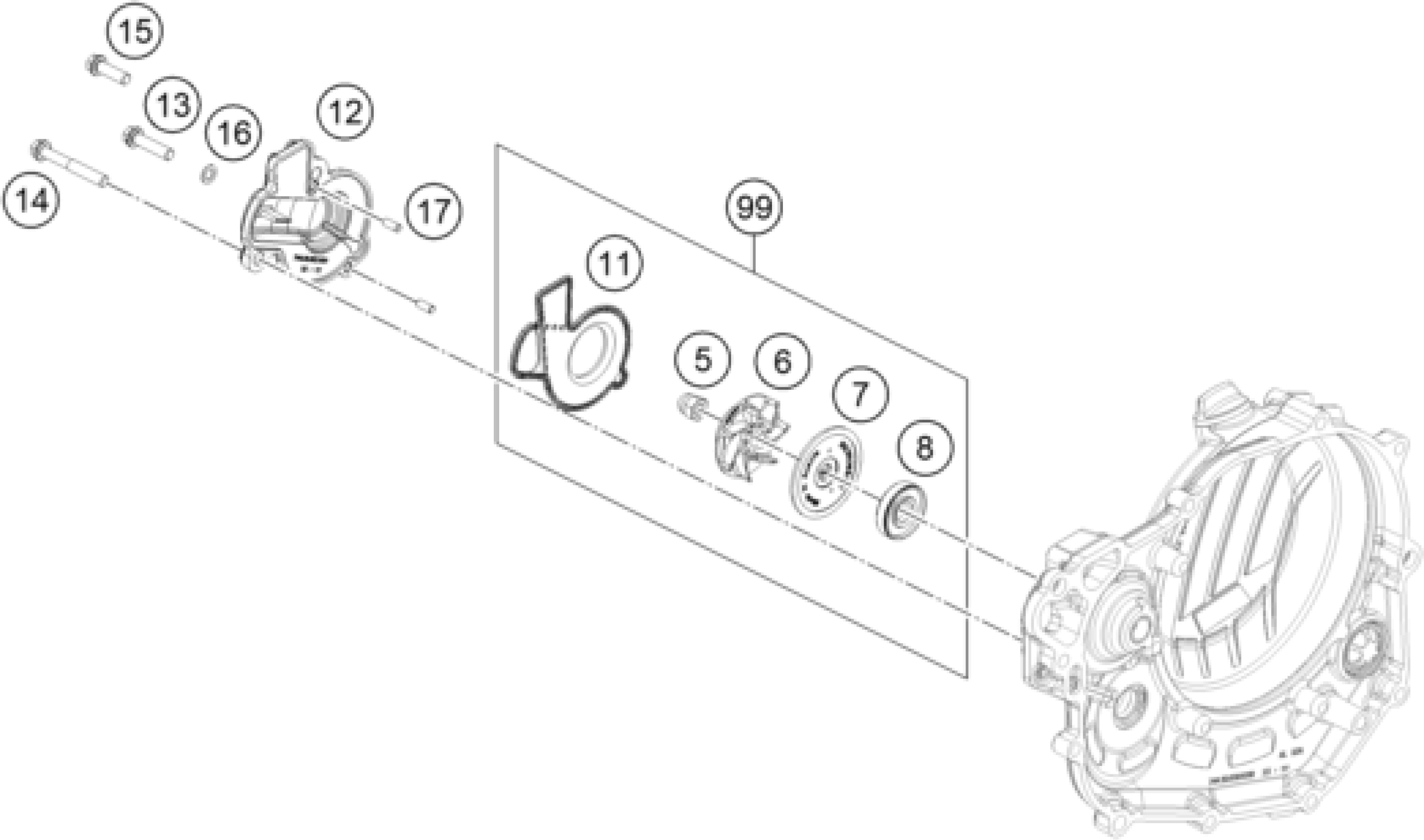

KTM 450 XC- F 2017 WATER PUMP Diagram

#

Description
Price

5

CAP NUT M6 STAINLESS STEEL

61230045000

$2.05

6

WATER PUMP ROTOR

81235055020

$10.09

7

DISC WATER PUMP

81235055110

$5.23

8

SHAFT SEAL RING 12X30X7 PTFE

0760123073

$12.52

11

SEAL WITH CARRIER PLATE

79435053000

$24.02

12

WATER PUMP COVER

79435052000

$20.75

13

HH collar screw M6x25 TX30

0025060256

$3.08

14

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

15

HH collar screw M6x20 TX30

0025060206

$3.08

16

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

17

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

99

WATER PUMP REP. KIT

79435055015

Unavailable
