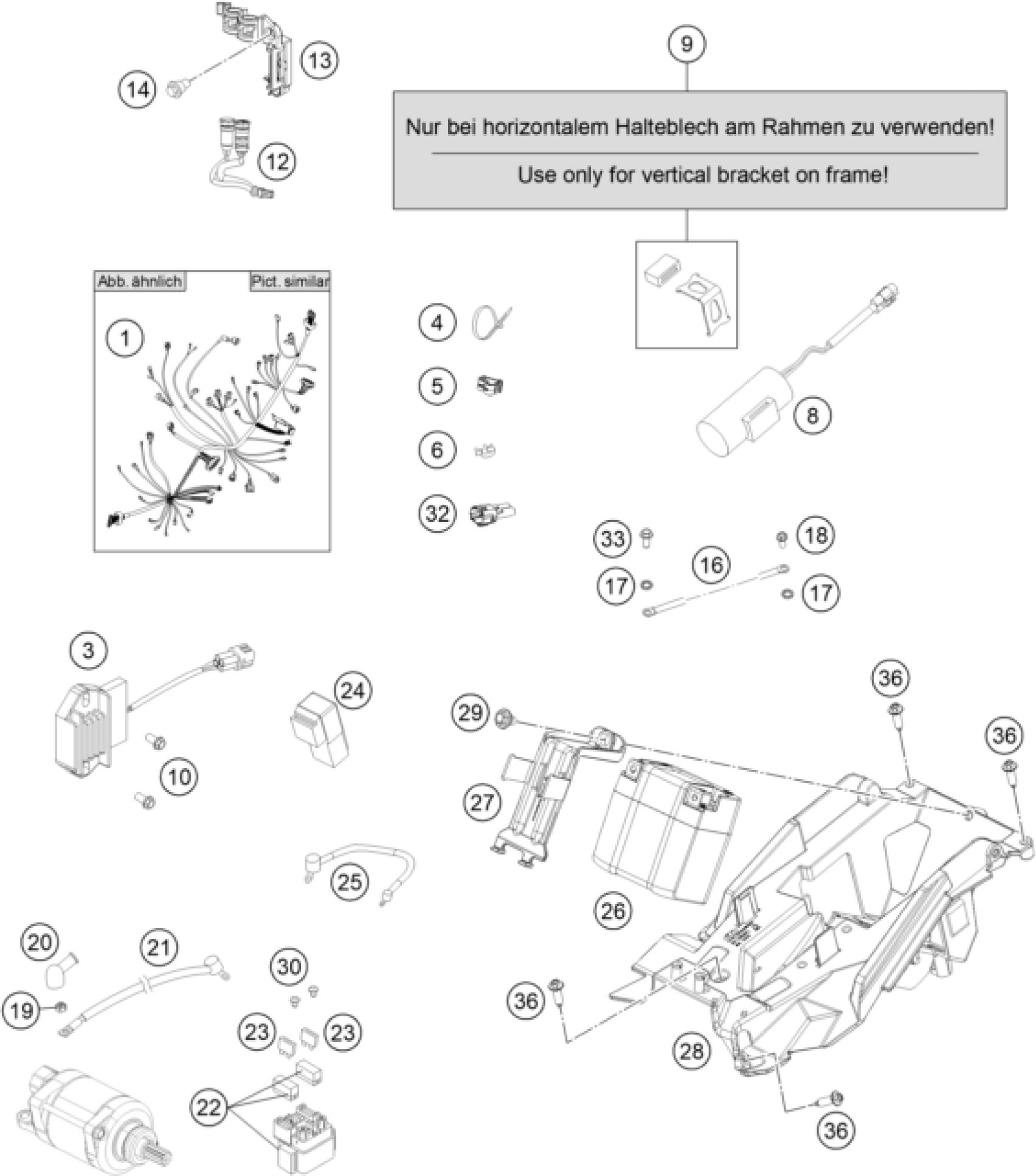

KTM 450 XC- F 2016 WIRING HARNESS Diagram

#

Description
Price

9

BRACKETKIT CONDENSER

79011036044

$9.06

1

WIRING HARNESS XC-F

79211075100

$353.33

3

Voltage regulator

77211034000

$188.39

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

$3.08

6

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

8

CONDENSER 2016

79011035000

$76.76

10

HH collar screw M6x20 TX30

0025060206

$3.08

12

INDICATOR LIGHT EFI+RES CPL.14

77714081000

$44.22

13

SUPPORT INDICATOR LIGHT XC

77214098100

$4.11

14

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

16

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

17

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

18

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

19

Self lock. nut DIN985-M6-A2

0985060003

$2.05

20

Protection cap for starter eng

77240099000

$6.35

21

STARTERCABLE 700 MM '97

58411059100

$23.65

22

Starter reley 12V 99

58211058000

$72.64

23

Plug-in fuse, big 10A

58011109110

$2.05

24

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

25

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

26

LITHIUM ION BATTERY 5S

77311953000

$166.05

27

BATTERY BOX SUPPORT

79011056100

$3.08

28

BATTERY BOX

79011055100

$37.86

29

special screw M6x12x3

83008000012

$3.08

30

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

32

END PLUG CAN-BUS 08

69011040000

$20.00

33

HH collar screw M5x12 TX30

0025050126

$3.08

36

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05
