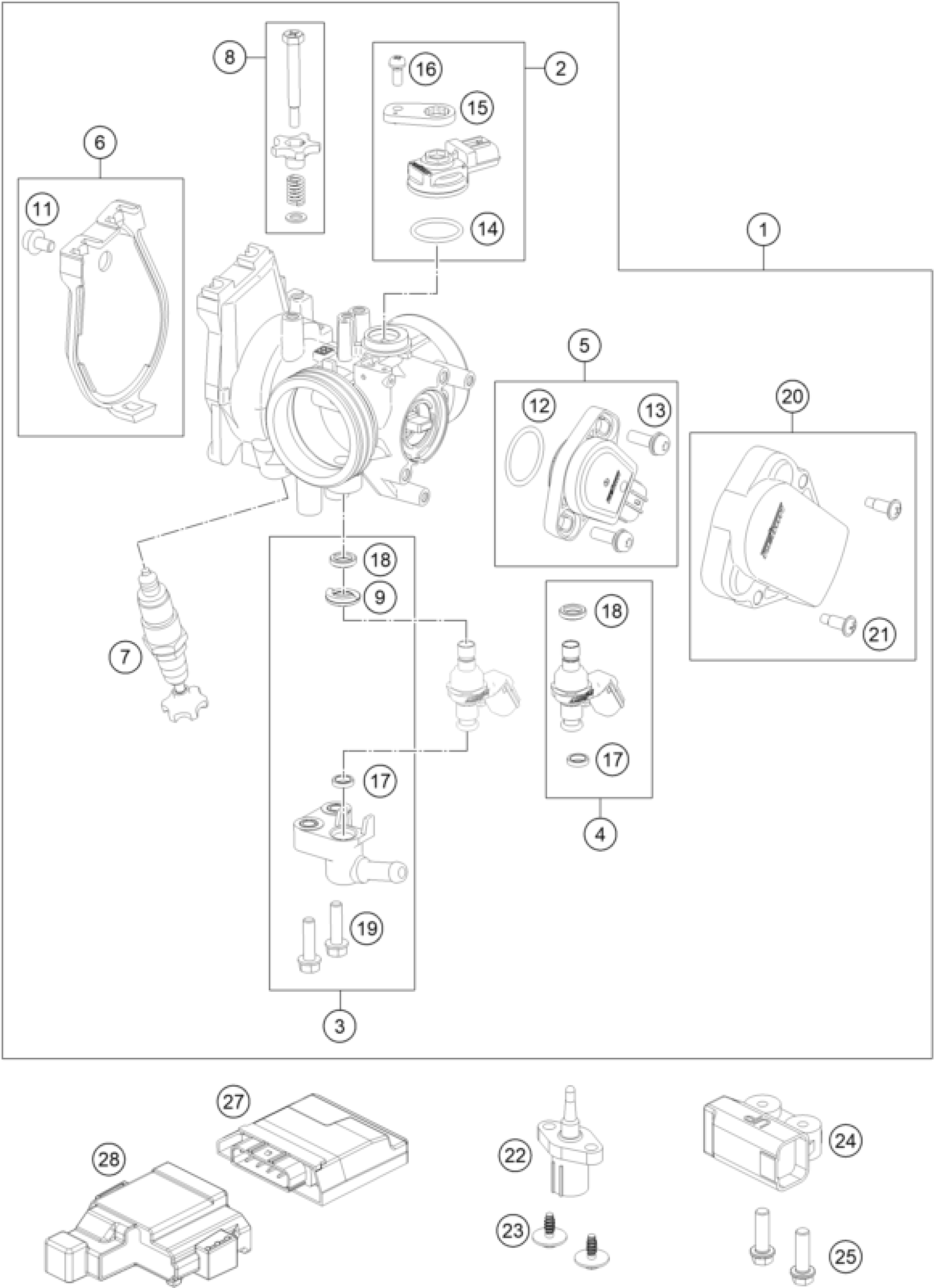

KTM 450 XC- F 2016 THROTTLE BODY Diagram

#

Description
Price

28

ECU RUBBER HOLDER

79041031050

$12.80

12

O-RING

75041077110

$8.13

13

SCREW THROTTLE POS. SENSOR

61041077020

$3.08

14

O-RING

75041085010

$6.07

15

PLATE

77741085020

$6.72

16

SPECIAL SCREW

81241085030

$5.23

17

O-RING

60341023020

$7.94

18

SEAL RING

75041023010

$11.49

19

SPECIAL SCREW M5X20

79041013060

$4.11

20

TPS COVER CPL.

79041078044

$43.66

21

SCREW KEIHIN 03

60031028000

$3.08

22

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

23

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

24

ROLLOVER SENSOR 05

61041088000

$67.69

25

HH collar screw M6x20 TX30

0025060206

$3.08

27

ENGINE CONTROL UNIT EFI

79041031000

$535.75

11

SPECIAL SCREW

79041056020

$5.98

1

THROTTLE BODY

79041001000

$673.75

2

MAP SENSOR CPL.

77741085044

$211.77

3

FUEL PIPE CPL.

79041013044

$84.80

4

INJECTOR CPL.

79041023044

$208.59

5

TPS CPL.

79041077044

$124.35

6

THROTTLE COVER CPL.

79041056044

$45.90

7

STARTER VALVE CPL.

79041070000

$137.25

8

IDLING ADJUSTING SCREW CPL.

77741060044

$31.88

9

SEAL RING

79041023030

$16.35
