THROTTLE BODY

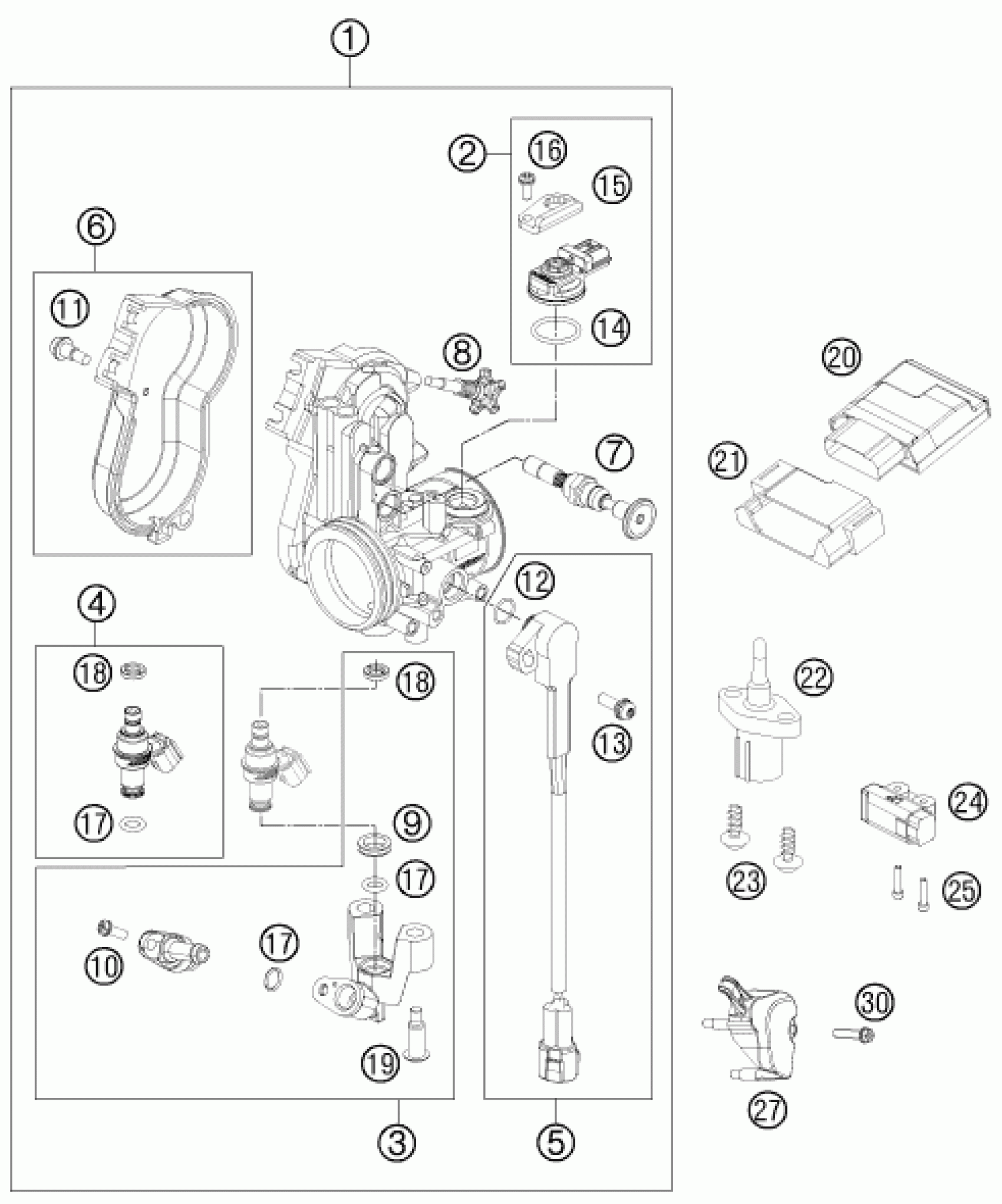

KTM 450 XC- F 2014 THROTTLE BODY Diagram
#
Description
Price
13
SPECIAL SCREW
81241077030
$5.23
14
O-RING
75041085010
$6.07
15
PLATE
77741085020
$6.72
16
SPECIAL SCREW
81241085030
$5.23
17
O-RING 7,2x2,2
75041023020
$9.06
18
SEAL RING
75041023010
$11.49
19
SCREW SHOULDER
75041013060
$6.72
20
TIMING CHARGER EFI
81241031000
$519.66
21
ECU SAFETY COVER
77241035050
$9.15
22
AMBIENT-AIR TEMPERATURE SENSOR
61041080000
$23.74
23
HH collar screw M5x16 TX30
0025050166
$2.05
24
ROLLOVER SENSOR 05
61041088000
$67.69
25
HH collar screw M6x20 TX30
0025060206
$3.08
27
PROTECTION CAP TPS
77741077050
$6.63
30
HH COLLAR SCREW M5X25 ISA30
0025050256
$1.49
1
THROTTLE BODY
77741001000
$636.45
2
MAP SENSOR CPL. 07
75041085044
$179.98
3
FUEL RAIL CPL.
77741013044
$148.66
4
INJECTOR KIT CPL.
77741023044
$198.12
5
TPS CPL.
77741077044
$274.88
6
THROTTLE COVER CPL. 09
81241056044
$52.35
7
STARTER VALVE COMP.
77741070000
$15.04
8
IDLING ADJUSTING SCREW CPL.
77741060044
$31.88
9
SEAL RING
77741023030
$19.91
10
SCREW SHOULDER
75041013010
$6.63
11
SPECIAL SCREW AH
81241056020
$8.03
12
O-RING THROTTLE POS. SENSOR
61041077010
$5.23
