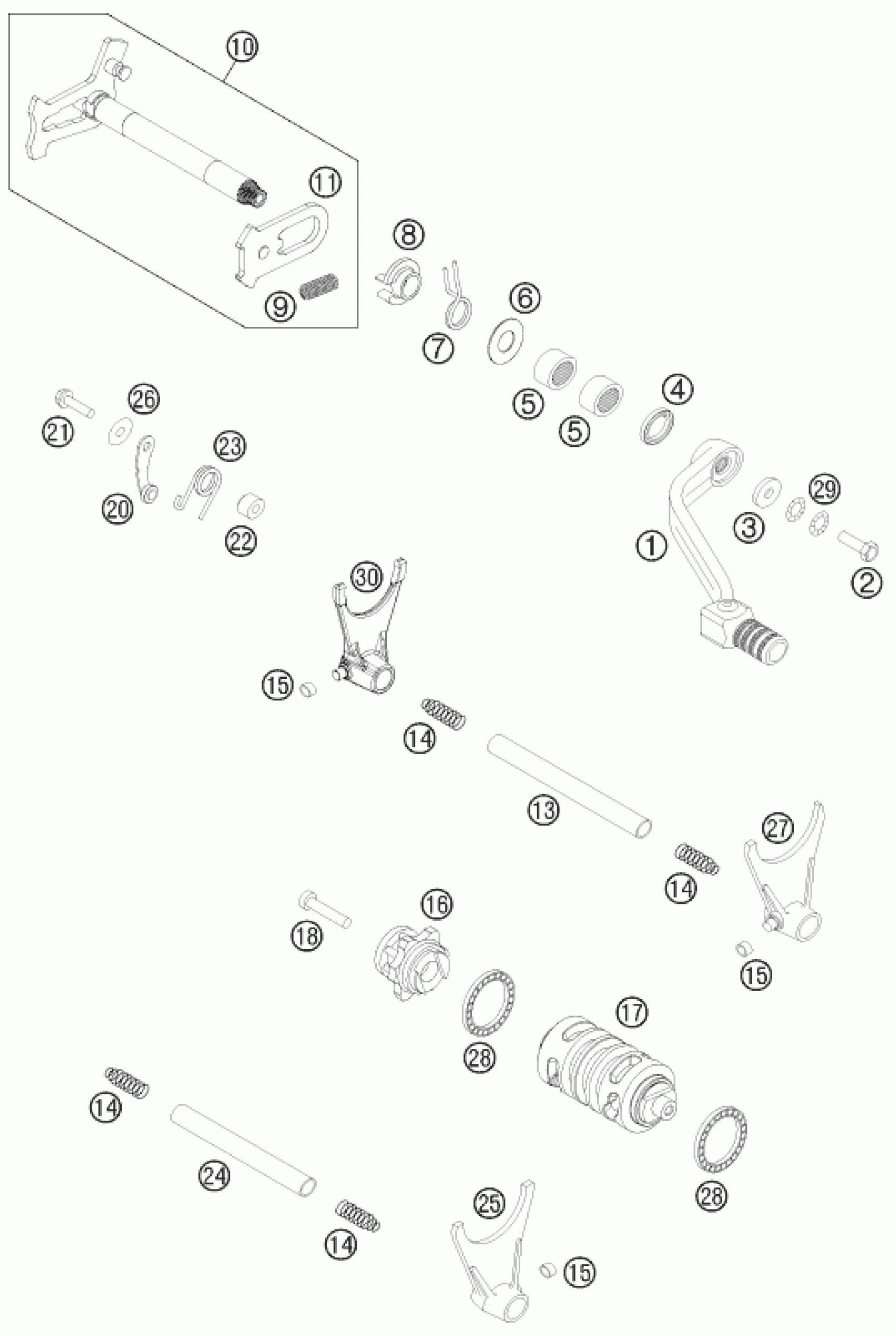

KTM 450 XC- F 2014 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT LEVER CPL.RACING 2000

59034031000

$87.69

2

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

3

STEEL WASHER 6,4X17X3

50232050001

$5.23

4

radial shaft seal 14x24x6 B

0760142460

$9.25

5

needle sleeve HK 1412 14x20x12

54632095000

$7.00

6

STOP DISK 14X30X1

54634050000

$2.05

7

RETURN SPRING 2,2MM '95

54634014100

$6.63

8

SPRING GUIDE

54634020000

$6.44

9

TENSIONING SPRING 0,8MM

56534013100

$1.49

10

SHIFT SHAFT CPL.

78034005144

$97.89

11

SLIDING PLATE CPL.

54634008044

$10.46

13

SHIFT RAIL 11,8X101,5

78034020000

$15.04

14

PRESSURE SPRING 0,9MM

58038023200

$4.11

15

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

16

SHIFT DRUM LOCATING ALU CPL.

78134015044

$47.68

17

SHIFT ROLLER

78934112000

$57.31

18

AH SCREW DIN6912 M6X30 8.8

0012060303

$1.49

20

LOCKING LEVER CPL.

78134024044

$14.58

21

HH collar screw M5x20 TX30

0025050206

$2.05

22

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

23

ARRESTING LEVER SPRING 03

60034023000

$2.05

24

SHIFT RAIL 11,8X85

78034019000

$10.84

25

SHIFT FORK 5./6.GEAR 2000

59034001000

$41.51

26

washer DIN 9021 A - 5.3

0021050003

$1.49

27

SHIFT FORK 2./4.GEAR 2000

59034002000

$40.48

28

BALL BEARING 61805 C3

0625618050

$43.94

29

Pair of washers M6 NORDLOCK

50233041000

$4.11

30

SHIFTING FORK 1ST/3RD GEAR

78034003000

$40.20
