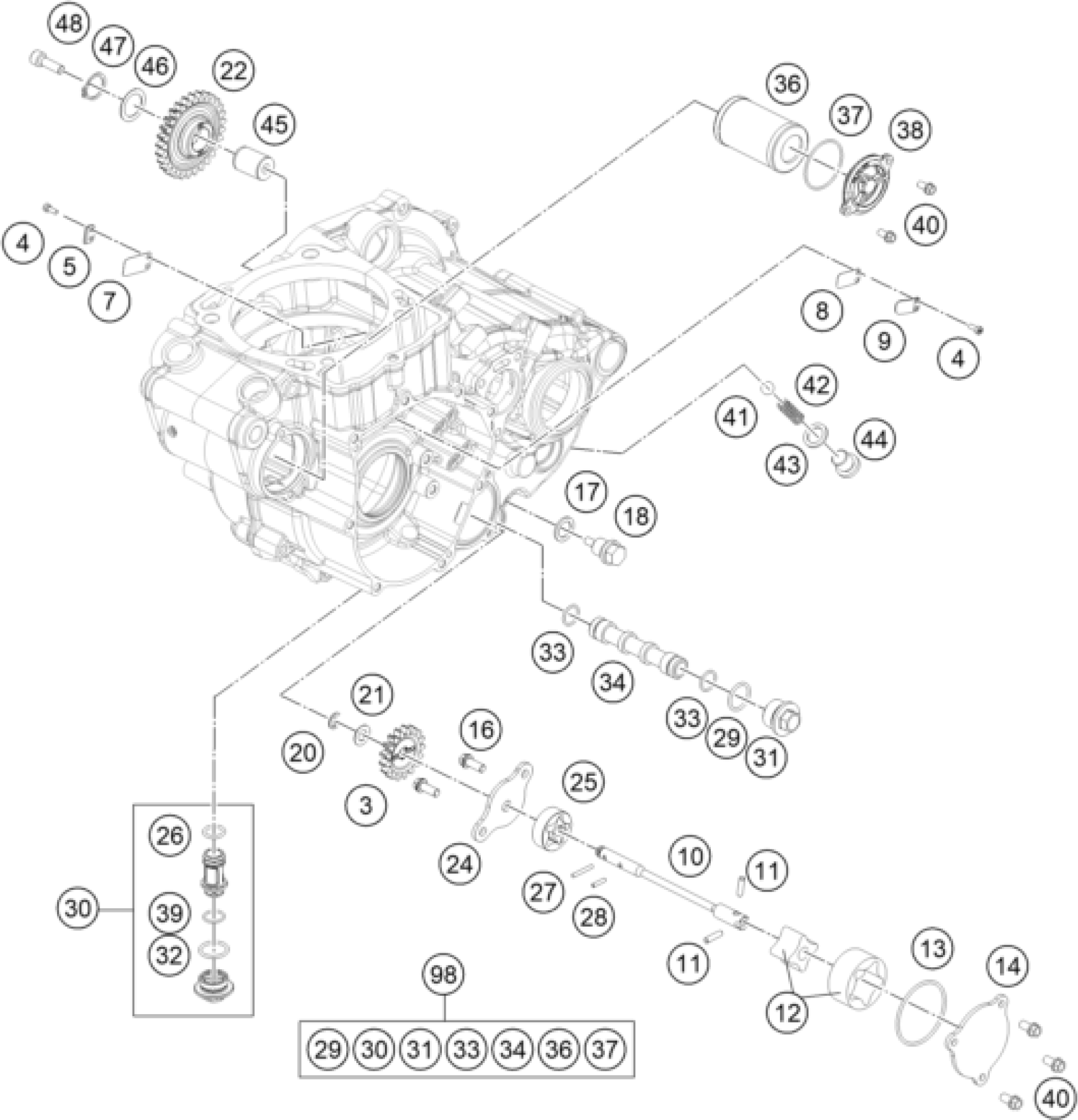

KTM 450 XC- F 2014 LUBRICATING SYSTEM Diagram

AH SCREW DIN0912-M 6X20 SS

0912060208

$2.05

OILFILTER SERVICEKIT SX-F 15

78938015010

Unavailable

OIL PUMP GEAR 17 T

78038001017

$5.23

CYLIND.SCREW M3X8 ISO 14580 SS

0458030080

$3.08

STOP SHEET MEMBRANE 07

75030003050

$2.05

MEMBRANE 07

75030003051

$2.24

MEMBRAN CRANKCASE

81205027003

$5.23

TAB WASHER MEMBRAN CSC

81205027004

$5.23

OIL PUMP SHAFT SP-DP

78138102000

$25.42

needle roller NRB 4x15.8 G2

0402041580

$2.05

ROTOR-SET CPL. 22MM

61238111000

$16.63

O-RING 44,00X2,00 VITON

0770440020

$3.08

OIL PUMP COVER SUCTION PUMP

78038004000

$25.61

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

IDLER GEAR 1 29Z

78138001029

$5.98

OIL PUMP COVER

78138003000

$21.31

OILPUMP ROTOR 12MM G-95R/003

59038011012

$44.87

O-RING 12X2 VITON GREEN

0770012021

$2.05

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

O-RING 12,5X1,5 NBR

0770125015

$2.05

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

$1.49

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

BUSHING PIN

78040028000

$6.91

SHIM WASHER DIN0988-17X24X0,5

0988172405

$2.05

CIRCLIP DIN0471-17X1

0471170010

$2.05

O-RING 17,17X1,78 GLO

0770020170

$2.05

OIL SCREEN CPL.

78138015001

$34.96

PLUG M20X1,5 WS=13

59038017000

$7.85

O-RING 17,00X2,00

0770170200

$2.05

O-RING 12,5X1,5 VITON V75

07701250151

$4.11

OIL SCREEN

59038016100

$7.00

OIL FILTER WITH GASKET 06

77038005044

$8.69

O-RING 39,34X2,62

07700390261

$2.05

oil filter cover

75038041200

$8.13

HH collar screw M5x16 TX30

0025050166

$2.05

BALL DIN5401-9

0401090003

$2.05

PLUG SCREW SAS M12X1,5

78036024000

$9.72
