ENGINE CASE

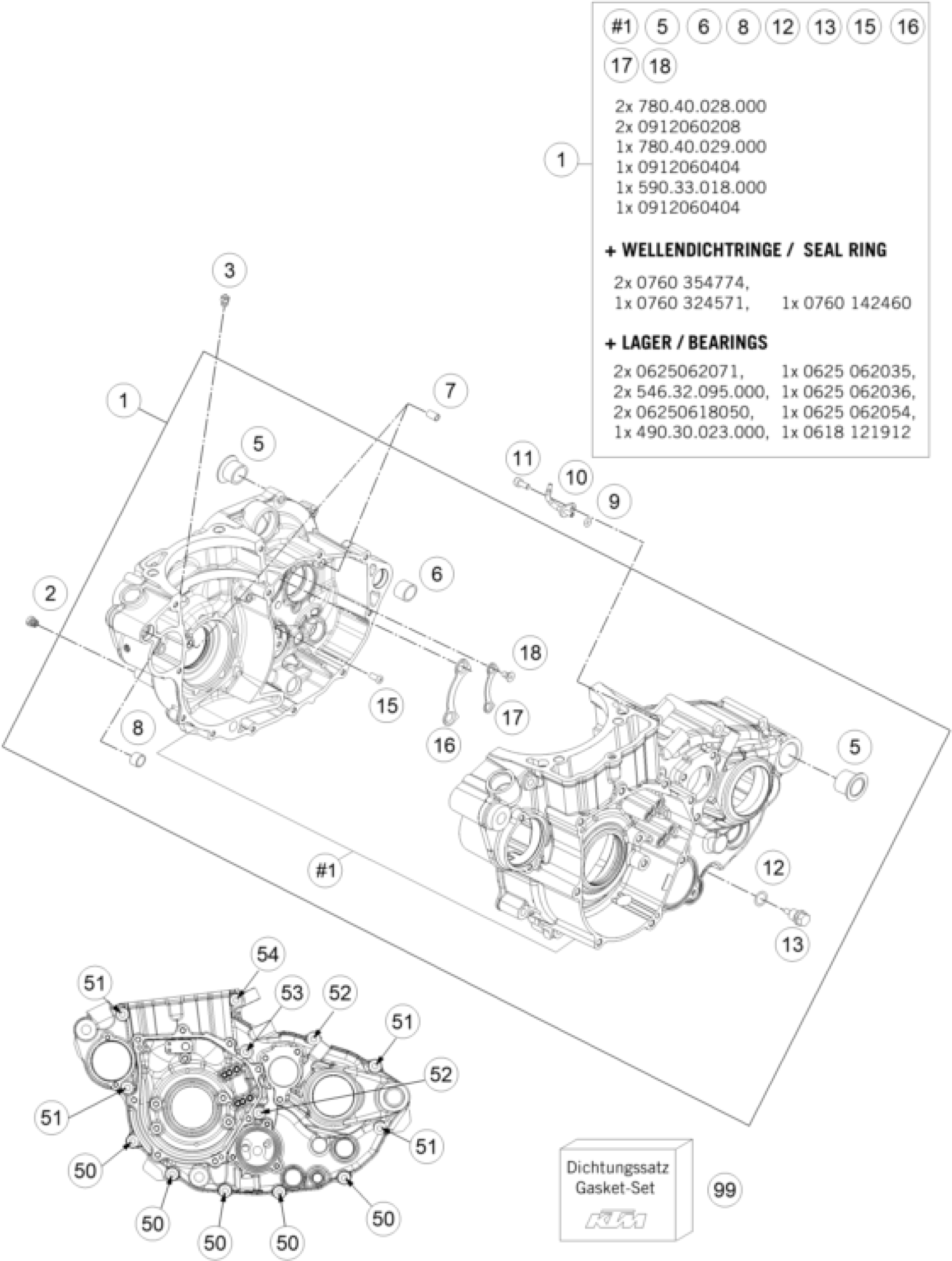

KTM 450 XC- F 2014 ENGINE CASE Diagram
#
Description
Price
1
ENGINE CASE CPL.
78130100033
$972.05
2
MAIN JET 145
57031523145
$7.75
3
oil jet 70 M5
60030063070
$8.59
5
CASE BUSH
75030010100
$12.33
6
DOWEL 21X12 03
54830027000
$5.23
7
dowel sleeve 6x8x11.5
59030023000
$1.49
8
DOWEL 17 X 13 X 12
51030026100
$6.44
9
O-RING 3,5X2,00 NBR
0770035020
$1.49
10
OIL JET ANGLED 70
81230064000
$12.15
11
AH.SCREW DIN0912-M 4X10
0912040103
$2.05
12
CU-seal ring DIN7603-12X18X1.5
58038022000
$2.05
13
OILDRAIN PLUG W.MAG. M 12X1,5
58030021000
$11.30
15
INT. TORX OVAL HEAD M 5X10 8.8
0018050103
$1.49
16
TAB WASHER BEARING MAIN SHAFT
78033032000
$5.51
17
TAB WASHER BEARING COUNT.SHAFT
78033132000
$5.23
18
INT. TORX FLAT HEAD M5X12 T25
0019050121S
$2.05
50
HH collar screw M6x40 TX30
0025060406
$3.08
51
HH collar screw M6x60 TX30
0025060606
$3.08
52
HH COLLAR SCREW M6X75 TX30
0025060756
$3.08
53
HH COLLAR SCREW M6X80 TX30
0025060806
$2.05
54
HH COLLAR SCREW M6X85 TX30
0025060856
$3.08
99
GASKET SET 450/500 EXC 12
78130099000
$229.16
