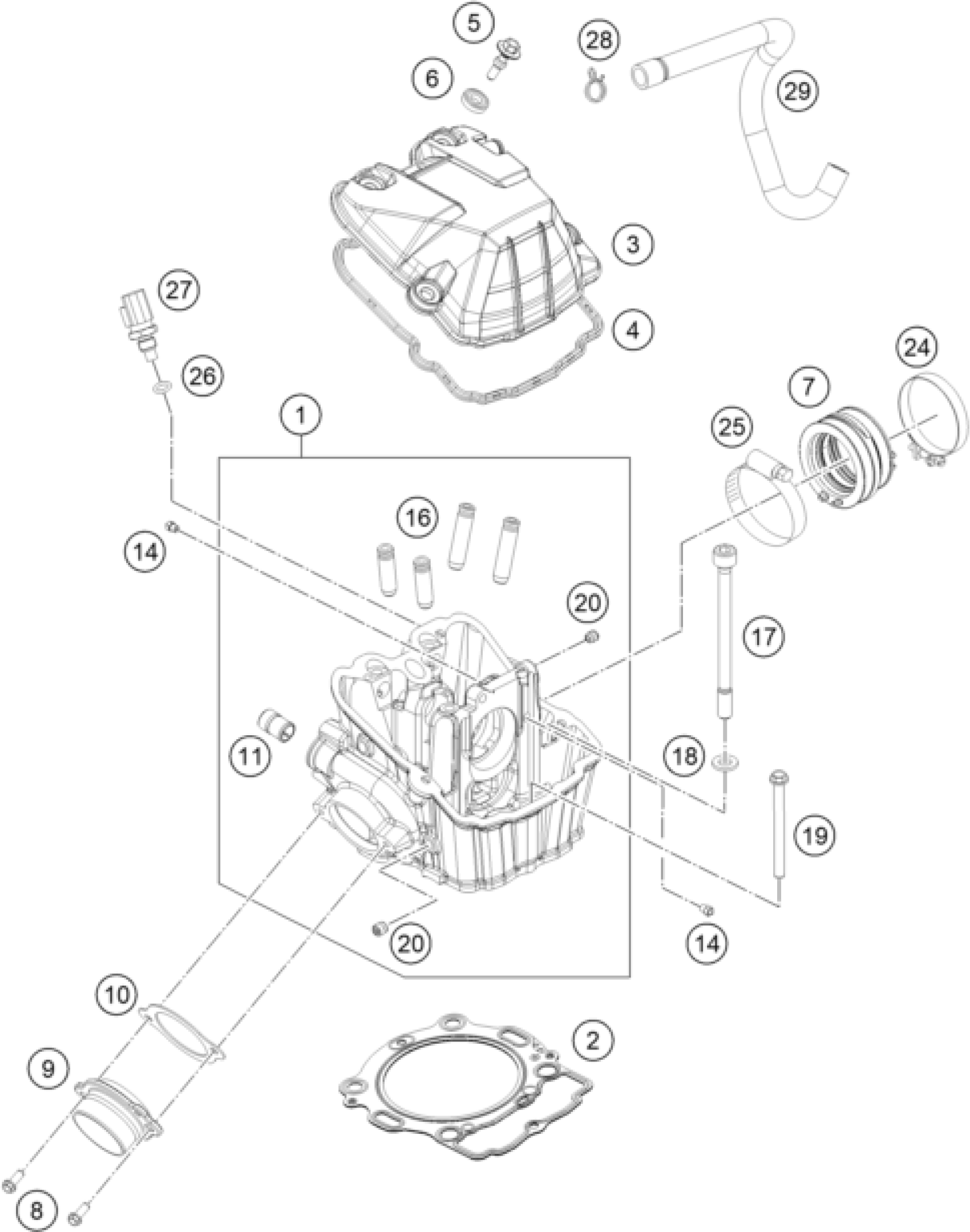

KTM 450 XC- F 2014 CYLINDER HEAD Diagram

CYLINDER HEAD CPL.

78936020044

$783.16

CYLINDER HEAD GASKET S=1.0

78930036010

$94.80

VALVE COVER BLACK MATT

7803605200033

$48.89

VALVE COVER GASKET

78036053100

$9.90

VALVE COVER SCREW

78036054100

$6.63

decoupling element

75036052010

$4.11

RUBBER BOOT EFI

77736044000

$36.27

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

EXHAUST FLANGE

78136139000

$36.55

o-ring 10.00x2.00 silicone

0770100020

$2.05

EXHAUST FLANGE GASKET

78036041000

$3.08

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

oil jet 70 M5

60030063070

$8.59

VALVE GUIDE INTAKE

78136025001

$25.42

CYL. HEAD SCREW M10X1,25 L=125

78030044000

$6.35

washer 19x10.5x2.5

77336089010

$4.11

HH COLLAR SCREW M6X70 TX30

0025060706

$3.08

SCREW PLUG

59030296000

$6.26

Hose clamp GEMI 63mm 05

61036047000

$7.56

Hose clip GEMI 58

77236048000

$12.05

TEMPERAT.-SENSOR WATER LC8 02

60011252000

$36.64

CLAMP YDNAC 10173 (18MM)

58431082300

$2.05

ENGINE BREATHER TUBE

78130087000

$25.05
