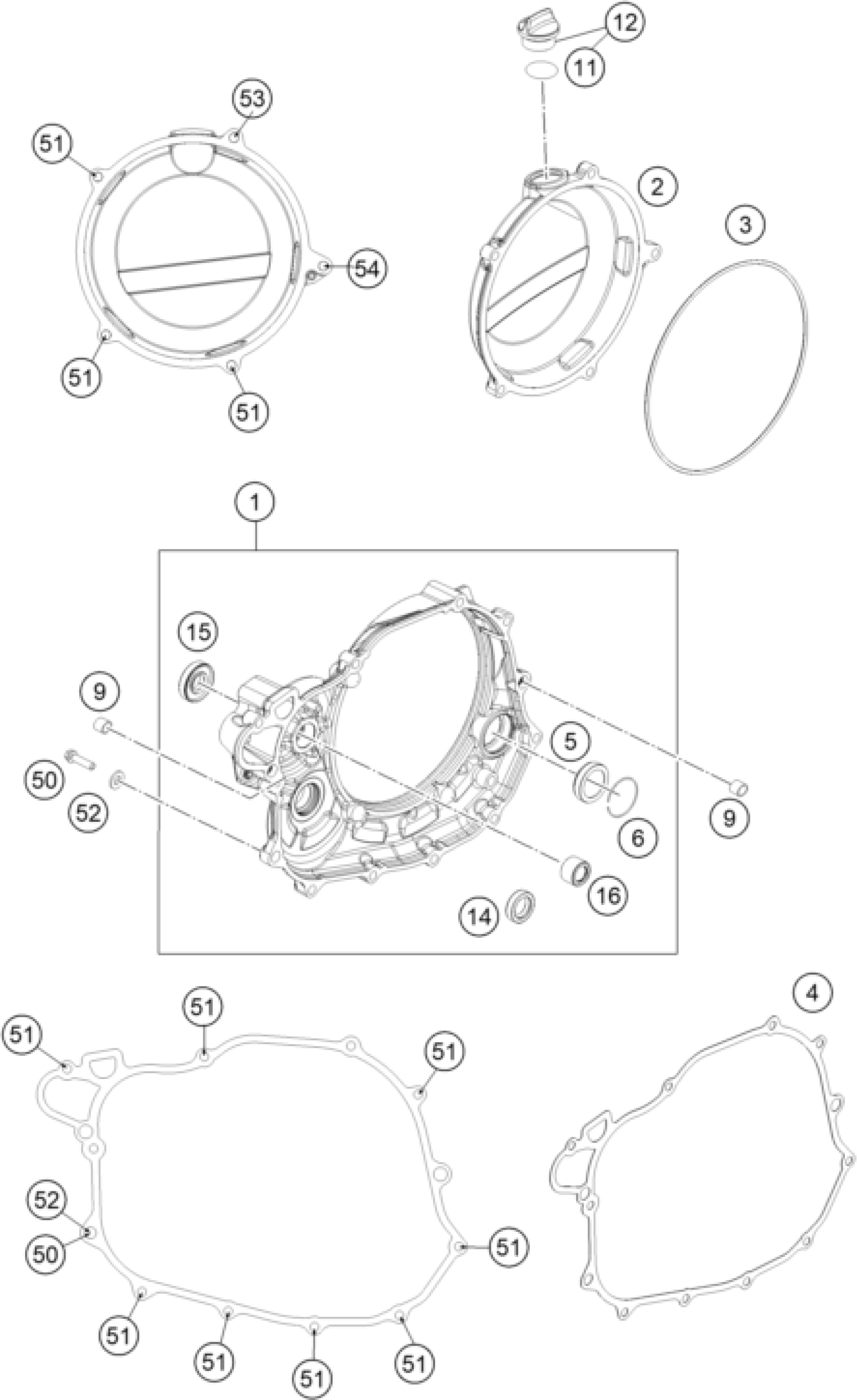

KTM 450 XC- F 2014 CLUTCH COVER Diagram

CLUTCH COVER CPL.

78130101044

$122.43

CLUTCH COVER OUTSIDE

7813002600015

$91.25

GASKET - CLUTCH OUTER COVER

78130027000

$12.61

CLUTCH COVER GASKET

78130125000

$22.34

OIL LEVEL GLASS VITON

78030095100

$14.02

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

DOWEL 9,8 X 7 X 10

49030090000

$2.05

O-RING 19,00X3,00 NBR

0770191015

$2.05

OIL FILLER CAP M24x3 W. O-R

58030120000

$8.03

radial shaft seal 14x24x6 B

0760142460

$9.25

SHAFT SEAL RING 12X30X7 PTFE

0760123073

$12.52

NEEDLE BUSH NK1212

0618121912

$20.09

LOCATING SCREW

78030080000

$4.11

HH collar screw M6x25 TX30

0025060256

$3.08

CU-SEAL RING 8 X 14 X 3

58030081000

$2.05

HH collar screw M6x55 TX30

0025060556

$3.08

HH collar screw M6x60 TX30

0025060606

$3.08
