Description

Price

1

E-STARTER CPL. 0,5KW

78140001000

$276.56

2

HH collar screw M6x25 TX30

0025060256

$3.08

3

O-RING 25,00X3,00 NBR 70

0770250030

$3.08

4

AH SCREW DIN0912-M 6X40 A2

0912060404

$2.05

5

STOP DISC 6X23X2

78040016004

$3.08

6

BEARING BOLT

78040029000

$6.54

8

AH SCREW DIN0912-M 6X20 SS

0912060208

$2.05

14

SHIM WASHER DIN0988-17X24X0,5

0988172405

$2.05

15

TORQUE LIMITER CPL.

78040016100

$177.92

16

CIRCLIP DIN0471-17X1

0471170010

$2.05

19

IDLER GEAR 30-T CPL.

78940022000

$51.70

20

BUSHING PIN

78040028000

$6.91

21

FREEWHEEL GEAR 66 C CPL.

78940020033

$119.95

23

FREE WHEEL

75040026000

$108.64

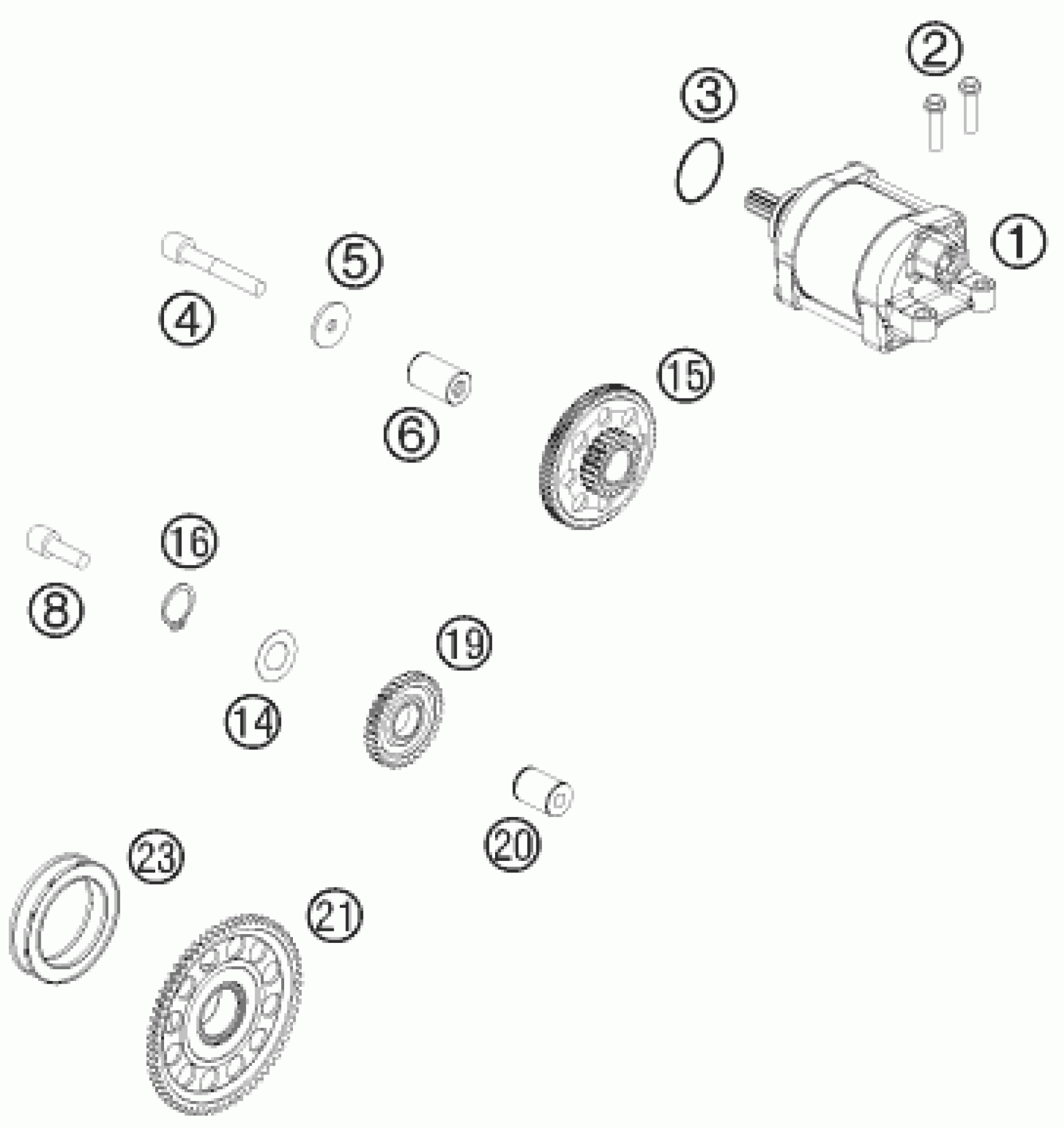

KTM 450 XC- F 2013 ELECTRIC STARTER Diagram

E-STARTER CPL. 0,5KW

HH collar screw M6x25 TX30

O-RING 25,00X3,00 NBR 70

AH SCREW DIN0912-M 6X40 A2

STOP DISC 6X23X2

BEARING BOLT

AH SCREW DIN0912-M 6X20 SS

SHIM WASHER DIN0988-17X24X0,5

TORQUE LIMITER CPL.

CIRCLIP DIN0471-17X1

IDLER GEAR 30-T CPL.

BUSHING PIN

FREEWHEEL GEAR 66 C CPL.

FREE WHEEL
