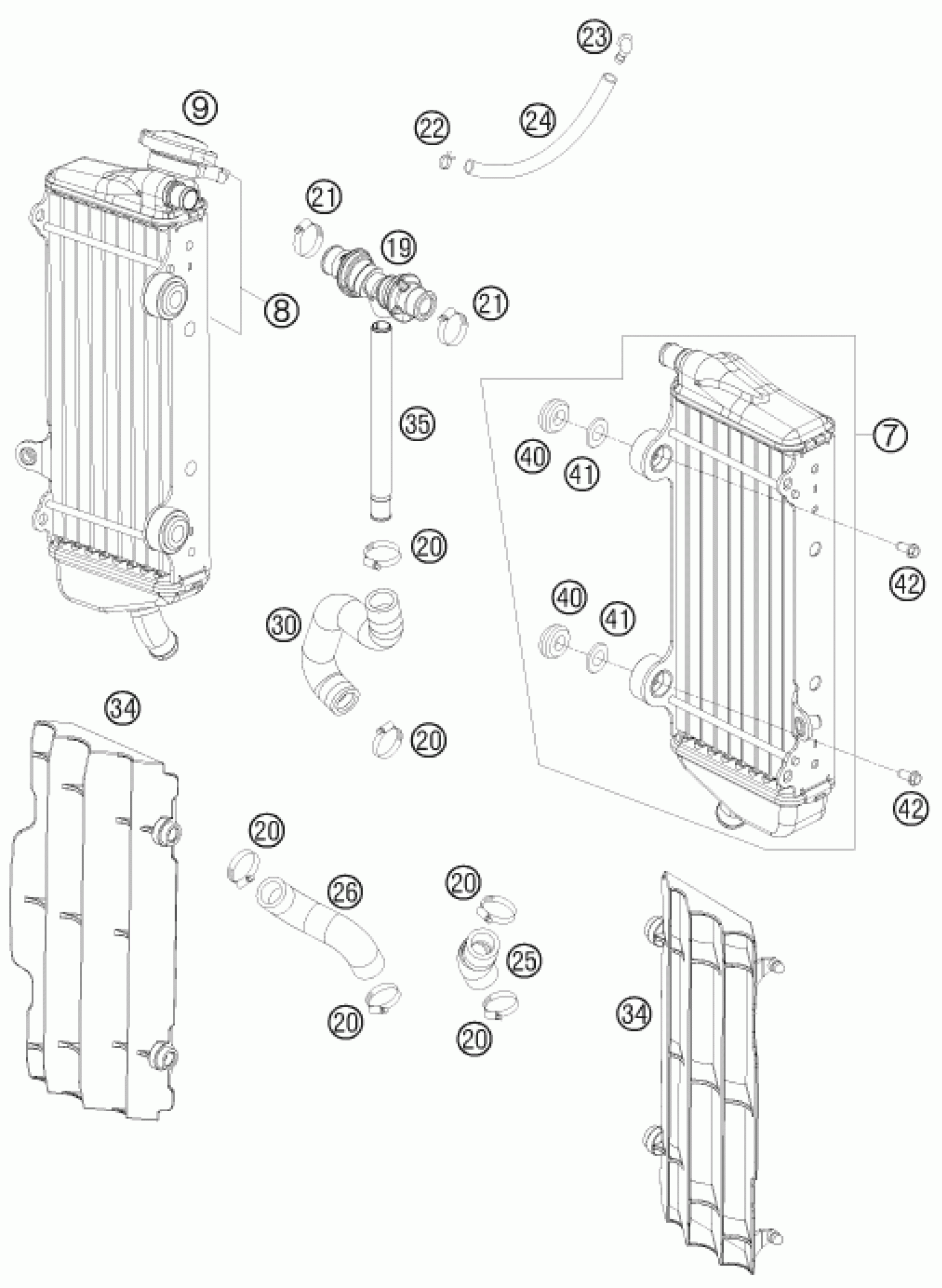

KTM 450 XC- F 2013 COOLING SYSTEM Diagram

RADIATOR L/S ''55623U'' 12

77035007300

$285.26

RADIATOR R/S ''55637U'' 13

77235008100

$225.23

RADIATOR CAP SMALL 1,8 BAR

77335016000

$22.62

Y-CONNECTOR CPL.

77235071044

$53.38

HOSE CLAMP GEMI 18-29

10001020000

$2.05

HOSE CLAMP NORMA 14/24

42013037400

$2.05

ANGLE PIECE '97

50303089000

$5.23

PVC-HOSE 6X9

50335030001

Unavailable

RADIATOR HOSE L/S 2012

78135025000

$10.09

RADIATOR HOSE R/S 2012

78135027000

$10.65

PREFORMED HOSE ENGINE/COOLER

78935024000

$13.27

RADIATOR PROTECTION BLACK 07

7733503400030

$10.74

RADIATOR PROTECTION orange

7733503400004

Unavailable

HOSE CONNECTOR L=172,5

77235073000

$23.93

RUBBER SLEEVE D=12MM

41001052000

$4.11

WASHER FOR RADIATOR 08

77335001000

$2.05

COLLAR SCREW M6X12 TX

0023060123

$2.05

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05
