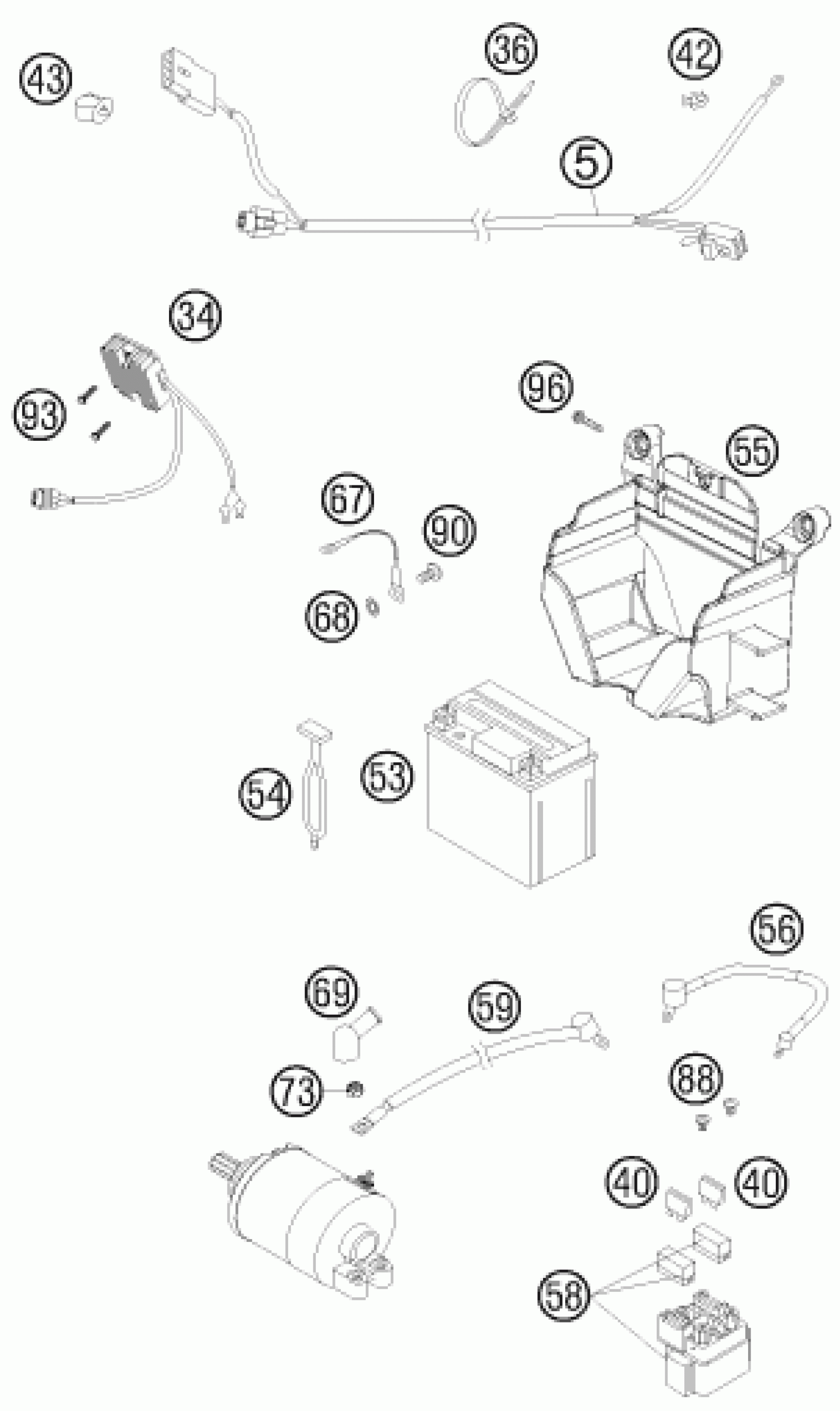

KTM 450 XC-F 2008 WIRING HARNESS Diagram

#

Description
Price

36

Cable tie 200/4.6mm black

44011076200

Unavailable

36

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

40

Plug-in fuse, big 10A

58011109110

$2.05

42

WIRING HOLDER 16MM

57013072100

Unavailable

43

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

53

BATTERY 12V 4AH YTX5L-BS

58511053000

$112.10

54

RUBBER L=145MM

50303018000

$6.44

55

BATTERY CASE EXC 08

78011055000

$4.03

56

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

58

Starter reley 12V 99

58211058000

$72.64

59

STARTERCABLE 700 MM '97

58411059100

$23.65

67

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

68

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

69

PROTECTION CAP F. STARTER ENG.

58440099000

$5.23

73

Self lock. nut DIN985-M6-A2

0985060003

$2.05

88

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

90

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

93

HH collar screw M6x20 TX30

0025060206

$3.08

96

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

5

MAIN WIRING HARNESS 450 SX-F

77311075000

$20.90

34

VOLTAGE REGULATOR ''RS2759'' 0

77311034000

$188.39
