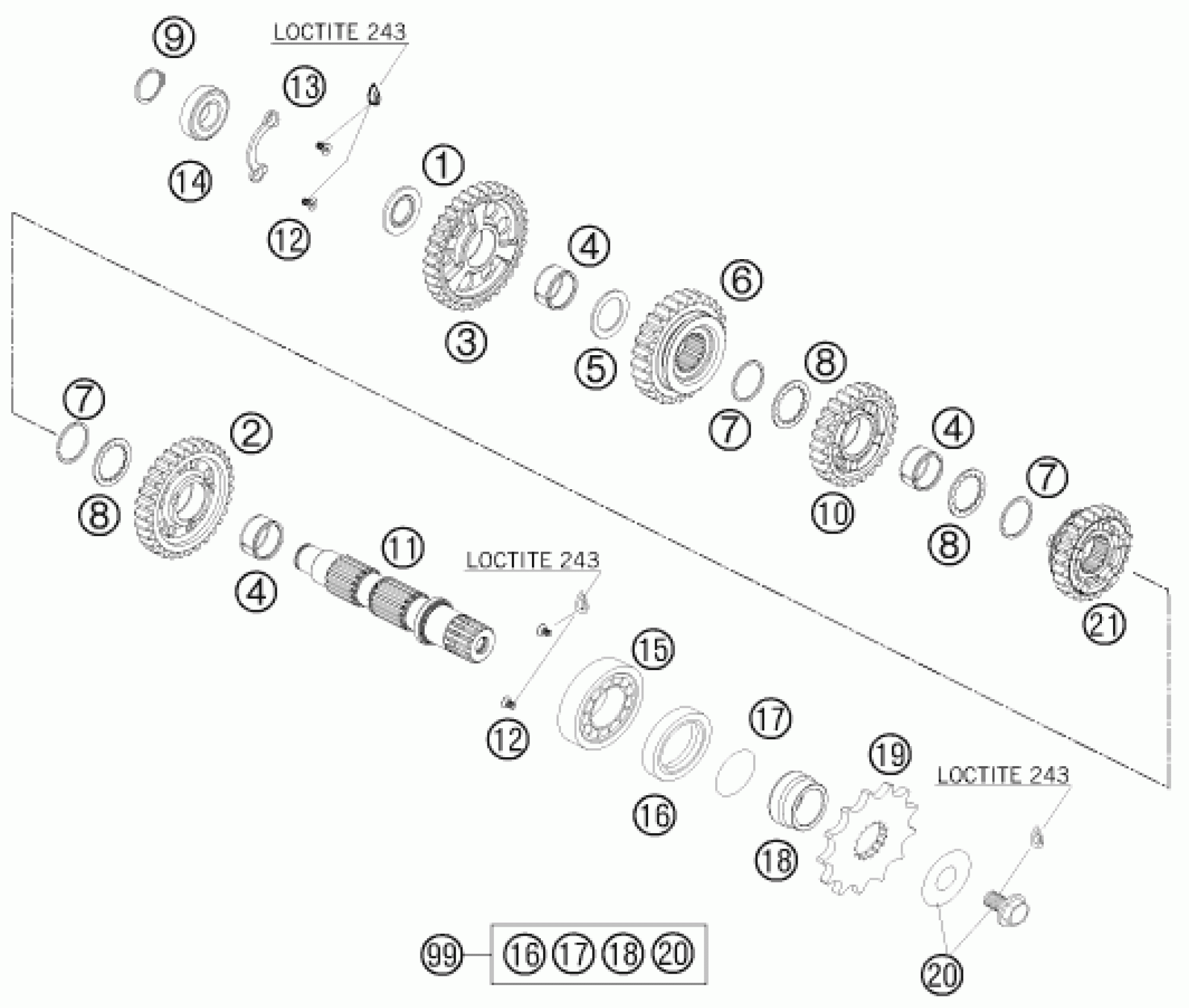

KTM 450 XC-F 2008 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

6

SLIDING GEAR 3RD G

77333313000

$103.18

1

STOP DISC 17,1X32X2,6

77333045000

$5.23

2

IDLER GEAR 2.G

77333312000

$97.60

3

IDLER GEAR 1.G

77333311000

$110.51

4

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

5

STOP DISC 22,2X32X1,5

77333044000

$5.23

7

CIRCLIP SW25

0417025000

$3.08

8

STOP DISK 23 X 32 X 1,5

78033033000

$3.08

9

CIRCLIP DIN 0471-17X1, 5

0471170015

$1.49

10

IDLER GEAR 4TH. G.

77333314000

$109.57

11

COUNTERSHAFT

77333310000

$121.26

12

INT TORX FLAT HEAD M 5X10 8.8

0019050103

$2.05

13

BUSHING RETAINING PLATE

77333024100

$4.11

14

BALL BEARING 6203 RSH C3

0625062036

$16.17

15

CYL.ROLLER BEARING NUP205E C3

0402255215

$79.75

16

Radial shaft seal 35X47X7 TC

0760354771

$8.69

17

O-RING 25,00X1,50 NBR 70

0770250015

$1.49

18

SPACER BUSHING

77333219000

$16.46

19

FRONT SPROCKET 13-T

50033029013

Unavailable

19

FRONT SPROCKET 14-T

50033029014

Unavailable

19

FRONT SPROCKET 15-T

50033029015

Unavailable

20

SCREW 10.9+SPRING WASHER

59033034044

$7.85

21

SLIDING GEAR 5TD G

77333315000

$95.59

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000945

Unavailable
