Description

Price

13

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

14

IDLER GEAR 5G

77333305000

$105.83

15

SOLID GEAR

77333302000

$62.92

16

STOP DISC 17,2X30X1

56033030000

$4.11

1

MAIN SHAFT

77333301000

$162.31

2

GUIDE BUSHING

77333001160

$5.23

3

NEEDLE BEAR.K 24X28X13 DIVIDED

0405242813G

$18.50

4

IDLER GEAR 3 G

77333303000

$133.42

5

STOP DISK 26 X 32 X 1,5

78033031000

$3.08

6

CIRCLIP SW25

0417025000

$3.08

7

SLIDING GEAR 4.G

77333304000

$104.90

8

STOP DISK 23 X 32 X 1,5

78033033000

$3.08

9

INT TORX FLAT HEAD M 5X10 8.8

0019050103

$2.05

10

BALL BEARING 6205 C3 NTN

0625062054

$20.66

11

BUSHING RETAINING PLATE

77333022100

$4.11

12

BALL BEARING 6203 RSH C3

0625062036

$16.17

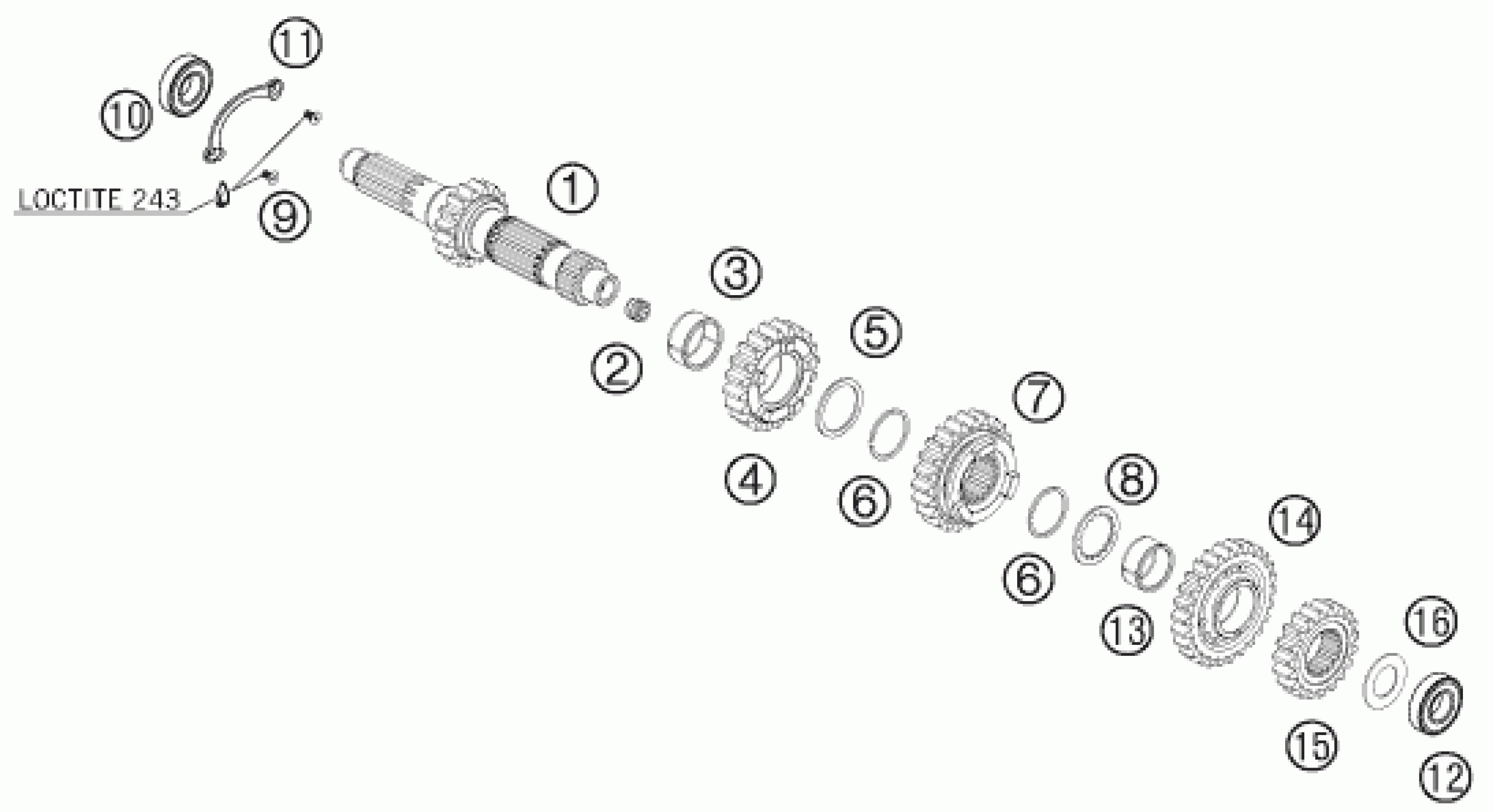

KTM 450 XC-F 2008 TRANSMISSION I - MAIN SHAFT Diagram

NEEDLE BEAR. K 22X26X13 TN

IDLER GEAR 5G

SOLID GEAR

STOP DISC 17,2X30X1

MAIN SHAFT

GUIDE BUSHING

NEEDLE BEAR.K 24X28X13 DIVIDED

IDLER GEAR 3 G

STOP DISK 26 X 32 X 1,5

CIRCLIP SW25

SLIDING GEAR 4.G

STOP DISK 23 X 32 X 1,5

INT TORX FLAT HEAD M 5X10 8.8

BALL BEARING 6205 C3 NTN

BUSHING RETAINING PLATE

BALL BEARING 6203 RSH C3
