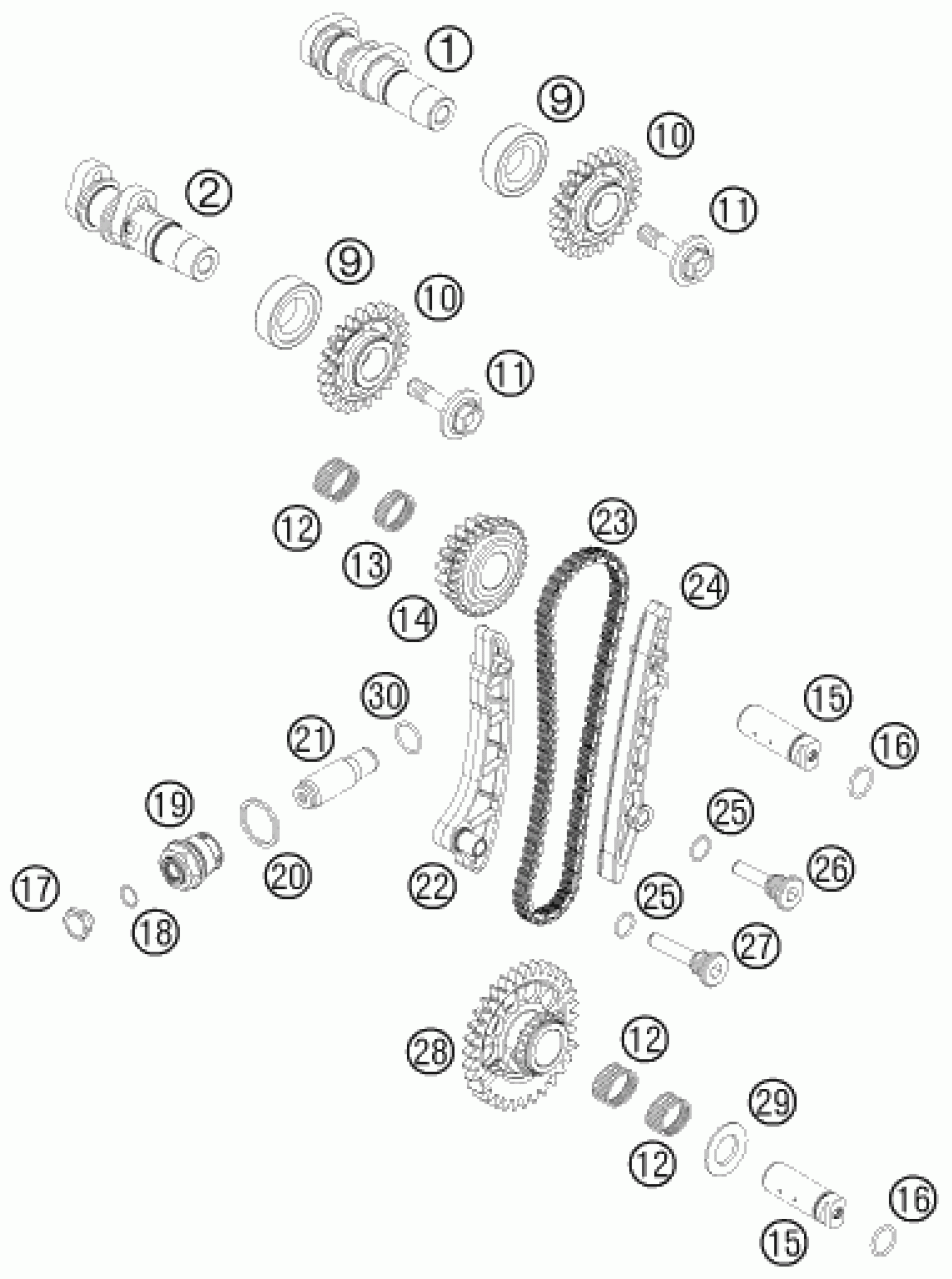

KTM 450 XC-F 2008 TIMING DRIVE Diagram

#

Description
Price

23

TIMING CHAIN 07

77336013100

$79.93

24

GUIDE RAIL 07

77336001100

$7.56

25

O-RING 12,00X1,50 NBR

0770012015

$1.49

26

BUSHING SCREW

77336091000

$17.20

27

BUSHING SCREW

77336091100

$16.03

28

BALANCER GEAR

77330057200

$125.47

29

STOP DISC 18/32/1,4/2,7

77330058000

$5.23

30

o-ring 18.00x2.00 NBR70

0770180020

$2.05

1

CAMSHAFT INTAKE 07

77336009100

$192.51

2

CAMSHAFT EXHAUST CPL. 08

77336010344

$429.72

9

CYL.ROLL BEARING RNU203ETVP2

0402174012

$51.23

10

CAMSHAFT GEAR 07

77336011000

$87.51

11

SCREW MW M10-1,0X38

77336076100

$6.35

12

NEEDLE BEAR K 18X22X13

0405182213

$8.50

13

NEEDLE BEARING K 18X22X10 02

0405182210

$8.41

14

DOUBLE GEAR W.CPL. Z18/Z30 07

77336070177

$109.11

15

AXLE FOR TIMING VALVE 06

77336075000

$25.80

16

O-RING 15,00X1,80

0770015018

$2.05

17

HOLDING BOLT

77336008010

$8.31

18

o-ring 10.00x1.00 NBR70

0770010010

$2.05

19

HOLDING BOLT M24X1,5

77336008000

$20.56

20

CU SEAL-RING DIN7603 A24X29X2

0603242920

$3.08

21

CHAIN ADJUSTER HYD. 05

77036003000

$73.86

22

TENSIONER RAIL CPL. 07

77336002177

$20.47
