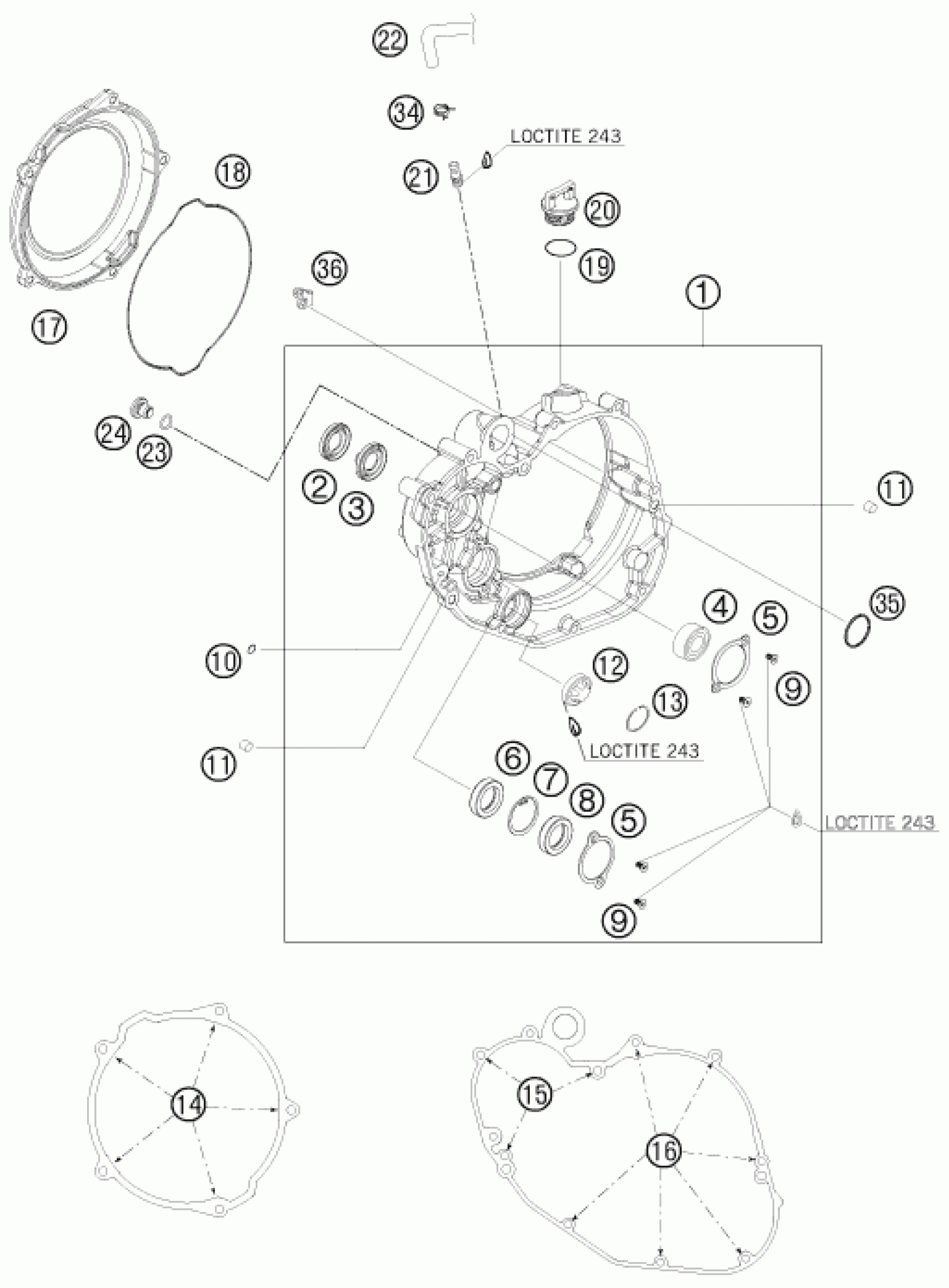

KTM 450 XC-F 2008 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER CPL.

77330001144

$206.99

2

SHAFT SEAL RING 12x24x4

77335057000

$11.49

3

SHAFT SEAL RING 12x24x4/5,5

77335056000

$12.05

4

BALL BEARING 6202 C0 2RSH

0625062021

$19.91

5

RETAINING PLATE FOR WAPUSTOCK

77335064100

$4.11

6

SHAFT SEAL RING 20X30X7

0760203070

$2.76

7

CIRCLIP 30X1,2

0472300120

$1.49

8

SHAFT SEAL RING 25x35x7 BSL VI

0760253574

$10.65

9

INT TORX FLAT HEAD M 5X10 8.8

0019050103

$2.05

10

O-RING 8,00X1,5 NBR 70

0770080015

$1.49

11

CYLINDER ROLLER ZRO. 8,0X12 M4

0402080120

$2.05

12

OIL LEVEL GLASS G 1777 Y

59030019000

$21.31

13

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

14

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

15

SCREW M7-1,0X45

77330067145

$3.08

16

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

17

CLUTCH COVER OUTSIDE 07

77330026100

$50.67

18

CLUTCH CASE GASKET

77330027000

$9.62

19

O-RING 19,00X3,00 NBR

0770191015

$2.05

20

oil plug cpl. M24x3

58030020100

$5.23

21

BLEEDER FLANGE M12X1,5 WS=13

59030022100

$7.85

22

ENGINE BREATHER TUBE

77330086000

$8.98

34

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

35

QUAD-RING 28,3X1,78 VITON

77335005000

$4.11

36

SPRING BRACKET

77303026054

$5.98

23

O-RING 9x1,5 V80 SH

07700900151

$2.05

24

SCREW PLUG

77336056095

$7.00
