CARBURETOR

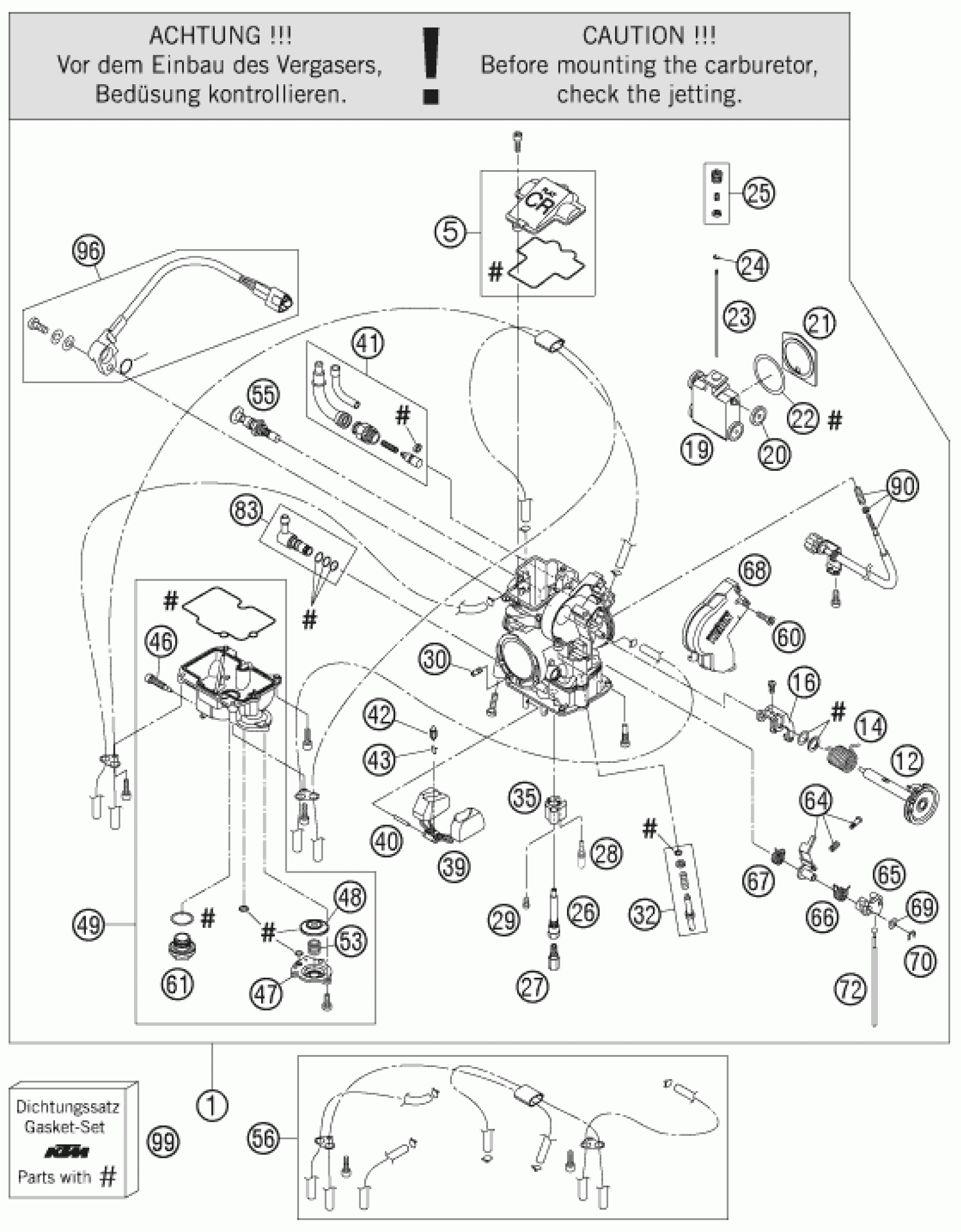

KTM 450 XC-F 2008 CARBURETOR Diagram
#
1
CARBURETOR FCR-MX 4125I,TPS
77331001100
$872.14
5
CARBURETOR COVER WITH GASKET
57331027044
$39.26
12
THROTTLE SHAFT CPL. 06
57331046100
$91.58
14
COIL SPRING THROTTLE SHAFT
57331046050
$9.15
16
LINK ARM THROTTLE VALVE CPL.07
76231035051
$93.77
19
THROTTLE VALVE CPL. FCRMX 2007
57331035100
$346.15
20
BUSHING THROTTLE VALVE
59031035050
$10.65
21
GASKET PLATE THROTTLE VALVE 04
57331035153
$191.85
22
GASKET WASHER THROTTLE VALVE
59031035052
$17.94
23
JET NEEDLE KEIHIN OBDTM
59031021000
Unavailable
23
JET NEEDLE KEIHIN OBDTN
59031034000
Unavailable
23
JET NEEDLE KEIHIN OBDTP
59031034400
Unavailable
23
JET NEEDLE KEIHIN OBDTQ
59031034500
Unavailable
23
JET NEEDLE KEIHIN OBDTR
59031034600
Unavailable
24
BAR CLIP
59031029000
$5.23
25
NEEDLE SET SCREW CPL.
57331032000
$40.10
26
NEEDLE JET FCR-MX
59031121000
$32.72
27
MAIN JET 180 KEIHIN
54531623180
Unavailable
27
MAIN JET 182 KEIHIN
54531623182
Unavailable
27
MAIN JET 185 KEIHIN
54531623185
Unavailable
27
MAIN JET 188 KEIHIN
54531623188
Unavailable
27
MAIN JET 190 KEIHIN
54531623190
Unavailable
27
MAIN JET 192 KEIHIN
54531623192
Unavailable
27
MAIN JET 195 KEIHIN
54531623195
Unavailable
28
IDLE JET 40 KEIHIN
54531607040
Unavailable
28
IDLE JET 42 KEIHIN
54531607042
Unavailable
28
IDLE JET 45 KEIHIN
54531607045
Unavailable
29
STARTER JET 85
59031051085
$16.73
30
IDLE AIR JET 100 KEIHIN
57331107100
$14.76
32
ADJUST SCREW CPL. FCR-MX
59031017100
$19.63
35
BUFFER PLATE
57331085000
$12.33
39
FLOAT CPL.
57331009000
$59.64
40
ARM PIN FLOAT
57331008000
$2.05
41
HOT-STARTER VALVE
77031075000
$34.84
42
FLOAT NEEDLE
54631220000
$31.41
43
CLAMP
54531621000
$4.11
46
DRAIN SCREW + O-RING
76231155000
$8.97
47
COVER ACCELERATOR PUMP
57331060000
$27.01
49
FLOAT CHAMBER CPL. 08
78031011000
$178.48
53
COIL SPRING
59031059000
$7.38
55
STARTER VALVE SHORT CPL.
77031048000
$80.31
56
BREATH.HOSE FCR-MX KEIHIN CPL.
57331098000
$107.52
60
FLAT HEAD SCREW DIN0965-M 5X10
0965050103
$2.05
61
PLUG M 18X1
54531699000
$20.09
64
INTERMEDIATE LEVER CPL.
57331062000
$33.28
65
LINK LEVER
57331056000
$8.13
66
SPRING LINK LEVER
57331059000
$9.49
67
SPRING INTERMEDIATE LEVER
57331159000
$10.84
68
CARBURETOR COVER 06
57331038200
$8.13
69
WASHER LINK LEVER
57331087000
$2.05
70
E-CLIP
57331084000
$2.05
72
ROD ACCELERATOR PUMP
57331061000
$26.73
83
HOSE CONNECTOR CPL.
59031013044
$65.35
90
STOP SCREW CPL. FCR-MX
57331025000
$56.65
96
TPS-SENSOR FCRMX 190MM 2006
59031077200
$144.64
99
GASKET SET FCR-MX KEIHIN
57331099000
$119.67
48
DIAPHRAGM ACCELERATOR PUMP
57331057100
$30.66
