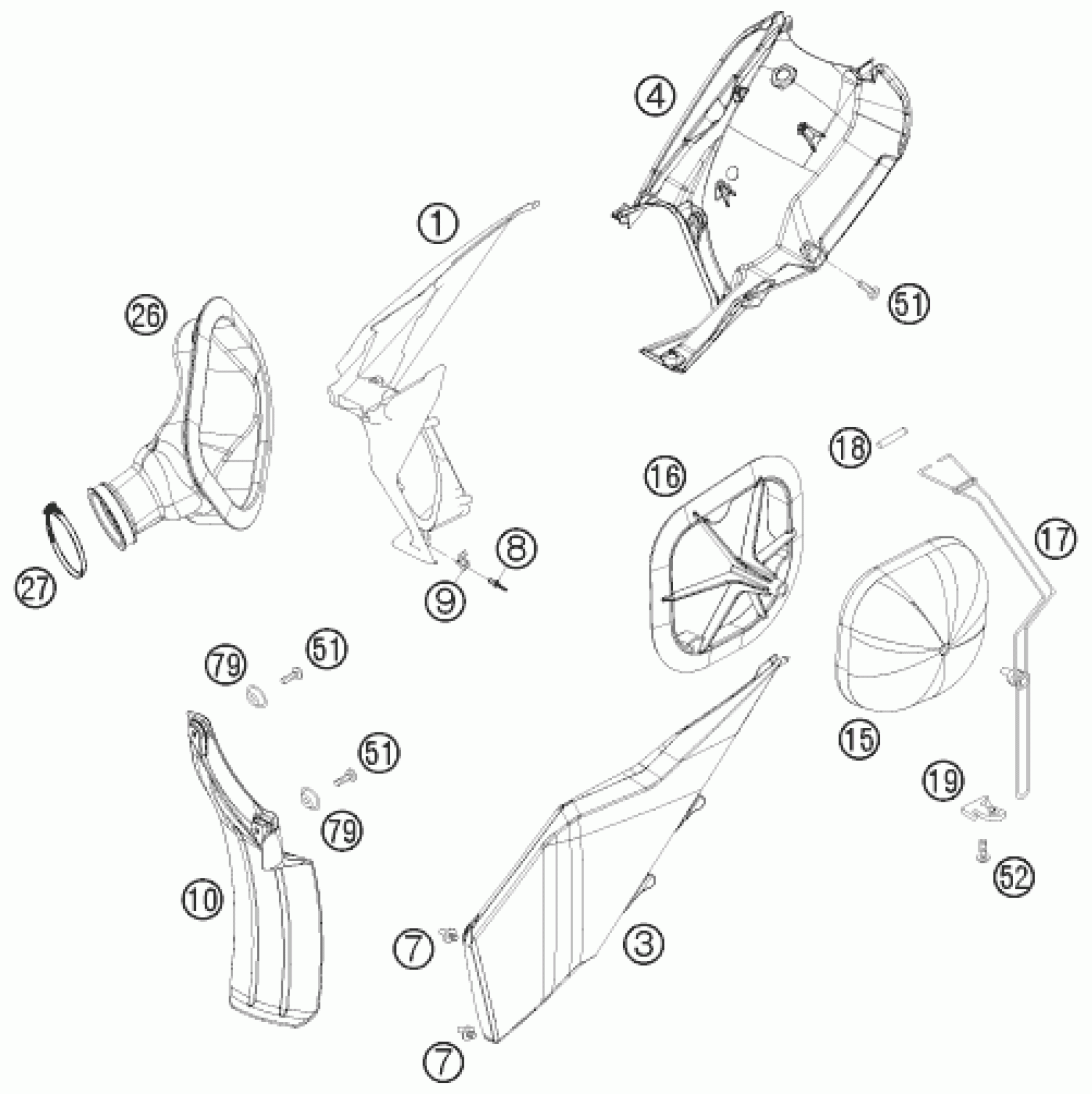

KTM 450 XC-F 2008 AIR FILTER Diagram

AIR BOX PART RIGHT

7730600101030

$29.74

AIR BOX COVER SX BLACK 07

7730600300030

$29.74

REAR PART FILTER BOX 07

77306001020

$29.26

QUICK RELEASE-NIPPLE 03

54806008051

$2.05

BLIND RIVET 3,3X9,7 GROOVED 04

54806108052

$2.05

QUICK RELEASE-SPRING HANGER

54806008050

$2.05

FENDER FOR FILTER BOX

77306010000

$20.84

FILTER CARRIER 4S SX 07

77306016000

$29.35

AIR FILTER 07

77306015000

$32.12

FILTER SUPPORT CPL. 07

77306017000

$16.43

FILTER SUPPORT BUSH 07

77306018000

$3.08

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

chain slider bushing

77304066050

$1.49

AIRFILTER BOOT 07

77306026000

$46.55

FASTEN. DEVICE FILTER S. SX 07

77306019000

$6.54

HOSE CLAMP 40-60MM

46005058000

$5.23
