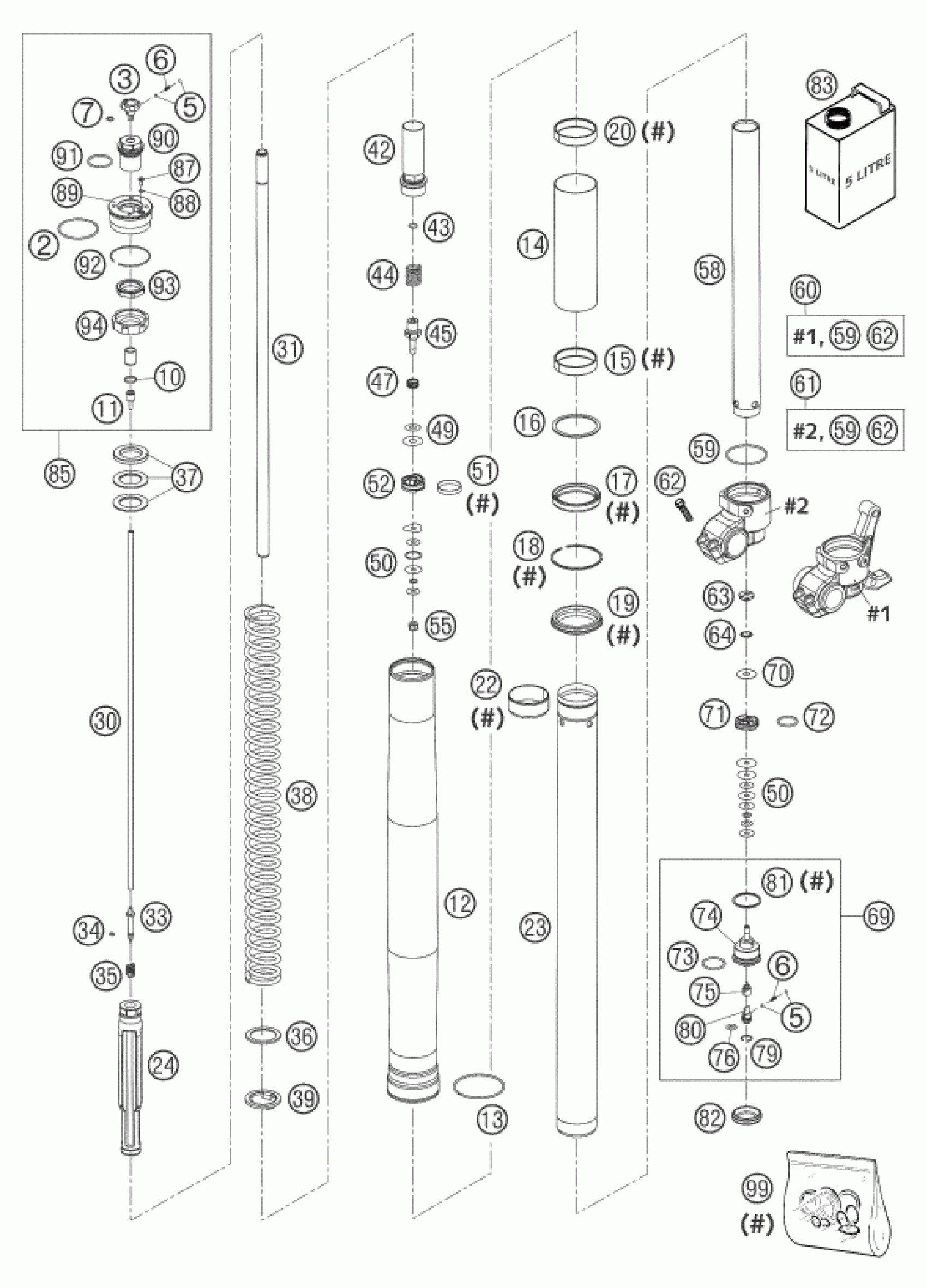

KTM 450 XC CROSS COUNTRY 2004 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

2

O-ring 45x2 NBR70 siliconized

46810340

$1.49

3

Adjuster rebound

48600018

$4.11

5

Steel ball d3

40540603

$1.49

6

Spring (1,7) l7,9

48600028

$3.08

7

O-ring 6x1,5 NBR70

48600044

$1.49

10

O-ring 12x1,5 NBR70

48600043

$2.05

11

Tube tap d4x25

48600019

$3.08

12

OUTER TUBE L=577MM D=54/60MM

48600244

$461.82

13

Round-wire snap ring 48x2

48600016

$3.08

14

SPACER 50,95X0,85X161,5

48600245

$26.22

15

DU-BUSH 48X52X12

48600205

$32.25

16

Supportwasher 50x57,6x1,5

48600013

$3.08

17

OIL SEAL RING 48X57,8X9,5

48600344

Unavailable

18

Snap ring SB58x1,5 acc drawing

48600070

$2.05

19

DUST STRIPPER D=48

48600345

Unavailable

20

Guide bushing 48x51x12

48600236

$22.99

22

DU-BUS 47X49X20

48600204

$12.05

23

INNER TUBE D=48 L=595 2003

48600240

$276.38

24

HYDR.STOP L=200MM D=31,9 CPL

48600241S

$65.03

30

ADJUSTMENT TUBE L=517MM

48600092

$54.69

31

PISTONROD D=14 L=551 M11X1

48600251

$74.73

33

Needle 6x42,6 rebound

48600189

$34.68

34

O-ring 3x1,5 NBR70

48600046

$1.49

35

Spring (7,2) 4-23 needle

48600033

$5.23

36

Washer 32x42x2,5 plastic

48600113

$11.12

37

Preload bush 42x26,5x2,5

48600036

$2.05

37

Preload bush 26,5x42x5

48600037

$4.11

37

Preload bush 26,5x42x1,5

48600053

$4.11

38

SPRING 3,6N/MM SET

91410011S

Unavailable

38

SPRING 3,8N/MM SET D=4,9MM

91410012S

Unavailable

38

SPRING 4,0N/MM SET D=5,0MM

91410013S

Unavailable

38

SPRING 4,2N/MM SET D=5,0MM

91410014S

Unavailable

38

SPRING 4,4N/MM SET D=5,1MM

91410015S

Unavailable

38

SPRING 4,6N/MM SET

91410016S

$145.85

38

SPRING 4,8N/MM SET

91410017S

Unavailable

39

Spring retainer 33,5x43x3

48600021

$16.73

42

Screw sleeve M29,3x1 cpl.

48600196S

$82.08

43

O-ring 8x1,25 NBR70 siliconize

48600239

$1.49

44

REBOUND SPRING D=15MM L=34,5MM

48600192

$14.87

45

Tap 6x45 rebound

48600203

$8.37

47

Spring (11,7) 1,5-8 valve

35480377

$2.05

49

CHECK VALVE 8X24X0,1

48600062

Unavailable

49

Shim 8x16x0,10

48600214

Unavailable

49

Shim 8x20x0,10

48600215

Unavailable

49

Shim 8x16x0,15

48600350

Unavailable

49

Shim 8x12x0,10

48600351

Unavailable

49

CHECK VALVE 8X11X0,4

48600352

Unavailable

49

Shim 8x11x0,20

48600346

Unavailable

50

Shim 6x12x0,10

40540400

Unavailable

50

Shim 6x14x0,10

40540401

Unavailable

50

Shim 6x16x0,10

40540402

Unavailable

50

Shim 6x18x0,10

40540403

Unavailable

50

SHIM 6X16X0,25

40540414

Unavailable

50

SHIM 6X18X0,25

40540415

Unavailable

50

Shim 6x9,5x0,30

40540450

Unavailable

50

Shim 6X11X0,10

40541383

Unavailable

50

Shim 6x24x0,10

48600063

Unavailable

50

Shim 6x22x0,10

48600064

Unavailable

50

Shim 6x20x0,10

48600065

Unavailable

50

Shim 6x24x0,10 delta

48600116

Unavailable

50

Shim 6x10x0,25

48600217

Unavailable

50

Shim 6x13x0,10

48600325

Unavailable

50

SHIM 6X15X0,1

48600327

Unavailable

50

Shim 6x17x0,10

48600329

Unavailable

50

Shim 6x19x0,10

48600331

Unavailable

51

Pistonring 26x28x5

48600060

$5.23

52

Piston 6,05x27,65x12 rebound

48600042

$11.78

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

58

TUBE 29,3X1X390 D=8,5MM

48600081

$155.20

59

O-ring 46x2 NBR70 siliconized

48600048

$3.08

60

AXLE CLAMP L/S CPL. USD48 04

48600237S

$297.75

61

AXLE CLAMP R/S CPL. USD48 04

48600238S

$289.59

62

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

63

Nut valve M6x0,5 h6,5 WAF17

48600163

$3.08

64

Spring (8,5) l6,5 valve

48600202

$2.05

69

TAP COMPRESSION CPL. 03

48600152S1

$37.67

70

Shim 8x24x0,40

48600061

$2.05

71

Piston 6x27,8x9 compression

48600047

$9.81

72

O-ring 21x2 NBR70

46811499

$1.49

73

O-ring 24x2 NBR70

35480320

$1.49

74

TAP COMPRESSION

48600152

$37.67

75

Needle 10x11,6 compression

48600190

$13.64

76

O-ring 8x2 NBR70

48600049

$1.49

79

Round-wire snap ring 12x1 DIN7

48600051

$3.08

80

Adjustment screw slot compress

48600034

$7.35

81

Copper disc 29,5x33,5x1

48600004

$4.11

82

Rubber cap 35x10 NBR80

48600141

$4.11

83

FORK OIL SAE 5

48600211S1

Unavailable

85

PRE-LOAD ADJUSTER CPL.(1 PC.)

48600075S

$497.96

87

VENT SCREW M4X8

48600076

$2.05

88

O-ring 3x1,5 NBR70

48600046

$1.49

89

SCREW CAP M51X1,5

48600075

$124.95

90

ADAPTER FOR REB. MENDING

48600073

Unavailable

91

O-ring 26x2 NBR90

48600077

$1.49

92

Round-wire snap ring 49x1,5

46810010

$3.08

93

Locking nut M25x1 LH h7 WAF32

48600072

$16.11

94

Carrier ring spring fork

48600071

$38.54

99

REPAIR-KIT GASKET 4860 MXMA 03

R14007

$106.21
