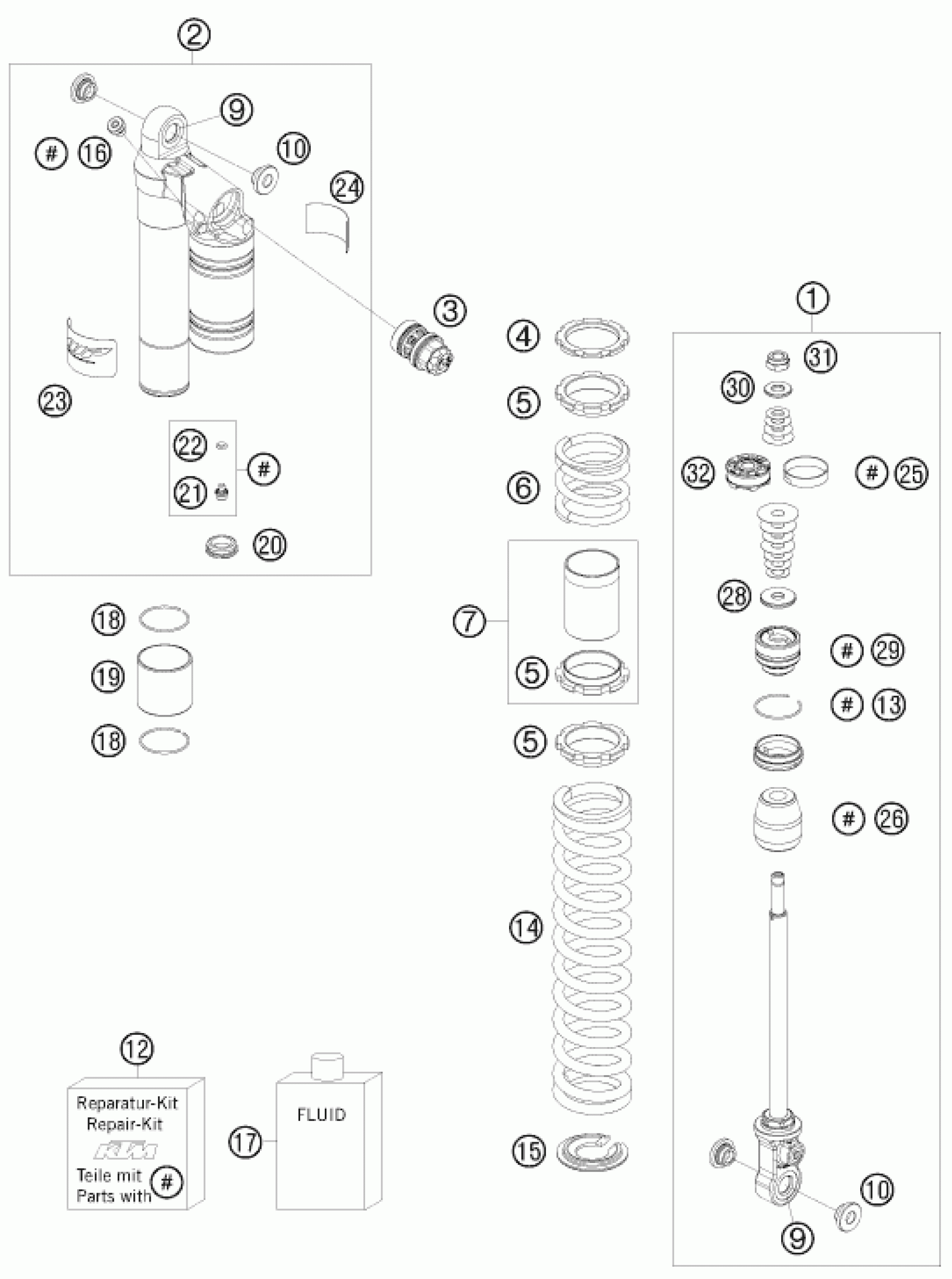

KTM 450 XC ATV 2010 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

18

Round-wire snap ring 40x1,5

36120032

Unavailable

19

Spring guide 40x44x42

36120798

Unavailable

25

Pistonring 33x35x8

36120040

$6.91

26

Rubber pad 13,9x38x43 black

36120799

$12.89

28

Rebound disc 12x28,5x4 h0

14360065

$10.65

29

Sealholder 36x26,6 cpl.

36120787S

$76.76

30

Washer 10x22x2,5

36120604

$20.84

31

Piston rod nut M10x1 black

36120052

$11.12

32

Piston 10,5x35,6x13,65 3,5/5,5

36120071

$61.70

1

MONOSHOCK LOWER PART

36120781SA3

Unavailable

2

MONOSHOCK UPPER PART

36120773SA

Unavailable

3

MCC 5 CPL.

50180301S5

Unavailable

4

SPRING RETAINER-COUNTER NUT

36120794

Unavailable

5

SPRING RETAINER-ADJUSTING NUT

36120793

Unavailable

6

SPRING 40-60 D6,5

93010190S

Unavailable

7

THREAD BUSHING CPL.

36120792SA

Unavailable

9

BEARING KIT KGW 1525 990DUKE

R15009

$35.71

10

Distance bush 10x15/18/24,5x10

46180010

$4.11

12

REPAIR-KIT

R308

$65.07

13

Round-wire snap ring 38x1,5

40540015

$3.08

14

SPRING 24-29-275

93020034S

Unavailable

15

Spring retainer 27x57x2

36120386

$27.01

16

HS cylinder-head screw R1/8 l8

50180095

$2.42

17

SHOCK ABSORBER FLUID SAF 1579A

50180342

Unavailable

20

Rubber cap do not open 22x5,5

46811208

$3.08

21

HS lock screw M5x6

36120151

$1.86

22

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

23

Sticker WP clear 35x55

52000086

$3.48

24

Sticker warning 27x55

52000012

Unavailable
