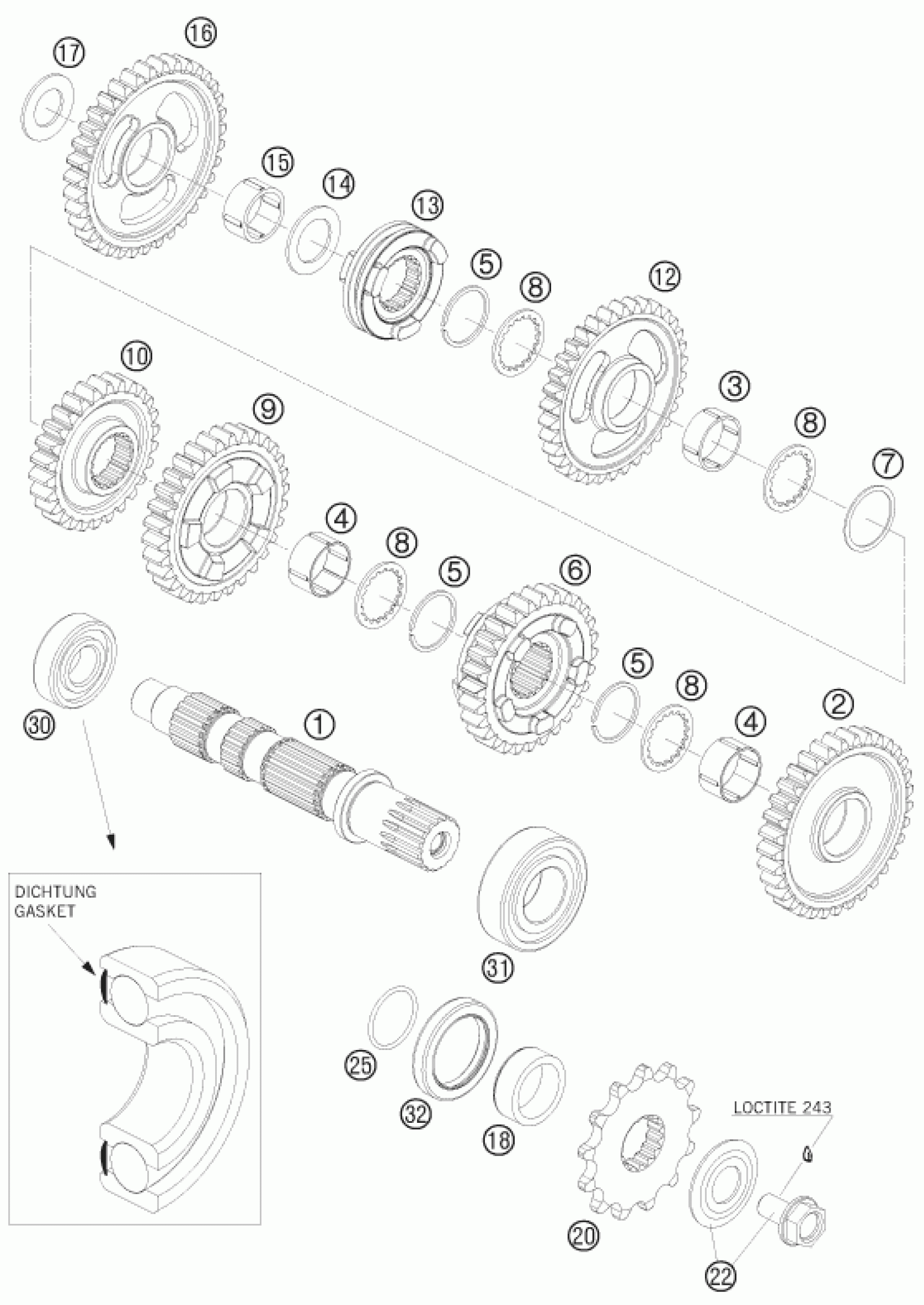

KTM 450 XC ATV 2009 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

COUNTERSHAFT 08

83133010000

$131.64

2

IDLER GEAR 2.G. 33T 07

83033012000

$71.33

3

NEEDLE BEAR. 22X26X10 SLOTTED

83033042000

$5.98

4

NEEDLE BEAR. 22X26X13 SLOTTED

83033041000

$9.15

5

CIRCLIP SW25

0417025000

$3.08

6

SLIDING GEAR 4. G. 28T 07

83033014000

$63.85

7

DISTANCE DISK 25X30X0,2

83033032000

Unavailable

7

DISTANCE DISK 25X30X0,3

83033033000

Unavailable

8

STOP DISK 22,6X30X1,5 18T

83033022000

$2.48

9

IDLER GEAR 3.G. 30T 07

83033013000

$103.96

10

SOLID GEAR 5.G. 26T 07

83033015100

$67.40

12

IDLER GEAR REVERSE-GEAR 07

83033018100

$58.56

13

SLIDING SLEEVE REVERSE-GEAR 07

83033017000

$91.34

14

STOP DISK 20,2X31,X1,5

83033025000

$2.81

15

NEEDLE BEAR. 22X26X12

83033044000

$8.01

16

IDLER GEAR 1.G. 35T 07

83033011000

$111.45

17

STOP DISK 17,2X30X1,5

49032012000

$3.48

18

SPACER BUSHING 12MM

54633014100

$20.94

20

FRONT SPROCKET 13-T

50033029013

Unavailable

20

FRONT SPROCKET 14-T

50033029014

Unavailable

20

FRONT SPROCKET 15-T

50033029015

Unavailable

22

SCREW 10.9+SPRING WASHER

59033034044

$7.85

25

O-RING 25,12X1,78 NBR70

0770020220

$3.08

30

BALL BEARING 6203 RSH C3

0625062036

$16.17

31

cylindrical roller bearing NJ2

49030023000

$74.42

32

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23
