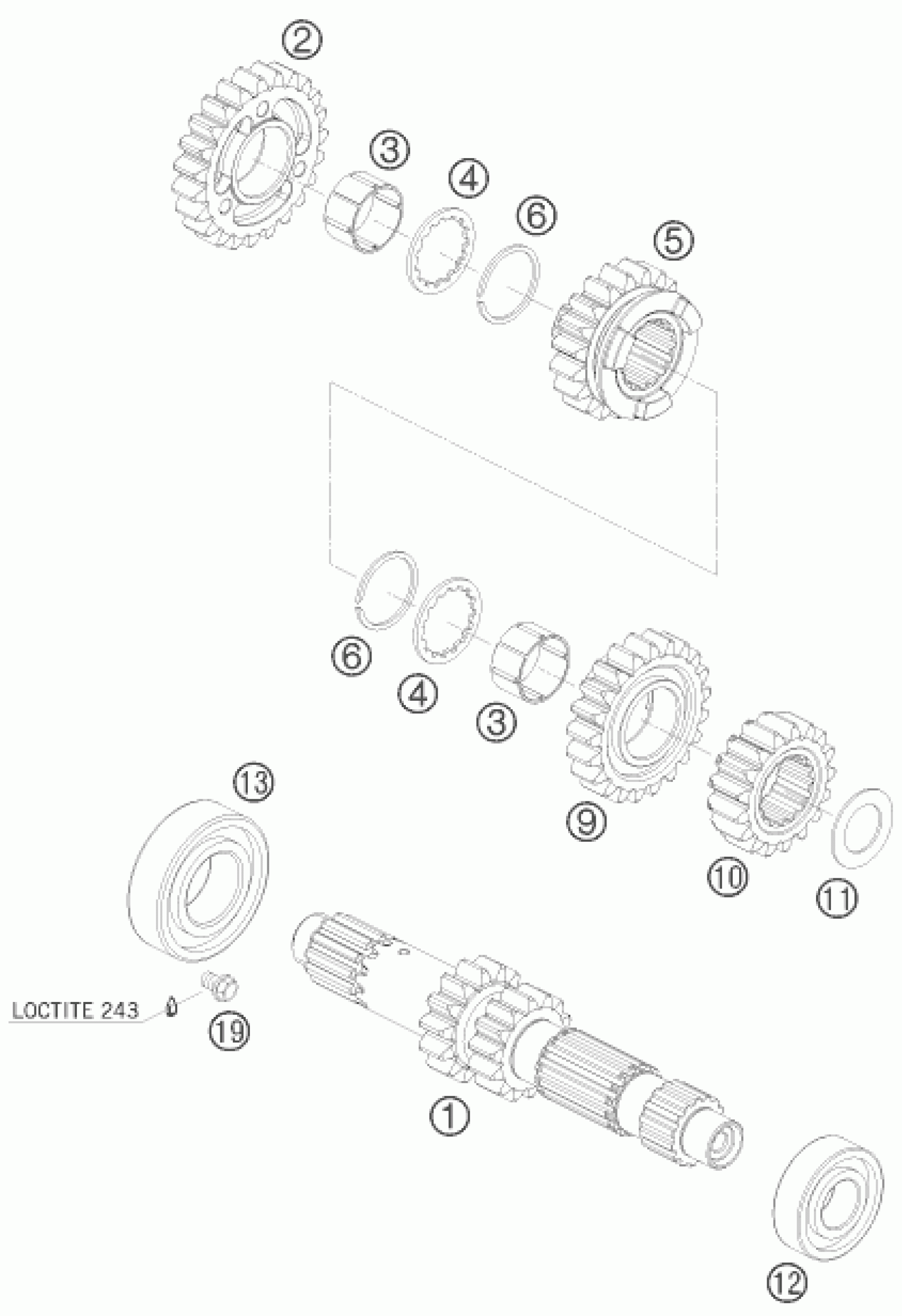

KTM 450 XC ATV 2009 TRANSMISSION I - MAIN SHAFT Diagram

MAIN SHAFT 14T 07

83033001100

$156.51

IDLER GEAR 5.G 23T 07

83033005000

$64.83

NEEDLE BEAR. 21X25X13 SLOTTED

83033043000

$5.60

STOP DISK 22,6X30X1,5 15T

83033023000

$3.08

SLIDING GEAR 3. G. 19T 07

83033003000

$83.77

CIRCLIP SW25

0417025000

$3.08

IDLER GEAR 4.G 21T 07

83033004000

$167.15

SOLID GEAR 2.G 17T 07

83033002000

$134.98

STOP DISK 17,2X27,7,X1

83033024000

$3.48

BALL BEARING 6203 JR2 C3

0625062035

$14.48

BALL BEARING 6205 C3 NTN

0625062054

$20.66

HH collar screw M6x8 TX30

0025060086

$2.05
