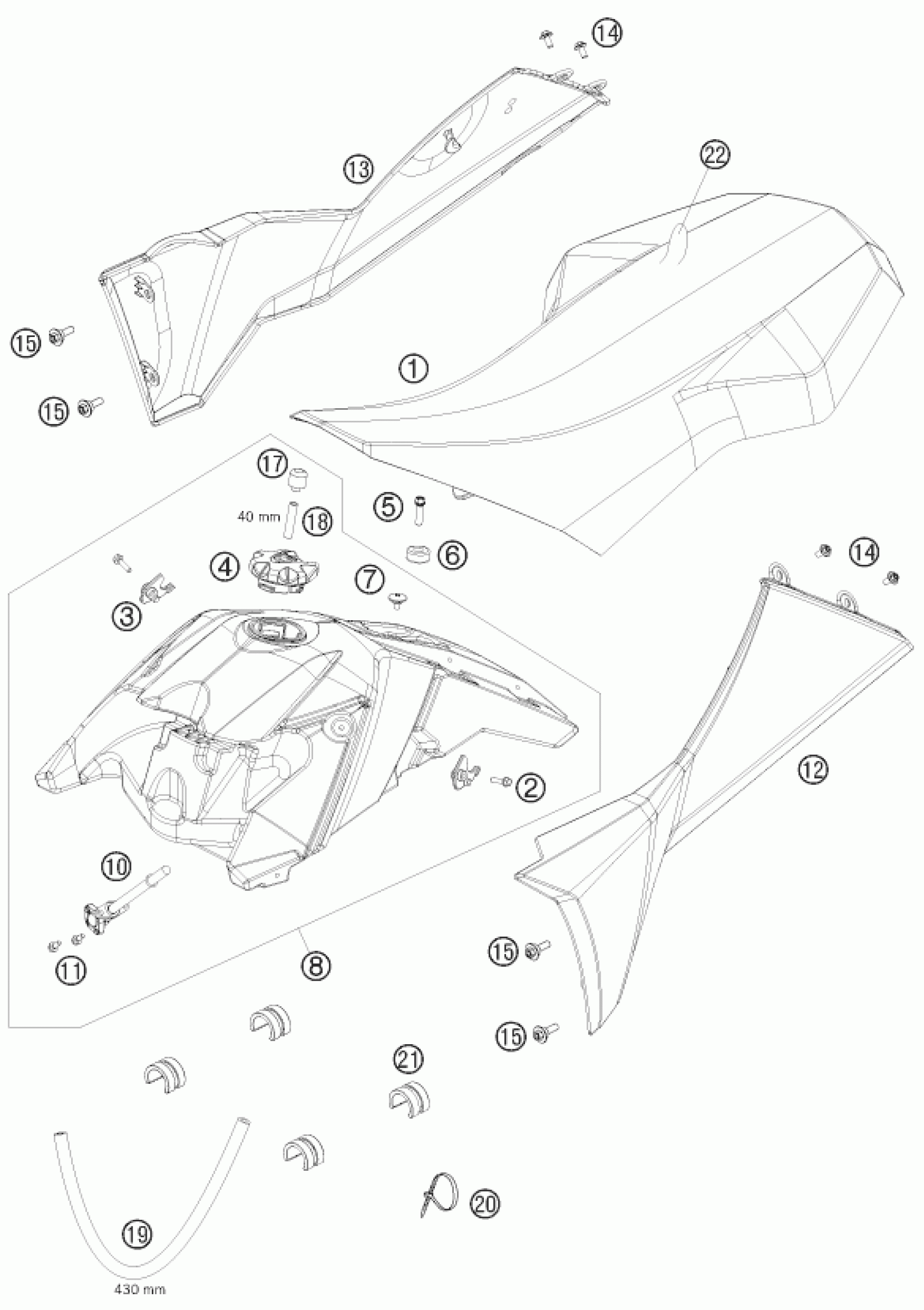

KTM 450 XC ATV 2009 TANK, SEAT Diagram

#

Description
Price

1

SEAT ATV 2009

83007040100

$184.28

2

HH COLLAR SCREW M5X20 TX 30

0024050206

Unavailable

3

SPOILER BRACKET

83007013050

$4.06

4

TANK PLUG ORANGE/BLACK

78007008044X4

$29.07

5

HH collar screw M6x16 TX30

0025060166

$3.08

6

TANK ROLLER 12X26X12 '98

50307014000

$11.02

7

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

8

FUEL TANK CPL.

8300701303330

$513.21

10

FUEL COCK CPL. OFF-ON-RES

58307105200

$44.68

11

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

12

RADIATOR SPOILER L/S BLACK

8300805000030

$43.00

13

RADIATOR SPOILER R/S BLACK

8300805100030

$41.73

14

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

15

SCREW M6X20X5,5

83008100020

$3.08

17

BLEEDING STUBBLE

83007030000

$5.10

18

FUEL HOSE VITON 6X1,5 PER/M

58307016001

Unavailable

19

FUEL HOSE

83007016000

$20.56

20

Cable tie 200/4.6mm black

44011076200

Unavailable

21

SPACER FUEL TANK 05

61007014000

$6.63

22

SEAT COVER

83007040050

$53.11
