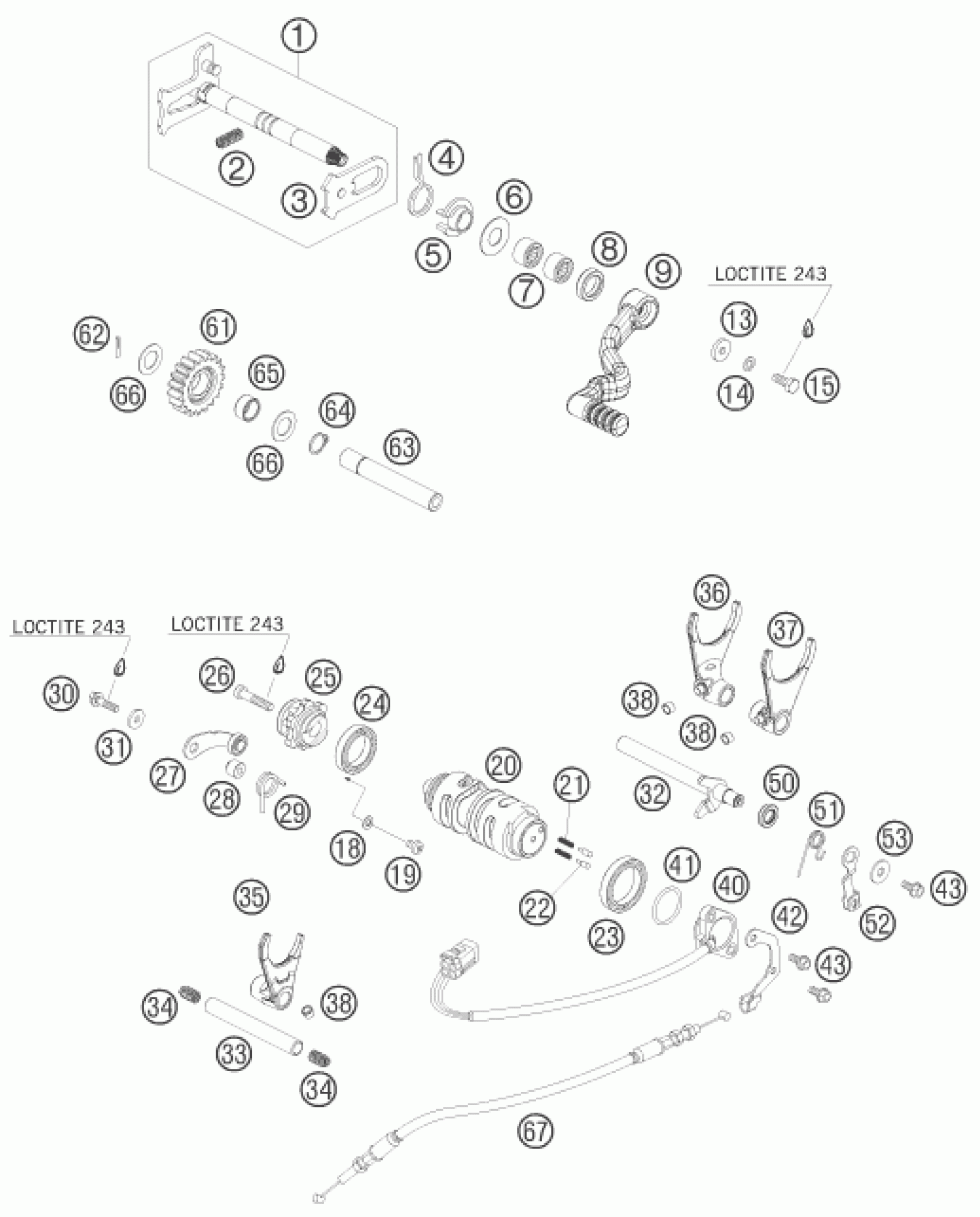

KTM 450 XC ATV 2009 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFTING SHAFT CPL. 07

83034005044

$87.69

2

TENSIONING SPRING 0,8MM

56534013100

$1.49

3

SLIDING PLATE CPL.

54634008044

$10.46

4

RETURN SPRING 2,2MM '95

54634014100

$6.63

5

SPRING GUIDE

54634020000

$6.44

6

STOP DISK 14X30X1

54634050000

$2.05

7

needle sleeve HK 1412 14x20x12

54632095000

$7.00

8

radial shaft seal 14x24x6 B

0760142460

$9.25

9

SHIFT LEVER CPL. ATV 07

83034031100

$42.81

13

STEEL WASHER 6,4X17X3

50232050001

$5.23

14

Pair of washers M6 NORDLOCK

50233041000

$4.11

15

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

18

WASHER DIN0125-A 5,3

0125050003

$1.49

19

FLAT HEAD SCREW DIN7985-M 5X 8

0985050083

$1.49

20

SHIFTING DRUM ATV

83034012000

$133.76

21

CONTACT SPRING 3,6X14MM

83034014000

$2.00

22

CONTACT BOLT

83034037000

$4.35

23

deep groove ball bearing 6806

0625068060

$27.11

24

BALL BEARING 61805 C3

0625618050

$43.94

25

SHIP DRUM LOCATING CPL.

59034015144

$64.04

26

AH SCREW DIN6912 M6X30 8.8

0012060303

$1.49

27

LOCKING LEVER CPL. 08

77034024044

$16.07

28

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

29

detent arm spring 2.3mm

59034023000

$2.05

30

HH collar screw M5x20 TX30

0025050206

$2.05

31

WASHER DIN7349-5X15X2

0349000050

$1.49

32

SHIFTING ROD WITH LOCK

83034120100

$32.06

33

SHIFTING MAIN L=93MM 05

77034019000

$14.02

34

PRESSURE SPRING 0,9MM

58038023200

$4.11

35

SHIFT FORK

83034001000

$62.36

36

SHIFT FORK

83034003000

$51.24

37

SHIFT FORK

83034002000

$51.24

38

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

40

GEAR-POSITION SENSOR ATV

83011023000

$44.78

41

O-RING 25,07X2,62 FPM 75SH

0770251262

$2.05

42

ABUTMENT

83034045000

$17.01

43

HH collar screw M5x16 TX30

0025050166

$2.05

50

SHAFT SEAL RING 10X18X4 BSL V.

0760101844

$10.09

51

DECOMPRESSION LEVER SPRING

59036059000

$3.08

52

LEVER LOCK-SHAFT

83134043000

$21.34

53

washer DIN 9021 A - 5.3

0021050003

$1.49

61

REVERSE GEAR WHEEL 07

83033008102

$36.42

62

GROOVED PIN DIN1472 3x16

0472030160

$1.49

63

REVERSE GEAR AXLE 07

83033008101

$14.11

64

retaining ring DIN 471 14x1

0471140100

$1.49

65

NEEDLE BEAR. 14X18X10

0405141810

$8.87

66

STOP DISK 14,1X24X1

83033027000

$1.49

67

BUS CABLE F. REVERSE GEAR

83002097000

$72.23
