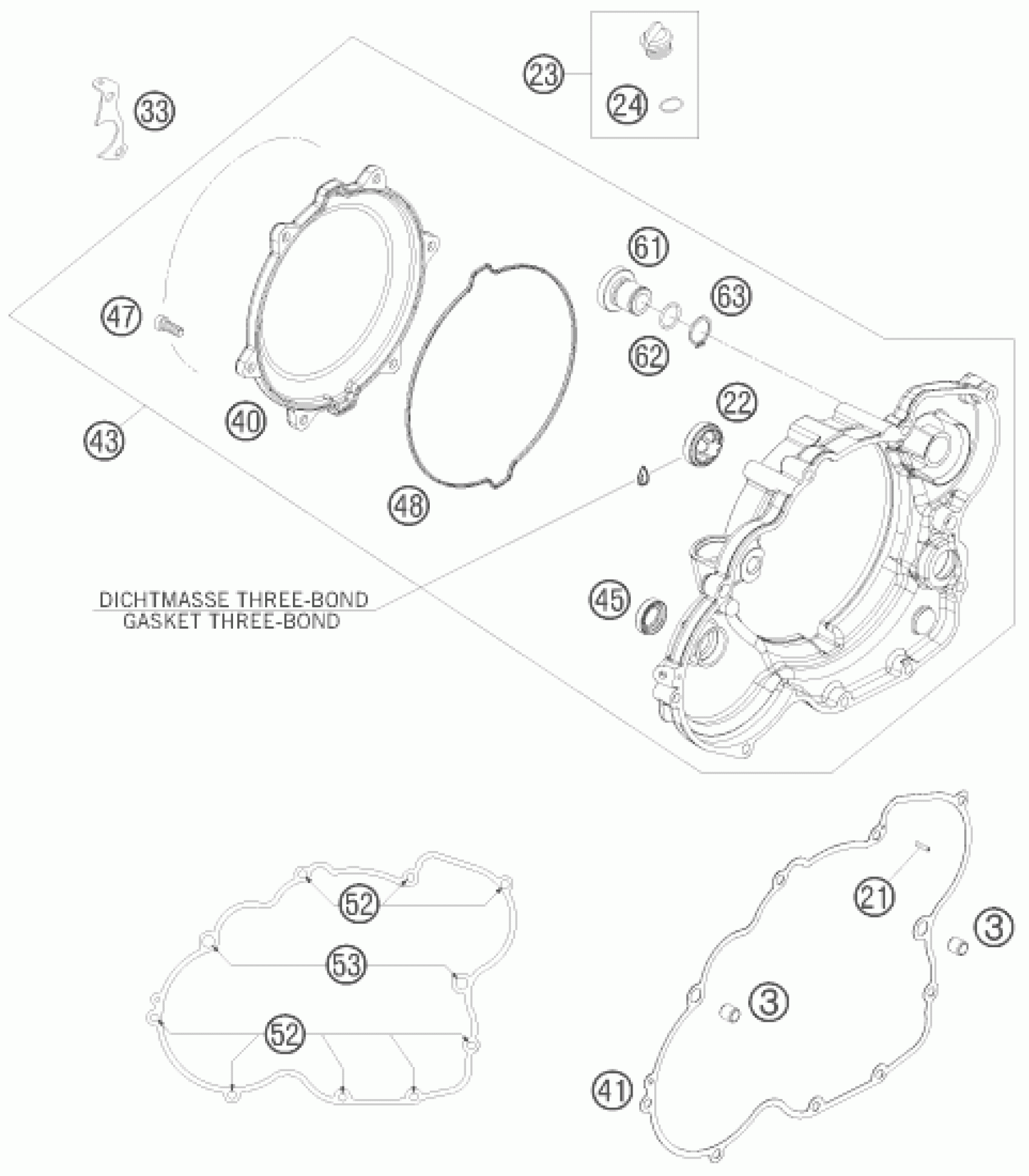

KTM 450 XC ATV 2009 CLUTCH COVER Diagram

#

Description
Price

3

DOWEL 9,8 X 7 X 10

49030090000

$2.05

22

OIL LEVEL GLASS

59030019100

$21.31

23

oil plug cpl. M24x3

58030020100

$5.23

24

O-RING 19,00X3,00 NBR

0770191015

$2.05

33

RET.BRACKET F.BRAKE LEVER HUB

59030001090

$2.81

40

OUTER CLUTCH COVER 08

5903002600025

$76.71

41

CLUTCH COVER GASKET

59030025200

$26.45

43

CLUTCH COVER CPL. GREY

8303000103325

$157.76

45

radial shaft seal 14x24x6 B

0760142460

$9.25

47

AH SCREW DIN6912-M 6X16

0984060163

$2.05

48

GASKET F. OUTER CLUTCH COV. 06

59030027000

$7.10

52

HH collar screw M6x30 TX30

0025060306

$3.08

53

HH collar screw M6x35 TX30

0025060356

$3.08

61

KICK-STARTER PLUG

83033056000

$16.82

62

O-ring 16x2 Viton 75

0770160021

$3.08

63

CIRCLIP DIN0471-19X1,2

0471190120

$1.49

21

NEEDLE ROLLER DIN5402 2,5X9,8

0402025980

$3.08
