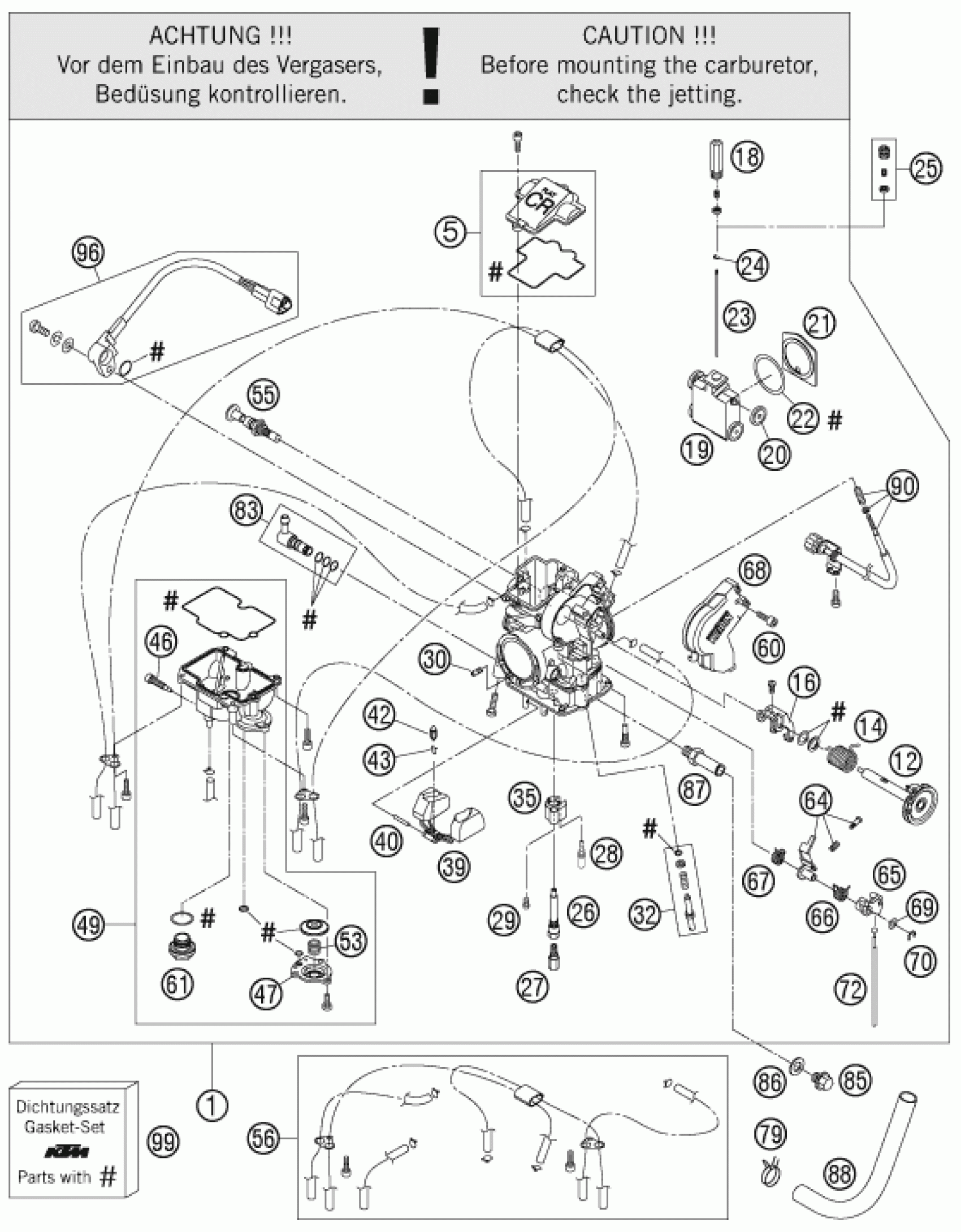

KTM 450 XC 2007 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR FCR-MX 3900F,TPS 06

59031001300

$1,052.46

5

CARBURETOR COVER WITH GASKET

57331027044

$39.26

12

THROTTLE SHAFT CPL. 06

57331046100

$91.58

14

COIL SPRING THROTTLE SHAFT

57331046050

$9.15

16

LINK ARM THROTTLE VALVE CPL.

57331035051

$84.89

18

SLIDE STOP 03

59031029010

$13.96

19

THROTTLE VALVE CPL.

57331035000

$345.01

20

BUSHING THROTTLE VALVE

59031035050

$10.65

21

GASKET PLATE THROTTLE VALVE 04

57331035153

$191.85

22

GASKET WASHER THROTTLE VALVE

59031035052

$17.94

23

JET NEEDLE KEIHIN OBDVT

59031023200

Unavailable

23

JET NEEDLE KEIHIN OBDVR

59031022000

Unavailable

23

JET NEEDLE KEIHIN OBDTM

59031021000

Unavailable

23

JET NEEDLE KEIHIN OBDTN

59031034000

Unavailable

23

JET NEEDLE KEIHIN OBDTP

59031034400

Unavailable

23

JET NEEDLE KEIHIN OBDTQ

59031034500

Unavailable

23

JET NEEDLE KEIHIN OBDTR

59031034600

Unavailable

24

BAR CLIP

59031029000

$5.23

25

NEEDLE SET SCREW CPL.

57331032000

$40.10

26

NEEDLE JET FCR-MX

59031121000

$32.72

27

MAIN JET 175 KEIHIN

54531623175

Unavailable

27

MAIN JET 178 KEIHIN

54531623178

Unavailable

27

MAIN JET 180 KEIHIN

54531623180

Unavailable

27

MAIN JET 182 KEIHIN

54531623182

Unavailable

27

MAIN JET 185 KEIHIN

54531623185

Unavailable

28

IDLE JET 40 KEIHIN

54531607040

Unavailable

28

IDLE JET 42 KEIHIN

54531607042

$12.71

28

IDLE JET 45 KEIHIN

54531607045

Unavailable

29

STARTER JET 85

59031051085

$16.73

30

IDLE AIR JET 100 KEIHIN

57331107100

$14.76

32

ADJUST SCREW CPL. FCR-MX

59031017100

$19.63

35

BUFFER PLATE

57331085000

$12.33

39

FLOAT CPL.

57331009000

$59.64

40

ARM PIN FLOAT

57331008000

$2.05

42

FLOAT NEEDLE

54631220000

$31.41

43

CLAMP

54531621000

$4.11

46

DRAIN SCREW FLOAT CHAMBER

57331155000

$5.98

47

COVER ACCELERATOR PUMP

57331060000

$27.01

49

FLOAT CHAMBER CPL. SET

57331011000

$178.48

53

COIL SPRING

59031059000

$7.38

55

STARTER VALVE CPL.

57331048000

$86.85

56

BREATH.HOSE FCR-MX KEIHIN CPL.

57331098000

$107.52

60

FLAT HEAD SCREW DIN0965-M 5X10

0965050103

$2.05

61

PLUG M 18X1

54531699000

$20.09

64

INTERMEDIATE LEVER CPL.

57331062000

$33.28

65

LINK LEVER

57331056000

$8.13

66

SPRING LINK LEVER

57331059000

$9.49

67

SPRING INTERMEDIATE LEVER

57331159000

$10.84

68

CARBURETOR COVER 06

57331038200

$8.13

69

WASHER LINK LEVER

57331087000

$2.05

70

E-CLIP

57331084000

$2.05

72

ROD ACCELERATOR PUMP

57331061000

$26.73

79

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

83

HOSE CONNECTOR CPL.

59031013044

$65.35

85

PLUG DIN0910-M 10X1

0910100003

$4.11

86

sealing ring DIN 7603 10x14x1

0603100141

$2.05

87

HOSE CONNECTOR KEIHIN

59031040300

$39.45

88

ENGINE BREATHER TUBE 00

59031050100

$14.58

90

STOP SCREW CPL. FCR-MX

57331025000

$56.65

96

TPS-SENSOR FCRMX 190MM 2006

59031077200

$144.64

99

GASKET SET FCR-MX KEIHIN

57331099000

$119.67

48

DIAPHRAGM ACCELERATOR PUMP

57331057100

$30.66
