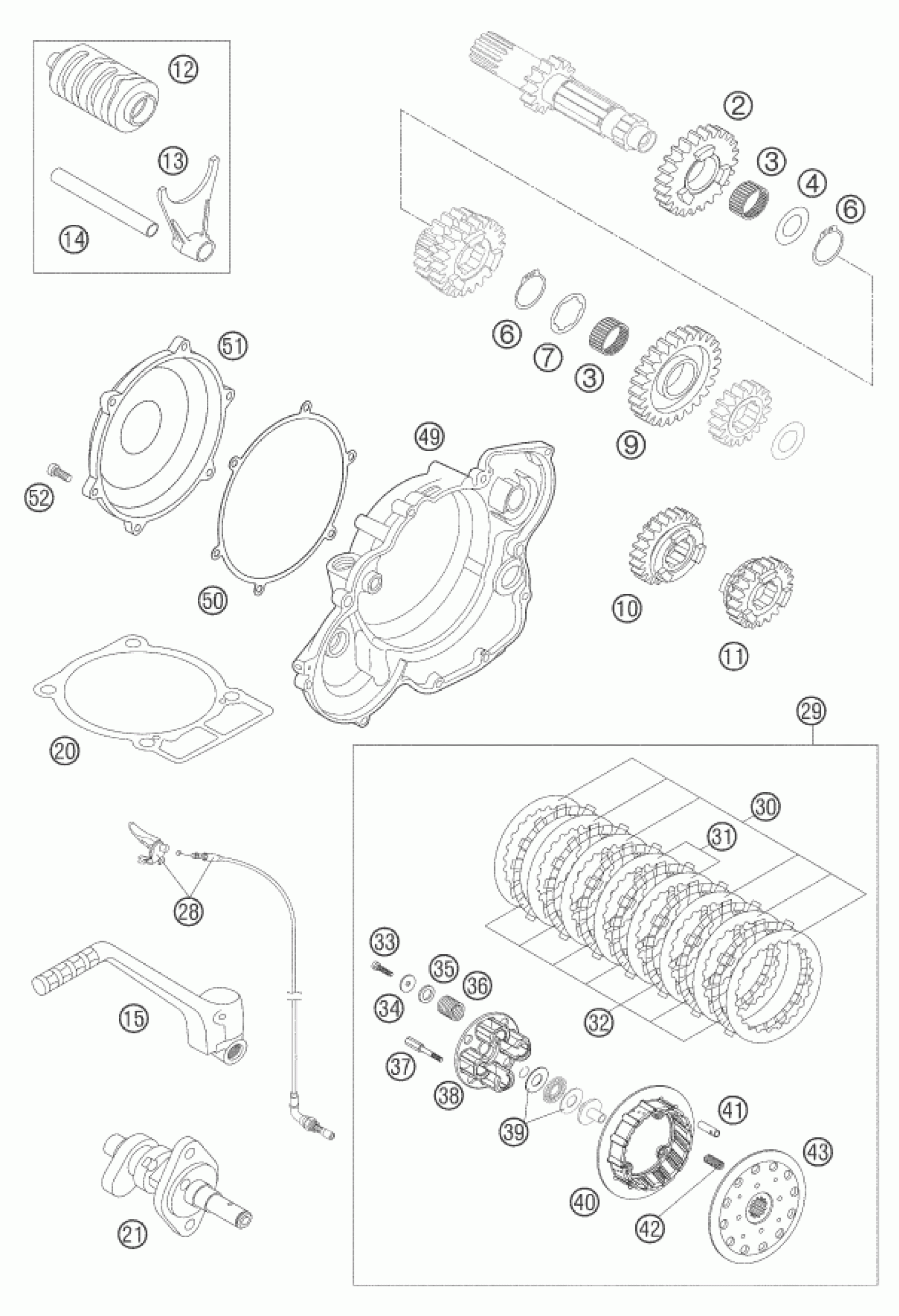

KTM 450 SXS RACING 2005 Other Diagram

#

Description
Price

2

IDLER GEAR 5.G 24-T ''39''

59033005039

$64.73

4

STOP DISC 25,2X32X1,5

59033031000

$1.49

7

STOP DISC 25,2X32X1,5

59033030000

$3.08

9

IDLER GEAR 6.G 21-T ''45''

59033006045

$65.89

10

SLIDING GEAR 5.G.24-T ''40''

59033015040

$92.37

11

SLIDING GEAR 6.G 18-T ''44''

59033016044

$124.33

12

SHIFT ROLLER CPL. 05

59034112044

Unavailable

13

SHIFT FORK 5./6.GEAR 2000

59034001000

$41.51

14

SHIFT RAIL 11,8X89MM

59034019000

$12.80

15

KICKSTARTER CPL. RACING

59033070044

$135.51

20

SEALING 89

CR430035030

$6.72

21

CAMSHAFT 250 RAC. 2002

59836010100

$193.95

29

% ANTIHOPPING CLUTCH 05

59032000100

Unavailable

30

INTERMEDIATE DISC 1MM 2002

59032010100

$9.81

31

INTERMEDIATE DISC 1,4MM 2002

59032010200

$10.93

32

LINING DISC 2MM 04

59032011100

$22.43

34

WASHER 5,5X20X1,5

59032006100

$3.08

35

ADJUST. SHIM 12,5X20X1 05

59032006200

Unavailable

35

ADJUST. SHIM 12,5X20X2 05

59032006300

Unavailable

35

ADJUST. SHIM 12,5X20X1,5 05

59032006400

Unavailable

36

CLUTCH SPRING APTC 2004

59032005100

$4.14

37

SAFETY SCREW APTC 2004

59032007100

$4.64

38

PRESSURE CAP APTC 2004

59032003400

Unavailable

39

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

40

OUTER CLUTCH APTC 2004

59032002450

Unavailable

41

DRIVING SLEEVE APTC 2004

59032004100

Unavailable

42

OPENING SPRING APTC 04

59032004200

$7.75

43

INNER HUB APTC 2004

59032002400

Unavailable

49

* INNER CLUTCH COVER CPL. 04

SXS04450244

Unavailable

50

GASKET FOR OUTER CLUTCH COVER

SXS04450036

$4.40

51

OUTER CLUTCH COVER 04

SXS04450235

$78.01
