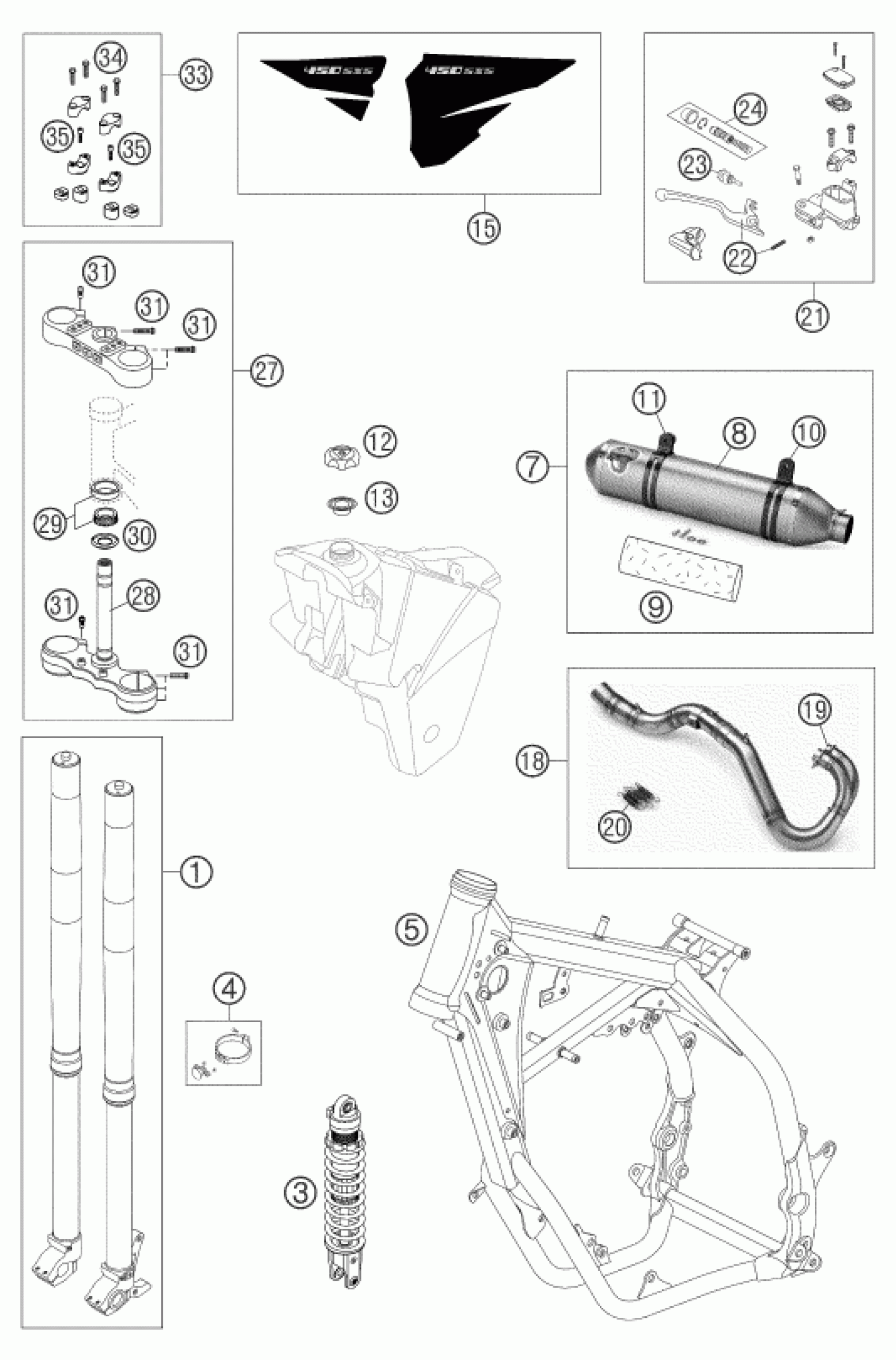

KTM 450 SXS RACING 2004 NEW PARTS Diagram

#

Description
Price

1

FORK 4860 MXMA 48MM 04

1418Y762

$1,598.60

3

% MONOSHOCK 5018 PDS SXS

1218Y780

Unavailable

4

% FACTORY START

SXS04540100

Unavailable

5

FRAME 450/540 SXS 04

SXS04450050

Unavailable

7

% SILENCER TITAN SXS 2004

SXS04540502

Unavailable

8

REPAIR KIT

SXS02540507

Unavailable

9

STFFING YARN-KIT L=560MM 02

SXS02540505

Unavailable

10

CLAMP FRONT

SXS02540503

$43.98

11

% CLAMP F.SILENC. CARBON REAR

SXS02540504

Unavailable

12

SXS FUEL TANK CAP

SXS03540700

$12.44

13

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

15

DISPLACEME. STICKER 450 SXS 04

59408091700

Unavailable

18

FACTORY HEADERS TITAN SXS 04

SXS04450500

$572.34

19

EXHAUST FLANGE 03

SXS02540506

$28.21

20

EXHAUST-SPRING WITH RUBBER 02

57305016000

$8.49

21

HAND BRAKE CYLINDER CPL. SX 05

54813001000

$146.49

22

HAND BRAKE LEVER + SPRING '05

54813002000

$30.94

23

ADJUSTING SCREW CPL. SX 2005

54813007000

$28.88

24

REP.SET PISTON D=10MM SX 05

54813008000

$51.14

27

* TRIP.CLAMP KIT MLD CPL.20MM

59501099020

Unavailable

28

FORK TUBE L=244 '91

50101033100

$85.17

29

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

30

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

31

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

33

% HANDLEBAR SUPPORT CPL.D=28MM

59501039044

Unavailable

34

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

35

AH SCREW DIN6912-M10X25,10.9

0912100250

Unavailable

35

AH SCREW DIN6912-M10X35 10.9

0912100356

Unavailable

35

AH SCREW DIN6912-M10X45 10.9

0912100456

Unavailable
