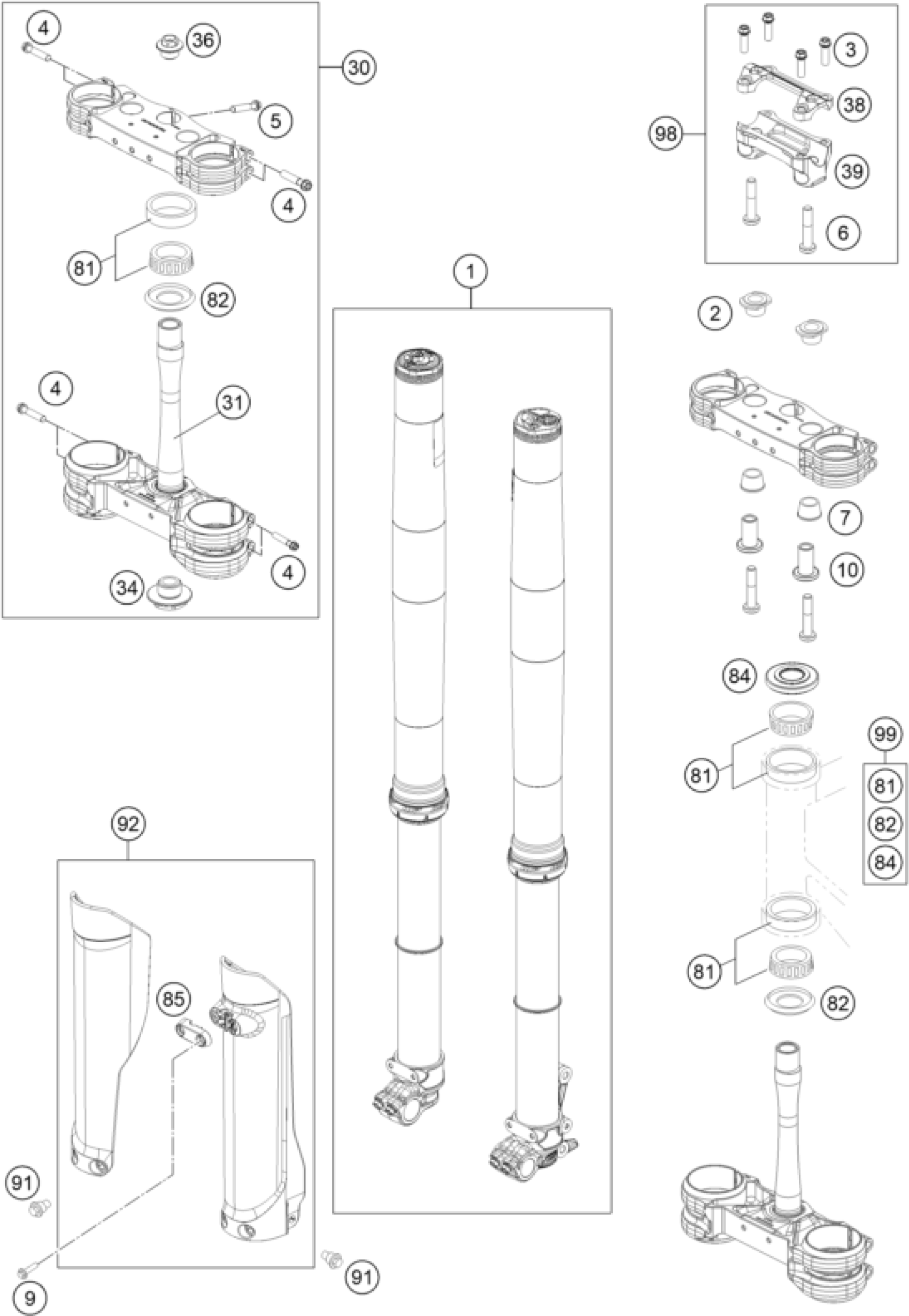

KTM 450 SX-F FACTORY EDITION 2024 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork 450 SX-F 2025 US

A460C159Y406000

Unavailable

2

Rubber bushing

A46001035001

$1.49

3

HH collar screw M8x25

0025080256

$2.05

4

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

5

HH COLLAR SCREW M8X25 WS=10

0015080256S

$3.08

6

AH collar screw M10x50 ISA45

0035100509S

$7.10

7

RUBBER BUSH

83001040000

$5.23

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

10

Handlebar support, lower part

A46001039034

$26.55

30

Factory Racing triple clamp

A4600199902104A

$521.04

31

Steering stem

79101933000

$84.14

34

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

$14.67

36

Collar screw M20x1.5 SW17 Al

A46009082000

$3.08

38

HANDLEBAR CLAMP 28MM

79001038000

$69.37

39

Handlebar mount D28 mm-H36 mm

A48001039036

$58.43

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

84

Steering head seal

A46001086000

$22.43

85

Clamp for brake line

77701085100EB

$5.23

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

Gabelschutzkit 450 SX-F Factor

A46001094000EBD

$133.98

98

handlebar mount kit D28mm-H36m

A48001039010

Unavailable

99

Repair Kit steering head beari

A46001081044

Unavailable
