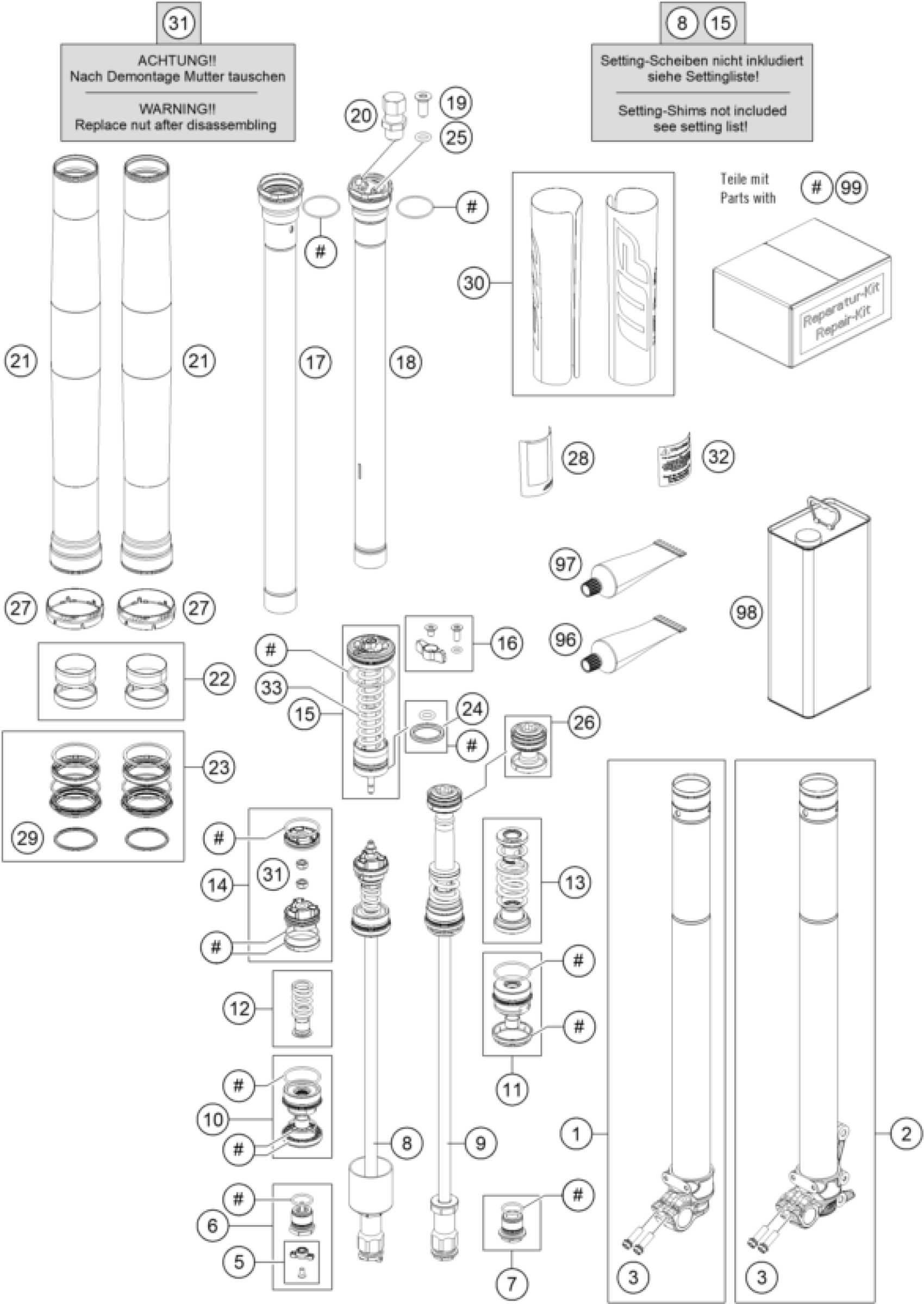

KTM 450 SX-F FACTORY EDITION 2024 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axle clamp ri. with inner tube

48602046S2

$357.72

2

Axle clamp le. with inner tube

48602045S2

$378.76

3

HH collar screw M8x25

0025080256

$2.05

5

Repair kit adjuster rebound re

RP10033T

Unavailable

6

adjuster housing M20x1 cpl.

48602052S

$31.78

7

HH collar screw M20x1x18 cpl.

48601533S

$21.31

8

Pistonrod D12 M9x1 L385 cpl

S501200016S0000

$362.68

9

piston rod 12x470 cpl.

48601501S2

$290.31

10

Screw sleeve M35,5 x 0.8 cpl.

48601462S2

$69.37

11

Screw sleeve M35,5x0,8 cpl.

48602138S2

$47.86

12

Spring (13,9) 37-32 rebound cp

48600578S

$4.11

13

Spring (22) 60-30 rebound cpl.

48601820S

$25.89

14

Repair kit piston air fork

RP10035T

Unavailable

15

Basevalve cpl.

48602049S5

$159.78

16

adjuster kit screw cap compres

RP10029T

Unavailable

17

Screw cap M51x1.5 cpl

S409100014S0000

$229.07

18

Screw cap M51x1.5 cpl

S409100015S0000

$293.68

19

ISA countersunk head screw M4x

00700007

$1.49

20

Schrader valve M8x1 cmpl.

48601494S

$24.98

21

fork outer tube 49.13x577 dt54

48602096

$257.40

22

Guide bushing set fork 48mm

R14047T

Unavailable

23

"Seal kit 48mm SKF black"

RP10012T

Unavailable

24

X-ring 26,57x3,53 FKM80

04100002

$5.23

25

O-ring 4x1,5 NBR70

50180222

$1.49

26

Piston 33,6x35,4 cpl.

48602135S

$51.98

27

Fork protection ring 59,8mm

S639200001000FA

$2.05

28

ECE sticker

52000361

$7.85

29

Stroke indicator 48mm red

48602007

$4.11

30

Sticker set XACT 5 AER CC 182.

52000235SET

$37.77

31

Nut M6 h5,4 SW10

48602128

$1.49

32

Sticker warning 40x40

52000328

$9.81

33

Spring (19,5) 8-114

48601727

Unavailable

33

Spring (19,5) 12-114

48601588

Unavailable

33

Spring (19,5) 14-114

48602157

Unavailable

33

Spring (19,5) 16-114

48601258

$25.49

33

Spring (19,5) 18-114 reservoir

48601851

Unavailable

33

Spring (19,5) 20-114

48601749

Unavailable

96

Fuchs grease IPR (250g)

T14034

Unavailable

97

special grease AER Fork 400g

00062010053

Unavailable

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

99

Gasket kit air fork

RP10042T

Unavailable
