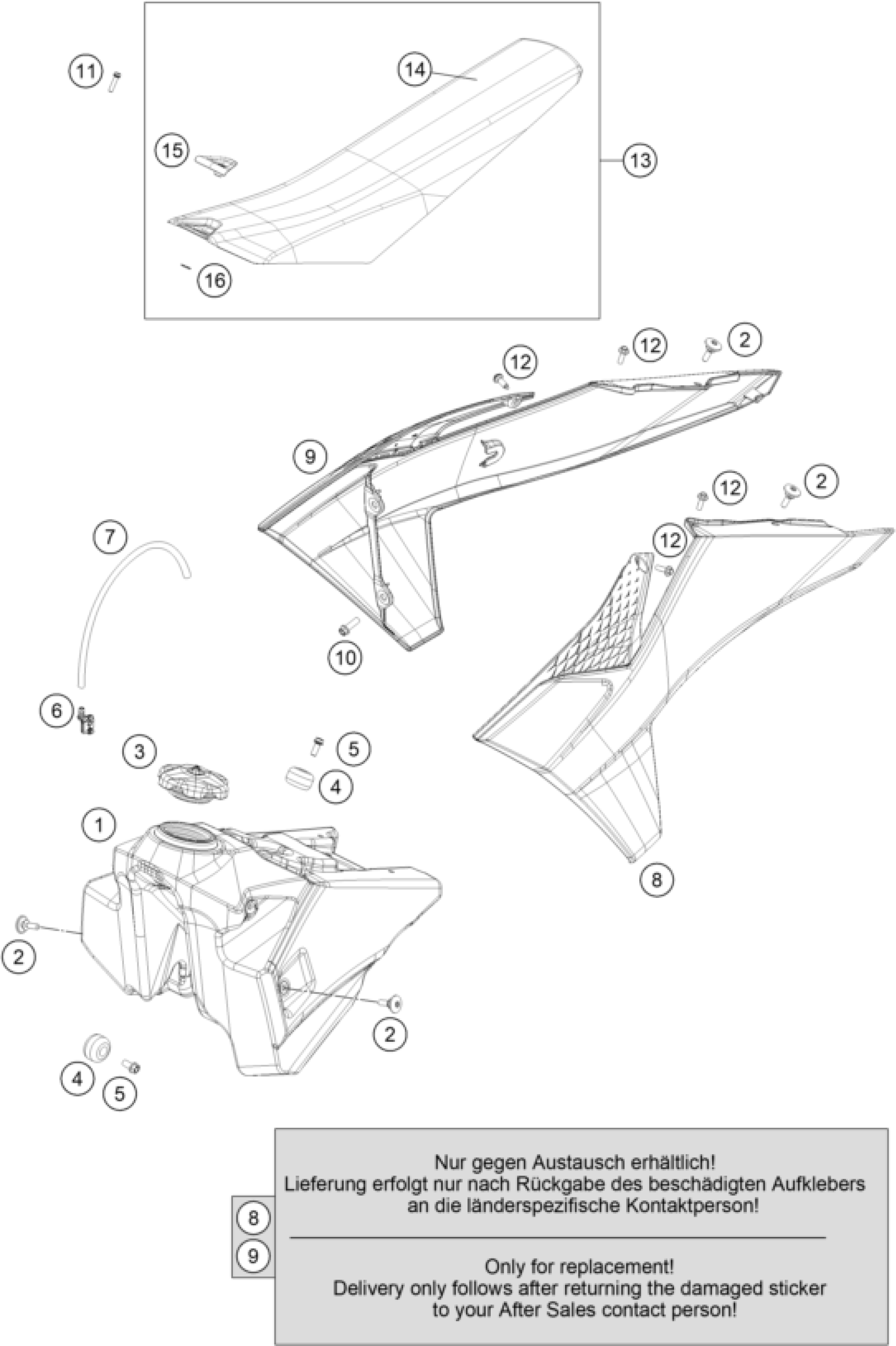

KTM 450 SX-F FACTORY EDITION 2022 TANK, SEAT Diagram

#

Description
Price

1

Fuel tank

A46007113000

$126.78

2

Seat holder screw

79107011000

$3.08

3

Fuel tank cap cmpl.

77707008144C1

$28.23

4

Fuel tank role

A46007014000

$2.05

5

COLLAR SCREW M6X13 ISA30

0026060136

$3.08

6

wire holder / fuel ventilation

79107013010

$1.49

7

PVC-hose 5.6X10X270MM

78007000270

$2.61

8

Spoiler left

A46008050000EBA

$119.20

9

Spoiler right

A46008051000EBA

$115.65

10

HH collar screw M6x12 TX30

0025060126

$3.08

11

HH collar screw M6x25 TX30

0025060256

$3.08

12

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

13

Factory seat

A46007040000EBA

$194.64

14

Seat cover

A46007040050EBA

$74.32

15

Seat installation

A46007046000

$33.56

16

Lock ring DIN471 12x1

0004711200100

$1.49
