Description

Price

1

Lower section of the air filte

A46006001000EB

$39.09

2

Filter box cover right

A46006004000ABA

$72.17

3

Air filter box cover

A46006003000ABA

$80.03

4

Filter box cover left

A46006005000ABA

$64.04

5

Air filter box front part

A46006001010EB

$16.99

7

HH collar screw M6x20 TX30

0025060206

$3.08

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

10

Chain slider bushing

77304066150

$1.49

11

exhaust spacer

79105098000

$5.51

12

HOSE CLAMP 45-65MM

78006027000

$5.23

13

Inlet sleeve cmpl.

A48006026033

$68.99

14

Air filter holding bracket

A46006017000

$9.34

15

Air filter support

A46006016000

$15.89

16

Air filter

A46006015000

$31.27

19

quick release rubber grommet

47106003160

$4.11

20

Bushing 5.1X6.5X4

25006004050

$2.05

21

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

22

Intake snorkel cmpl.

A46006040044

$13.83

23

Splash protection

A46004050000

$11.64

24

EJOT PT screw K50x14

0081050141

$1.49

26

Special screw M8X18 TORX45 SL

79003003000

$3.08

27

special screw M6x12x3

83008000012

$3.08

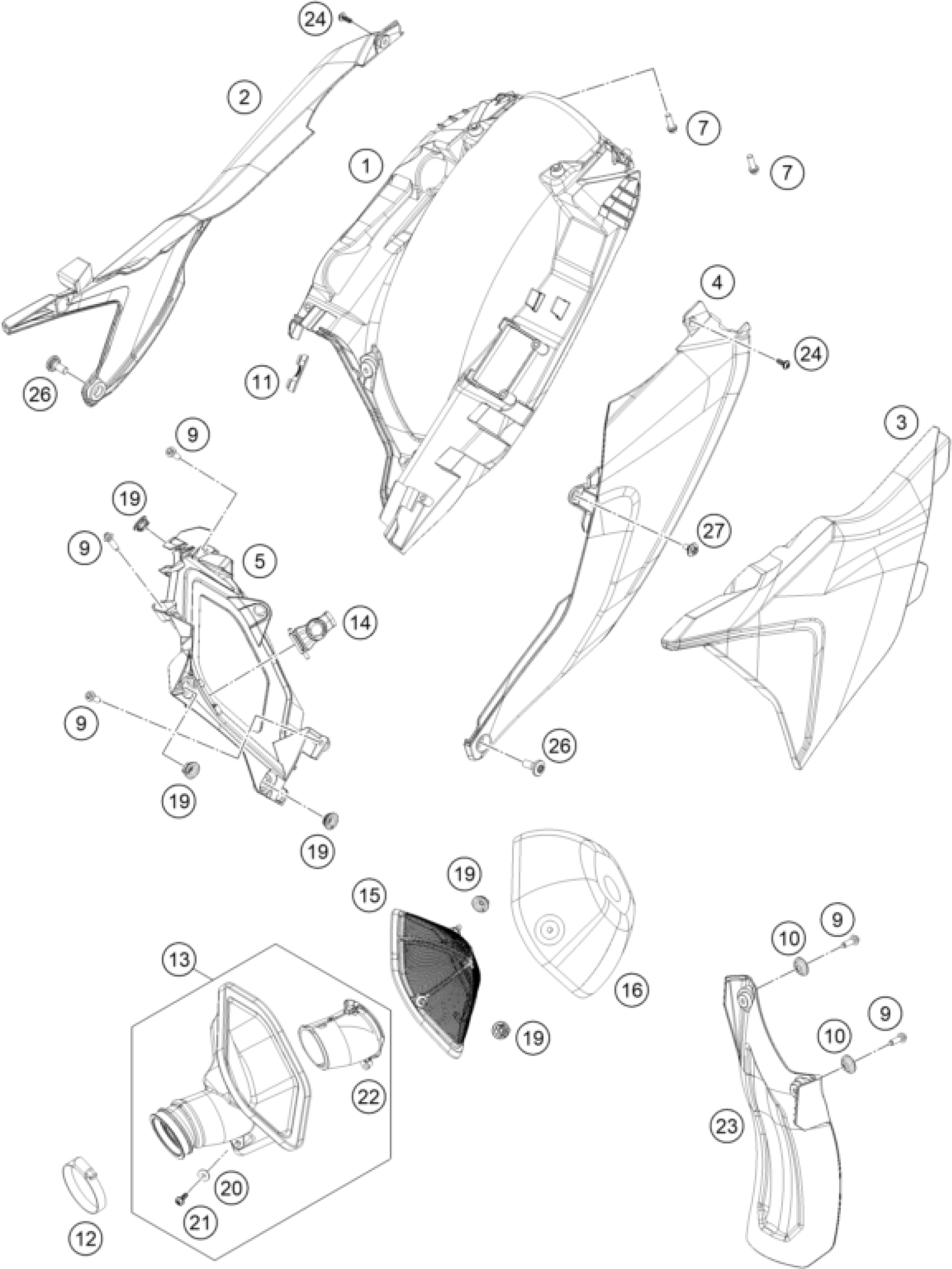

KTM 450 SX-F FACTORY EDITION 2022 AIR FILTER Diagram

Lower section of the air filte

Filter box cover right

Air filter box cover

Filter box cover left

Air filter box front part

HH collar screw M6x20 TX30

SCREW F. PLASTIC K60X20AL SW6

Chain slider bushing

exhaust spacer

HOSE CLAMP 45-65MM

Inlet sleeve cmpl.

Air filter holding bracket

Air filter support

Air filter

quick release rubber grommet

Bushing 5.1X6.5X4

SCREW FOR PLASTIC K50X18 T20

Intake snorkel cmpl.

Splash protection

EJOT PT screw K50x14

Special screw M8X18 TORX45 SL

special screw M6x12x3
