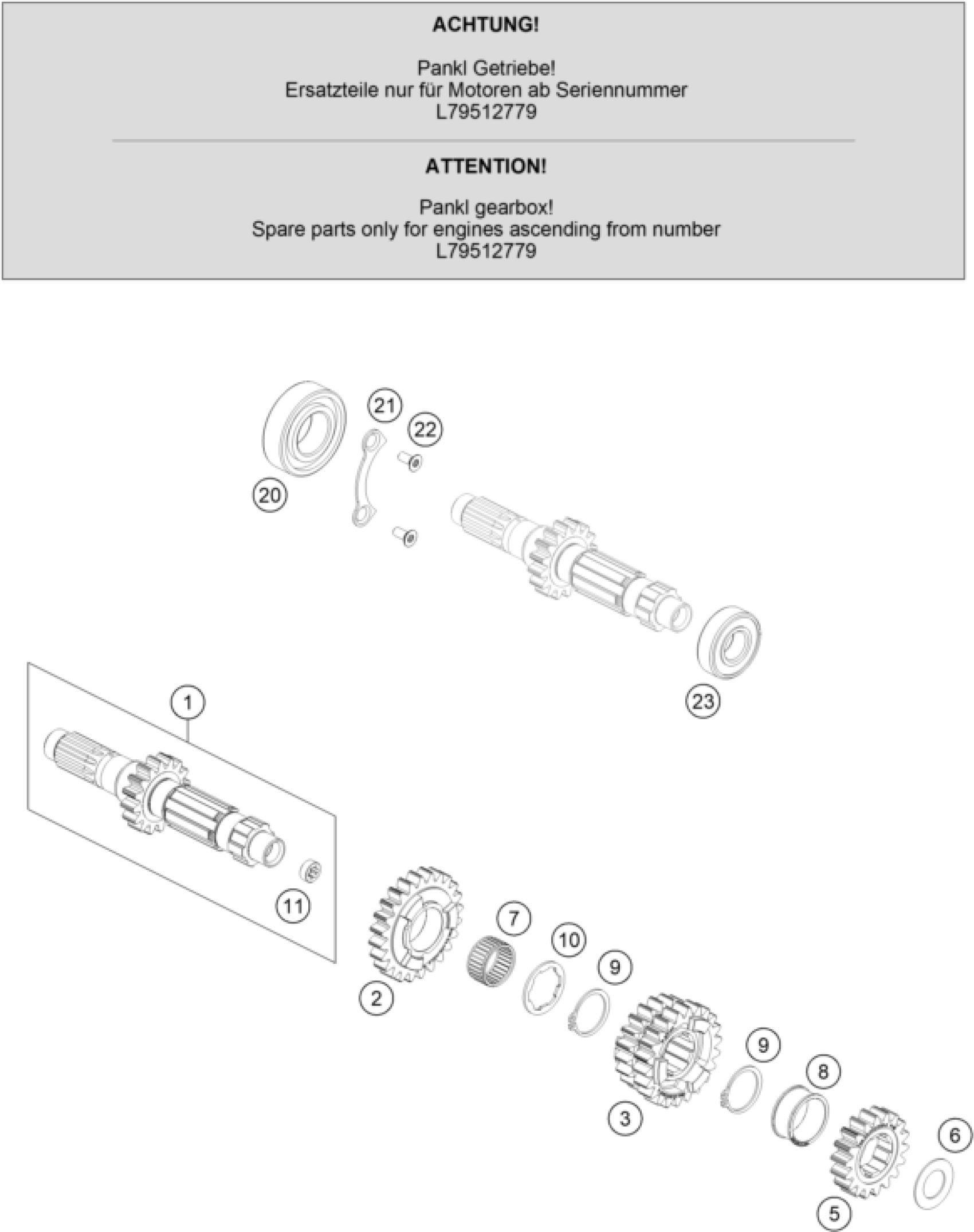

KTM 450 SX-F Factory Edition 2020 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

input shaft

79533001000

$208.31

2

idler gear 5 th.

79533005000

$114.72

3

sliding gear 3./4.

79533003000

$153.33

5

fixed gear 2 nd.

79533002000

$92.46

6

STOP DISC 17,2X30X1

56033030000

$4.11

7

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

8

Spacer

79533032000

$10.56

9

CIRCLIP SW25

0417025000

$3.08

10

thrust wahser

79533034000

$4.11

11

BUSHING

78033001110

$11.40

20

Groove ball bearing 6205 C4 NT

0625062056

$14.02

21

TAB WASHER BEARING MAIN SHAFT

78033032000

$5.51

22

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

23

BALL BEARING 6203 RSH C3

0625062036

$16.17
