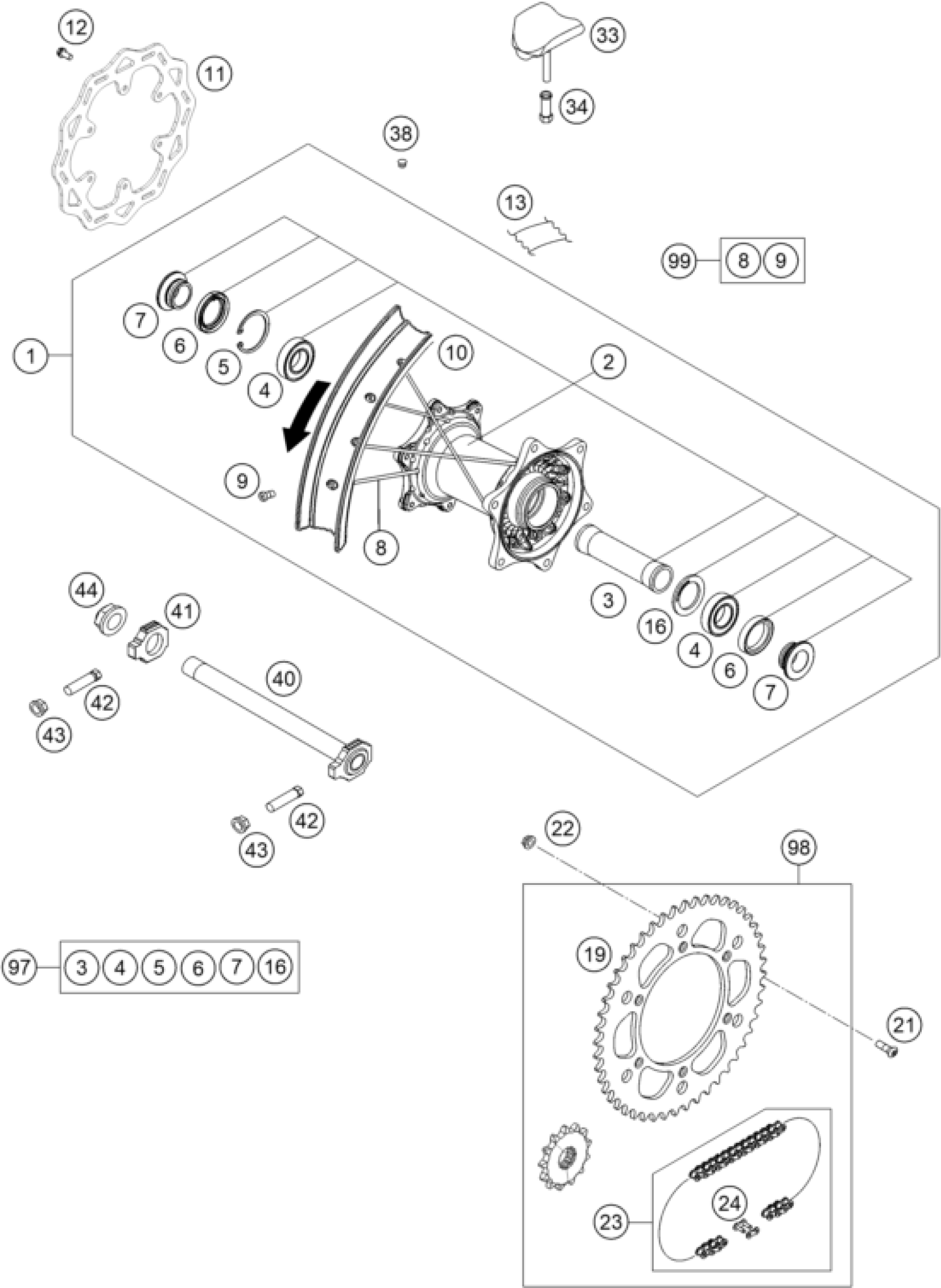

KTM 450 SX-F Factory Edition 2020 REAR WHEEL Diagram

#

Description
Price

1

Factory rear wheel 19#

7901090104404

$414.99

2

Rear wheel hub cpl.

7901091004404

$324.69

3

BEARING DISTANCE TUBE 121,5MM

77710011000

$22.34

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

7

DISTANCE BUSHING REAR WHEEL

77710016000

$31.97

8

SPOKE M4,5X205-19'' BLACK 1

7901007120530

$5.51

9

Spoke nipple M4,5 orange

7910907200004S

$2.54

10

Rim 2,15x19" DID

2501007000030A

$338.56

11

BRAKE DISC REAR 220MM 16

79010060000

$129.12

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

13

Tube protector 18" and 19"

50310073200

$13.27

16

DISTANCE RING

77710015000

$3.08

19

SPROCKET 48-T

7771095104804

Unavailable

19

SPROCKET 50-T

7771095105004

Unavailable

19

SPROCKET 52-T

7771095105204

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

23

CHAIN 520 GPXV GOLD

78910065118

$158.01

24

CONNECTING LINK F. 78910065118

78910066000

$7.85

33

RIM LOCK 2,15''

78110090100

$20.56

34

NUT FOR WHEEL HOLDER

77110090050

$5.23

38

PLUG FOR RIM

55003135000

Unavailable

40

WHEEL SPINDLE CPL. '13

77710085044

$94.80

41

CHAIN TENSIONER R/S

77710084000

$19.72

42

screw M10x1.25x50 WS10

50304040100

$5.23

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

44

Collar nut M25X1.5 WS=32 05

61010086000

$17.20

97

REAR WHEEL REP. KIT

77710015010

Unavailable

98

Drivetrain kit FC 13Z/49Z

00050002110

Unavailable

99

Spoke kit back 19#

00050000987S

Unavailable

19

SPROCKET 49-T

7771095104904

Unavailable
